7 DS-086 User Manual
Chapter 2 Hardware Configuration
2.1.4 COM Connector
DS-086 Series provides one D-sub 9-pin connectors serial communication interface
port. The ports support RS-232 communications.

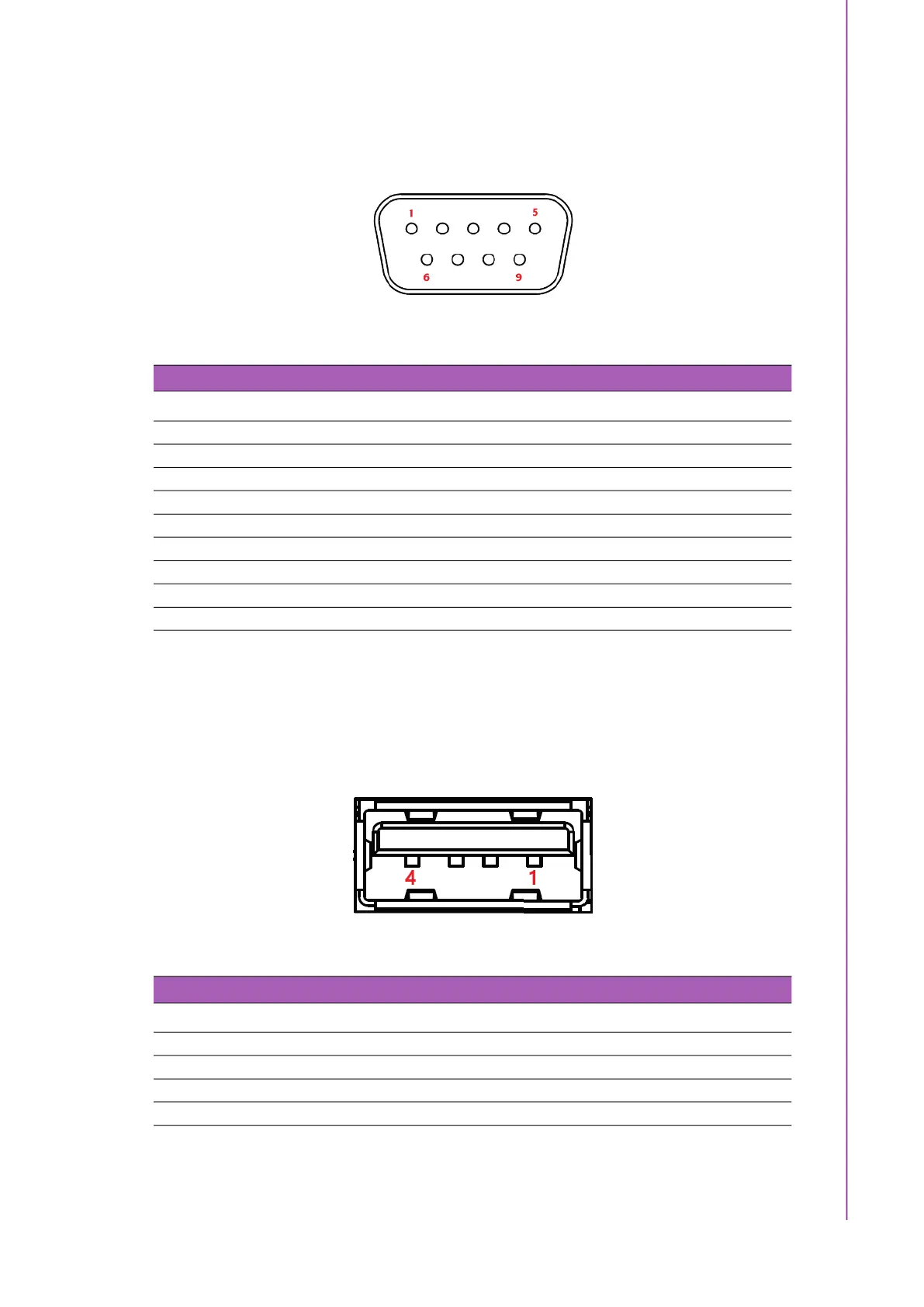

Figure 2.6 DB9 connector
2.1.5 USB Connector
DS-086 supports 2 x USB 3.2 Gen1, and 2 x USB 2.0 interfaces. The USB interfaces
complies with USB UHCI, Rev. 3.0 standards. Please refer to this pin assignments.
USB 3.0 connectors contain legacy pins to interface with USB 2.0 devices, and a new
set of pins for USB 3.0 connectivity.
Figure 2.7 USB 2.0 Connector
Table 2.1: COM Port Pin Assignments
Pin Signal
1 --
2 RxD
3 TxD
4 ---
5 GND
6 --
7 --
8 --
9 --
Table 2.2: USB Port Pin Assignments
Pin Signal
1 VCC
2 USB Data-
3 USB Data+
4 GND
