SmartFlex SR310
5.8 Description of the rear panel
The rear panel contains two holders for SIM cards (SIM1 and SIM2), a holder for microSD
card (SD) and an RST button used to restore the default configuration and reboot the router.
5.9 Description of the front panel
On the front panel is the following:
Caption Connector Description
PWR 2-pin Connector for the power supply
ETH0 RJ45 Connector for connection into the computer network, PoE (only
for PoE PSE)
ETH1 RJ45 Connector for connection into the computer network, PoE (only
for PoE PSE)
ANT SMA Connector for main antenna
DIV SMA Connector for diversity antenna
WiFi R-SMA Connector for WiFi antenna (only for versions with WiFi
module!)
USB USB-A 2.0
Host
Connector for connection of USB devices to the router. Sup-
ports devices with PL-2303 and FTDI USB/RS232 converters.
I/O 6-pin Connector for connection of the binary inputs and output
Table 9: Front panel description

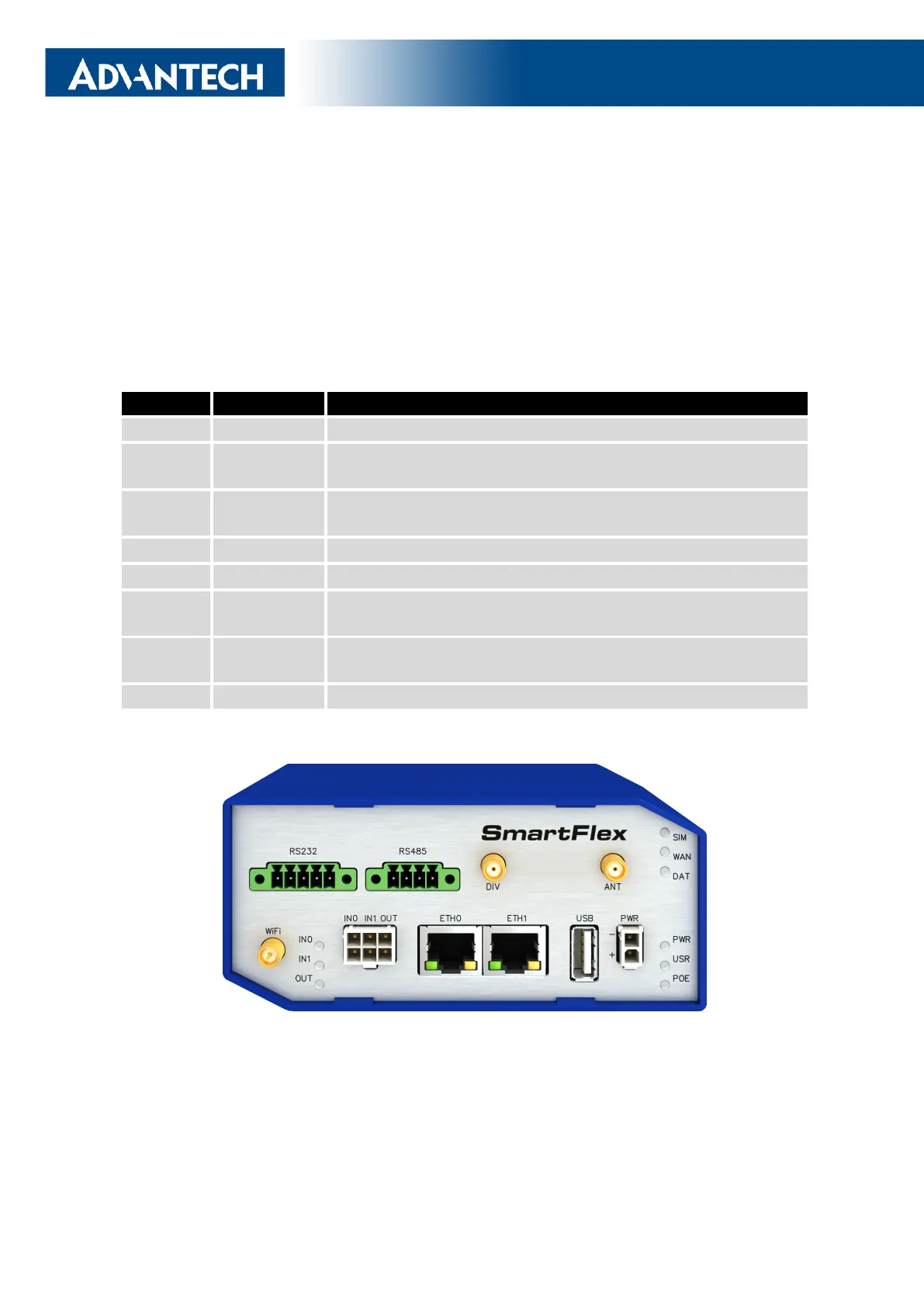

Figure 26: SmartFlex front panel
17
