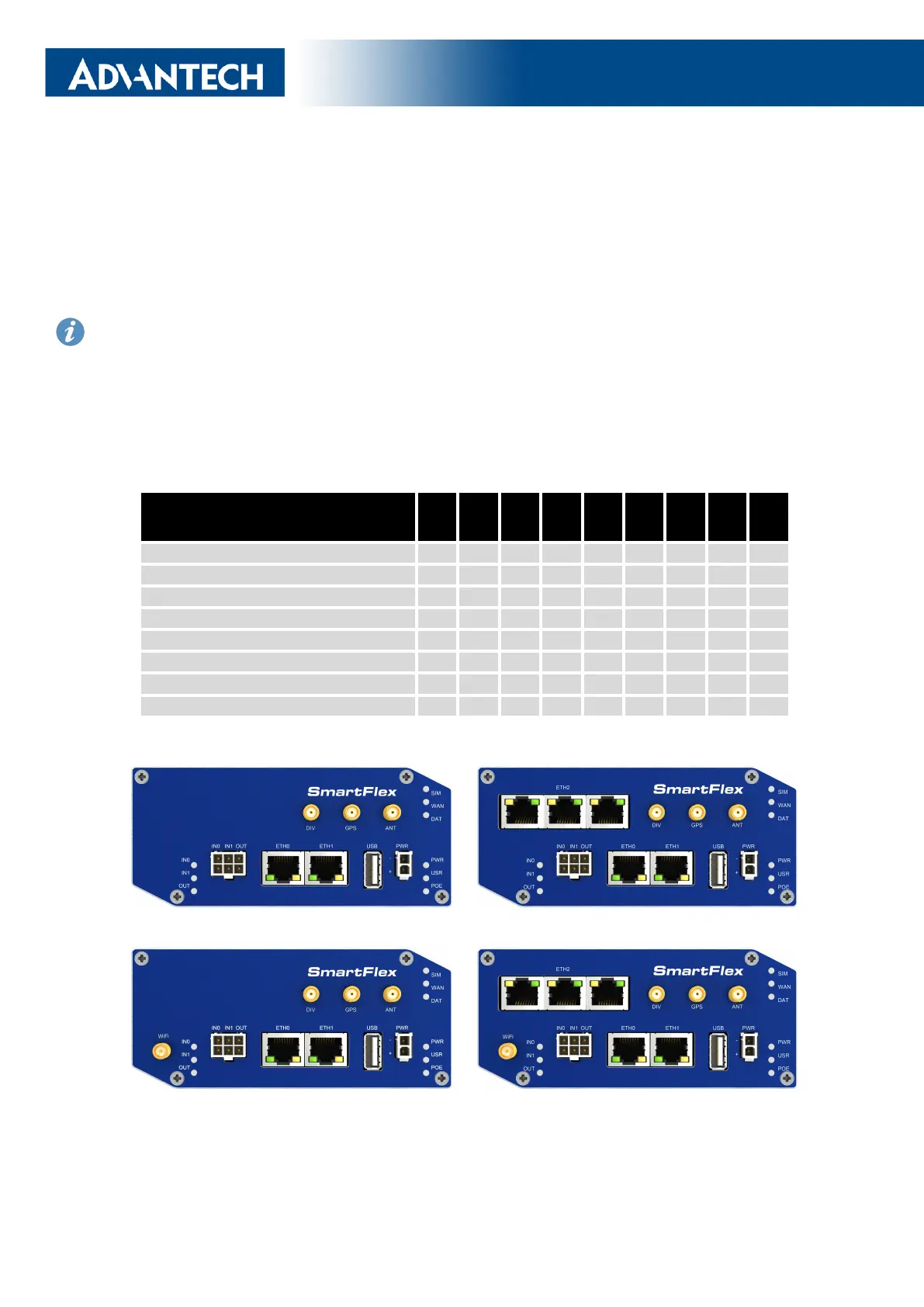

SmartFlex SR308
5. Router Design
5.1 Router versions
Check with your local Advantech sales representative for available options and HW configura-
tions.
SmartFlex SR308 router is supplied in the following versions (see table below). All versions
are available in plastic or metal box according to customer requirements. All versions are
available with PoE PD (Power over Ethernet – powered device) so you can power the router
from both ETH0 and ETH1 interfaces, or with PoE PSE (power source equipment) so you can
power other devices by the router.
Router versions
SIM
BIN
BOUT
USB
SD
ETH
WiFi
232
485
Basic version 2 x 2 x 1 x 1 x 1 x 2 x
Basic version with WiFi 2 x 2 x 1 x 1 x 1 x 2 x 1 x
Version with SWITCH board 2 x 2 x 1 x 1 x 1 x 5 x
Version with SWITCH board & WiFi 2 x 2 x 1 x 1 x 1 x 5 x 1 x
Version with RS232-RS485/422 board 2 x 2 x 1 x 1 x 1 x 2 x 1 x 1 x
Version with RS232-RS485/422 & WiFi 2 x 2 x 1 x 1 x 1 x 2 x 1 x 1 x 1 x
Version with RS232-RS485-ETH board 2 x 2 x 1 x 1 x 1 x 3 x 1 x 1 x
Version with RS232-RS485-ETH & WiFi 2 x 2 x 1 x 1 x 1 x 3 x 1 x 1 x 1 x
Table 1: Router versions
Figure 6: Basic version (metal)
Figure 7: Basic version with WiFi (metal)
Figure 8: Version SWITCH (metal)
Figure 9: Version SWITCH and WiFi (metal)
10
