SmartFlex SR304
5.9.6 Ethernet Ports (ETH0 and ETH1)
The panel socket RJ45 is used for this interface. The isolation barrier of the Ethernet signal
ports against the ground is 1500 V.
Pin 10base-T & 100base-T PoE (Mode B)
1 Tx+ (Transmit Data+) —
2 Tx- (Transmit Data-) —
3 Rx+ (Receive Data+) —
4 — PoE + (positive pole)
5 — PoE + (positive pole)
6 Rx- (Receive Data-) —
7 — PoE - (negative pole)
8 — PoE - (negative pole)
Table 13: Ethernet connector pinout

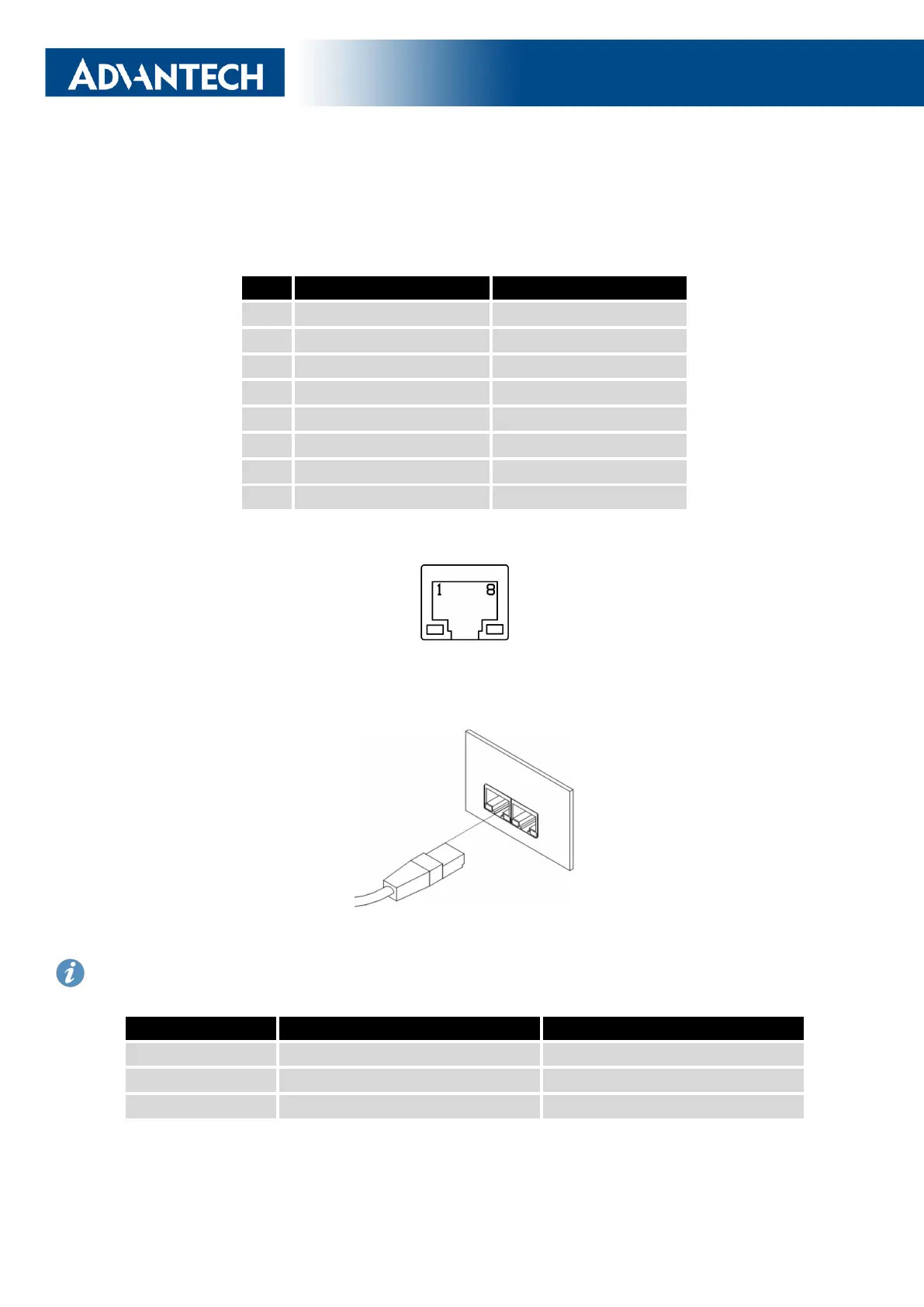

Figure 33: Ethernet connector
The crossover UTP cable (Ethernet cable) plugs into the RJ45 connector labeled as ETH0
or ETH1 (see the figure below).
Figure 34: Connection of Ethernet cable
The insulation strength of Ethernet ports from each other and from the rest of the router
(grounding) is dependent on the router version:
Router Version Insul. Strength from Router Insul. Strength between Ports
Without PoE 1.5 kV 1.5 kV
PoE PD 1.5 kV none
PoE PSE none none
Table 14: Insulation strength of Ethernet ports
