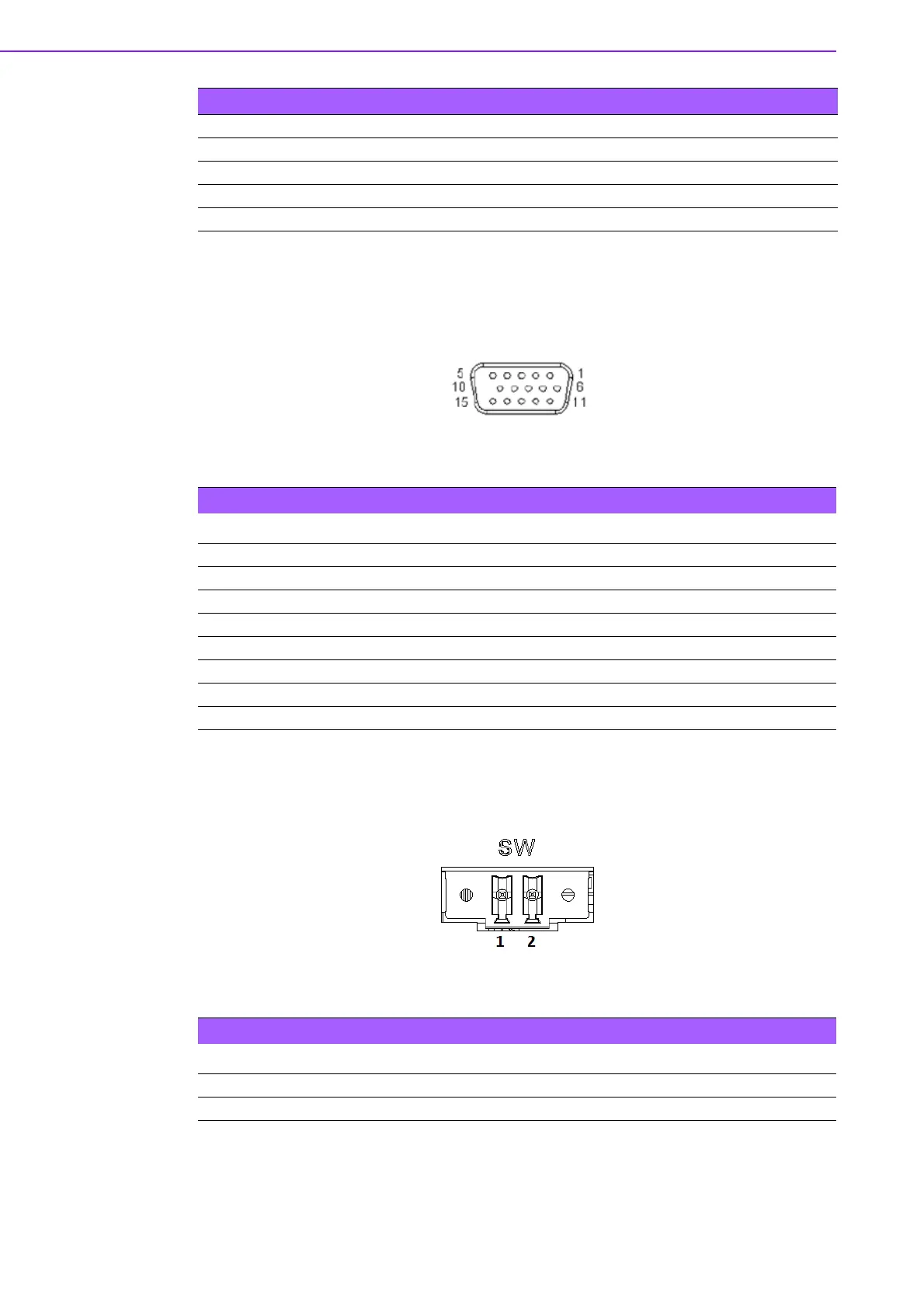

ARK-3520L User Manual 18
2.3.3.7 VGA Connector
ARK-3520 provides an integrated 15-pin female VGA digital video interface, which
supports up to 1920 x 1200 @ 60 Hz. Please refer to Table 2.10 for its pin assign-
ments.
Figure 2.13 VGA Connector
2.3.3.8 Power Switch Connector
ARK-3520L provides an additional interface for connecting cables to switch on/off the
power.
Figure 2.14 Power Switch
1 +5V 2 USB_data-
3 USB_data+ 4 GND
5 SSRX- 6 SSRX+
7 GND 8 SSTX-
9 SSTX+
Table 2.8: USB 3.0 Connector Pin Assignments
Table 2.9: VGA Connector Pin Assignments
Pin Signal Name Pin Signal Name
1 Red 2 Green
3 Blue 4 NC
5 GND 6 GND
7 GND 8 GND
9NC 10 GND
11 NC 12 DDAT
13 H-SYNC 14 V-SYNC
15 DCLK
Table 2.10: Power Switch Connector Pin Assignments
Pin Signal Name
1 GND
2 Power switch
