13 ARK-1222 User Manual
Chapter 2 Jumpers and Connectors
2.3.3 GPIO
The ARK-1222 provides a D-sub 9 interface port with GPIO. Please refer to Table 2.9
for pin assignments.
2.3.4 Ethernet Connector (2.5G LAN)
The ARK-1222 is equipped with up to 2 x Ethernet controllers that are fully compliant
with IEEE 802.3u 10/100/1000/2500 Mbps CSMA/CD standards. These Ethernet
ports provide a standard RJ-45 jack connector with LED indicators on the front side
to show Active/Link status (Green LED on the right) and Speed status (Yellow/Green
LED on the left).

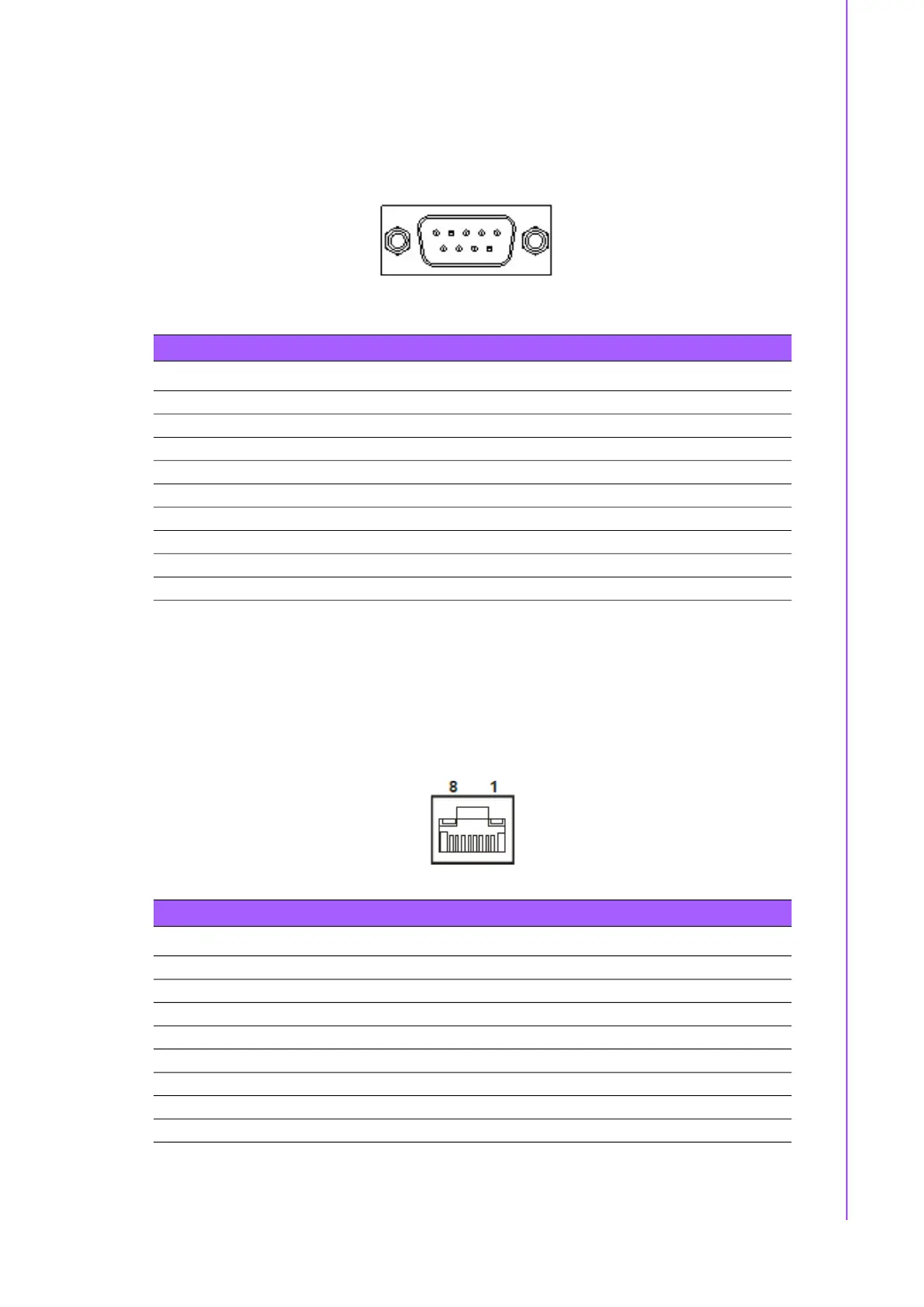

Table 2.9: GPIO / CAN Bus / Remote Connector Pin Assignments
Pin Signal Definition
1 GPIO0
2 GPIO1
3 GPIO2
4 GPIO3
5 GPIO4
6 GPIO5
7 GPIO6
8 GPIO7
9 GND
1 2 3 4 5
6 7 8 9
Table 2.10: Ethernet Connector Pin Assignments
Pin 10/100/1000/2500 BaseT Signal Name
1 TX+
2 TX-
3 RX+
4 MDI2+
5 MDI2-
6 RX-
7 MDI3+
8 MDI3-
