5 ARK-1125 User Manual
Chapter 1 General Introduction
– LAN Connectors: Phone Jack RJ-45 8P 90D (F)
Audio:
– Audio Codec: ALC888S-VD2-GR
– Compliant with HD Audio specifications
– Supports 16-/20-/24-bit DAC and 16-/20-/24-bit ADC resolution
– Supports: Line-Out, Mic-In
Battery Backup: Battery 3V/210 mAh with wire x 1
TPM 2.0: SLB9672 XU 2.0 FW15.22
1.3.2 SUSI 4.0
SUSI API
Sequence control supported
GPIO 8-bit programmable DIO
Watchdog timer: multi-level WDT
Programmable 1-255 sec/min
Hardware monitor CPU temperature /input current / input voltage
System information running HR / boot record
1.4 Mechanical Specifications
1.4.1 ARK-1125H Dimensions
133 x 46.4 x 94.2 mm / 5.24 x 1.83 x 3.71 in (W x H x D)

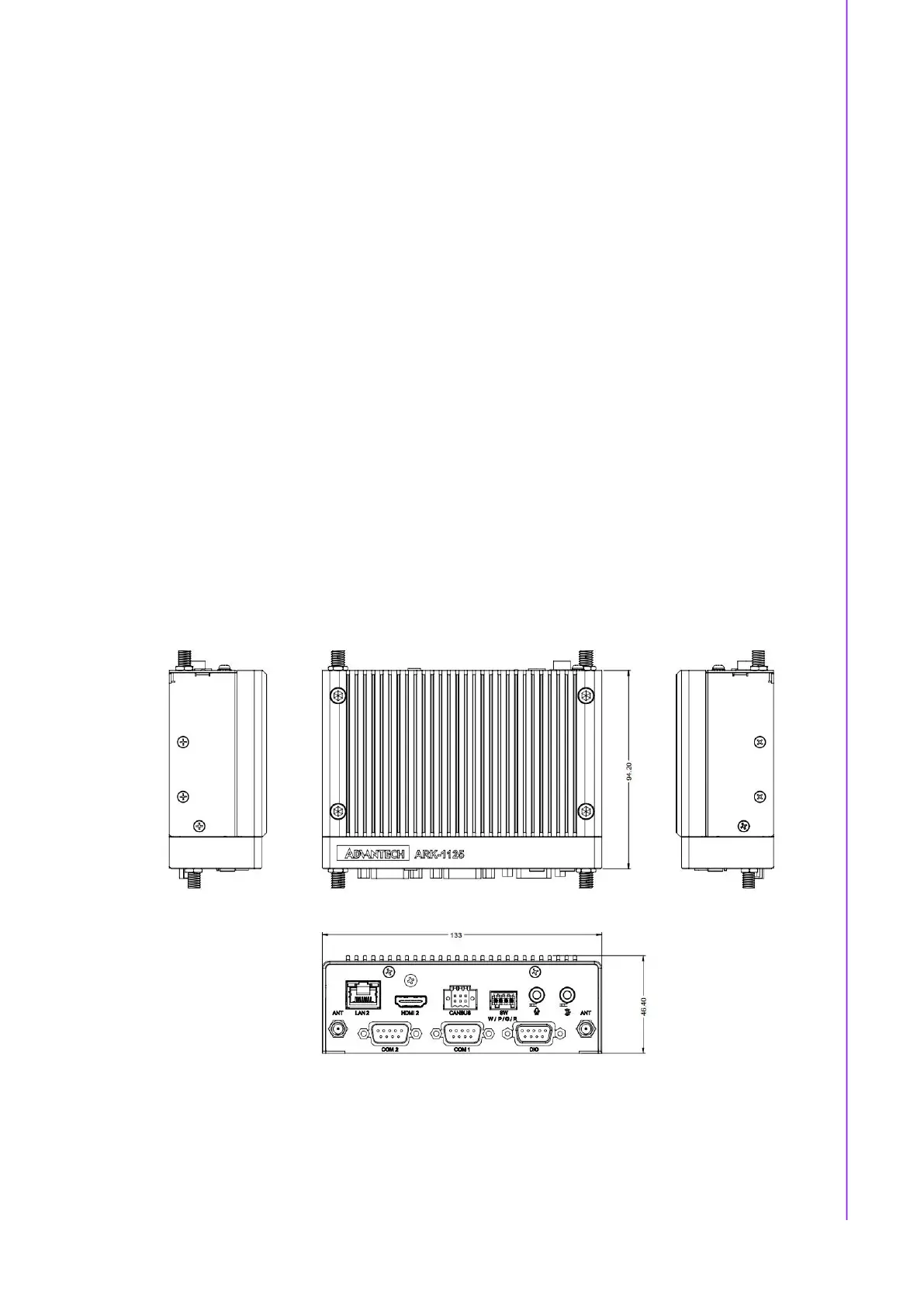

Figure 1.1 ARK-1125H Mechanical Dimensions
