3.1 Display
3.1.1 LVDS
If you need the LVDS + DP output, you can use the following tool to change it.
# /tools/display/emmcChangeToLVDS.sh
or
# /tools/display/ufsChangeToLVDS.sh

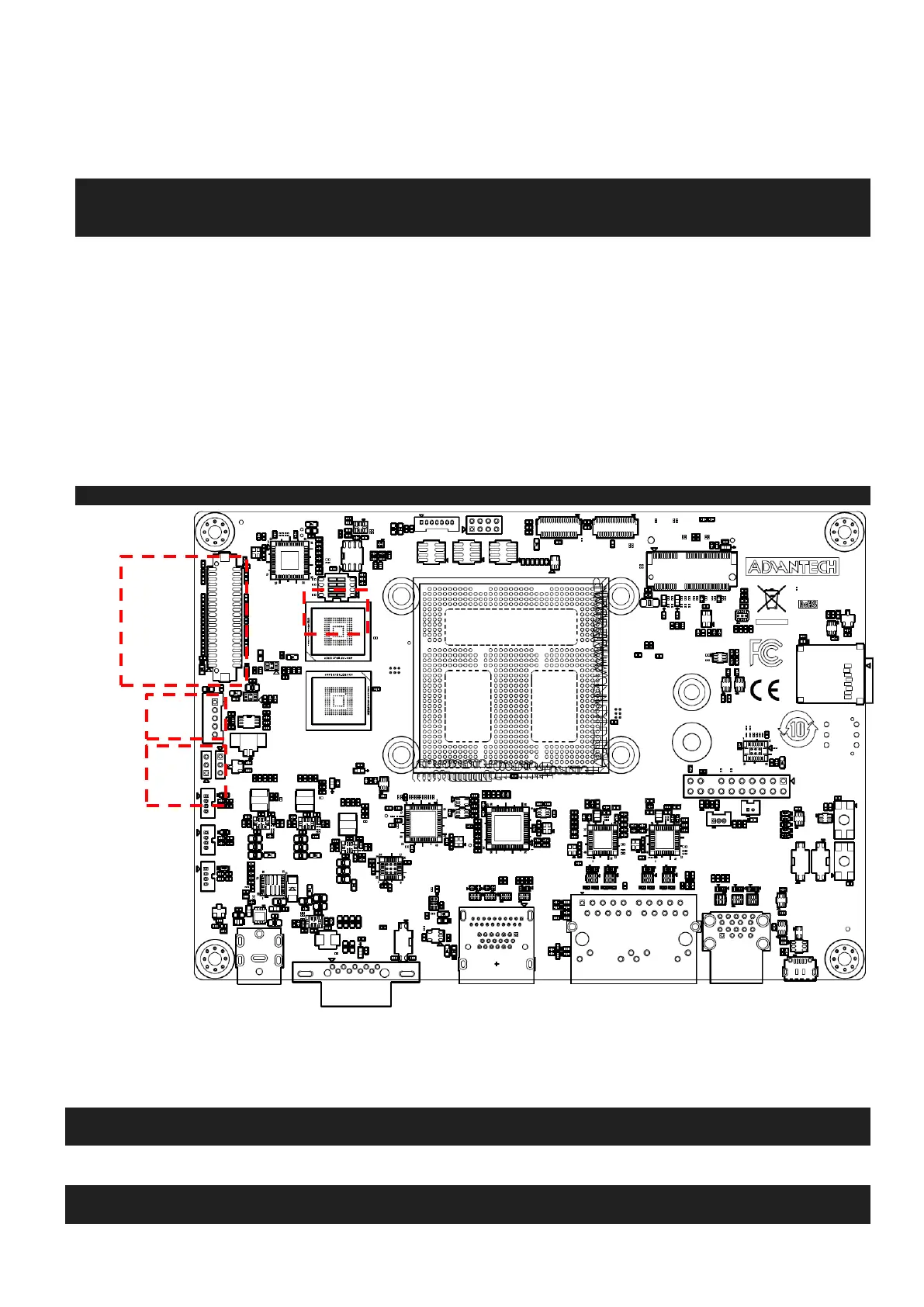

It can support the following LVDS panels:
7" AUO G070VW01 V1 single channel (VDD:3.3V, Backlight Power:12V)
• SW6 ( 1-on, 2-on, 3-on, 4-on )
• LVDS_VDD_SLT ( Select 1,2 ): 3.3V
• LVDS_BKL_SLT ( Select 2,3 ): 12.3V
21.5" AUO G215HVN01.0 dual channel (VDD:5V, Backlight Power:12V)
• SW6 ( 1-on, 2-off, 3-off, 4-off )
• LVDS_VDD_SLT ( Select 2,3 ): 5V
• LVDS_BKL_SLT ( Select 2,3 ): 12.3V
# /tools/display/changeToLVDS.sh
3.1.2 HDMI
It can support the 4K@30, 1080P@60, 720P@60 and 480P@60 timing. And it can also
support the Dynamic Resolution Switch.
• Manually Switch to 4K@30
# echo 3840 2160 30 > /sys/bus/i2c/drivers/lt9611/2-002b/edid_mode
# systemctl restart init_display.service
• Manually Switch to 1080P@60
# echo 1920 1080 60 > /sys/bus/i2c/drivers/lt9611/2-002b/edid_mode
# systemctl restart init_display.service
