Connect the Power Source:

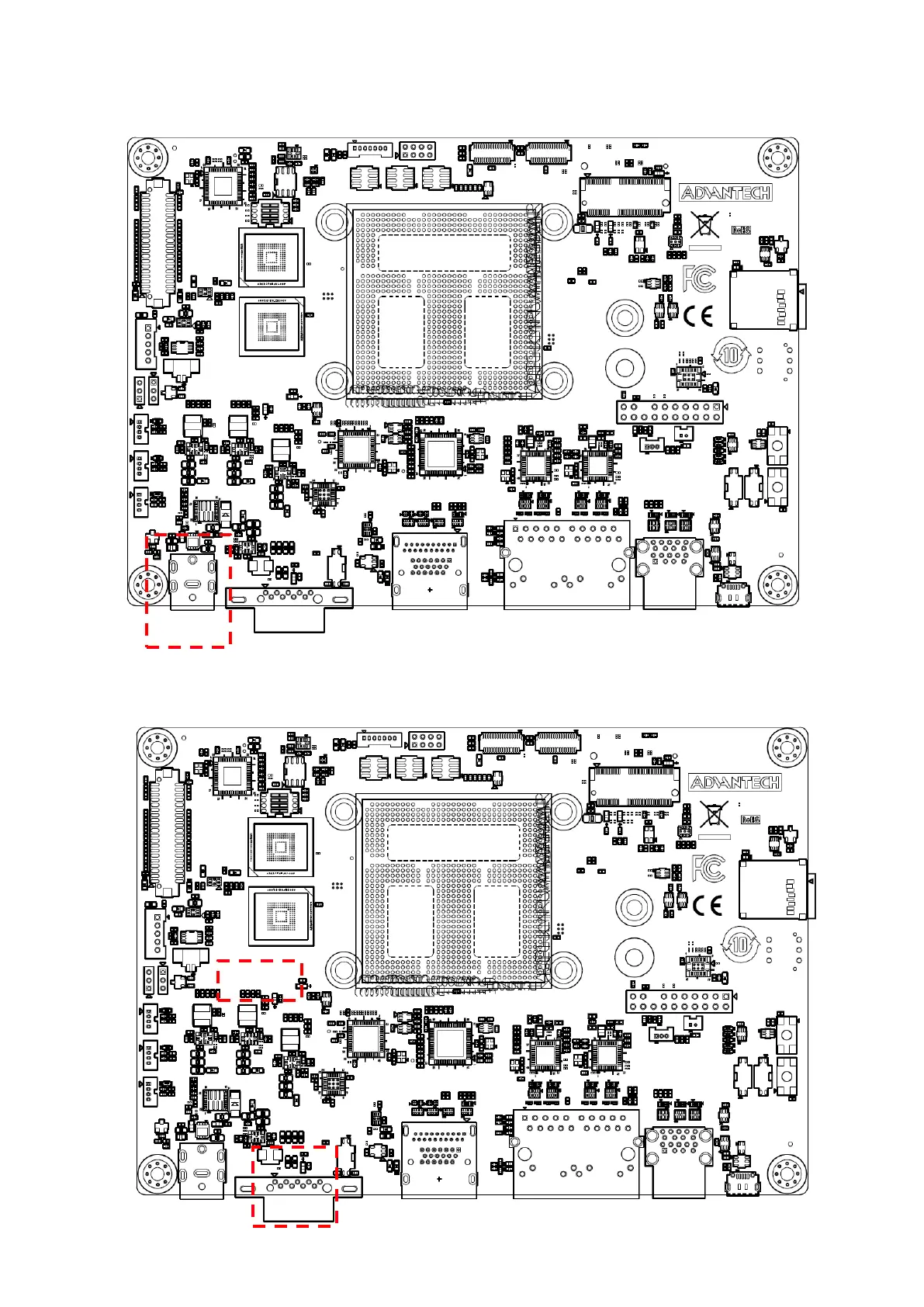

AOM-2721’s power input is 12VDC. The power interface’s location is DCIN1. Please
choose a suitable adapter and power cord to connect the board (please refer to P/Ns
on datasheet and Optional Accessories of this manual) as shown in Figure 2.25.
2. When switching on the power, the green LED indicator on BOT side of the board will light up to
indicate that the board has booted up normally.
DP &
DC-In
2 LEDs
1 LED
