51 AMAX-5070 User Manual
Chapter 4 Coupler & SubDevice Config
The tree in Channel Information can be expanded to show more detailed information
(Figure 4.17).

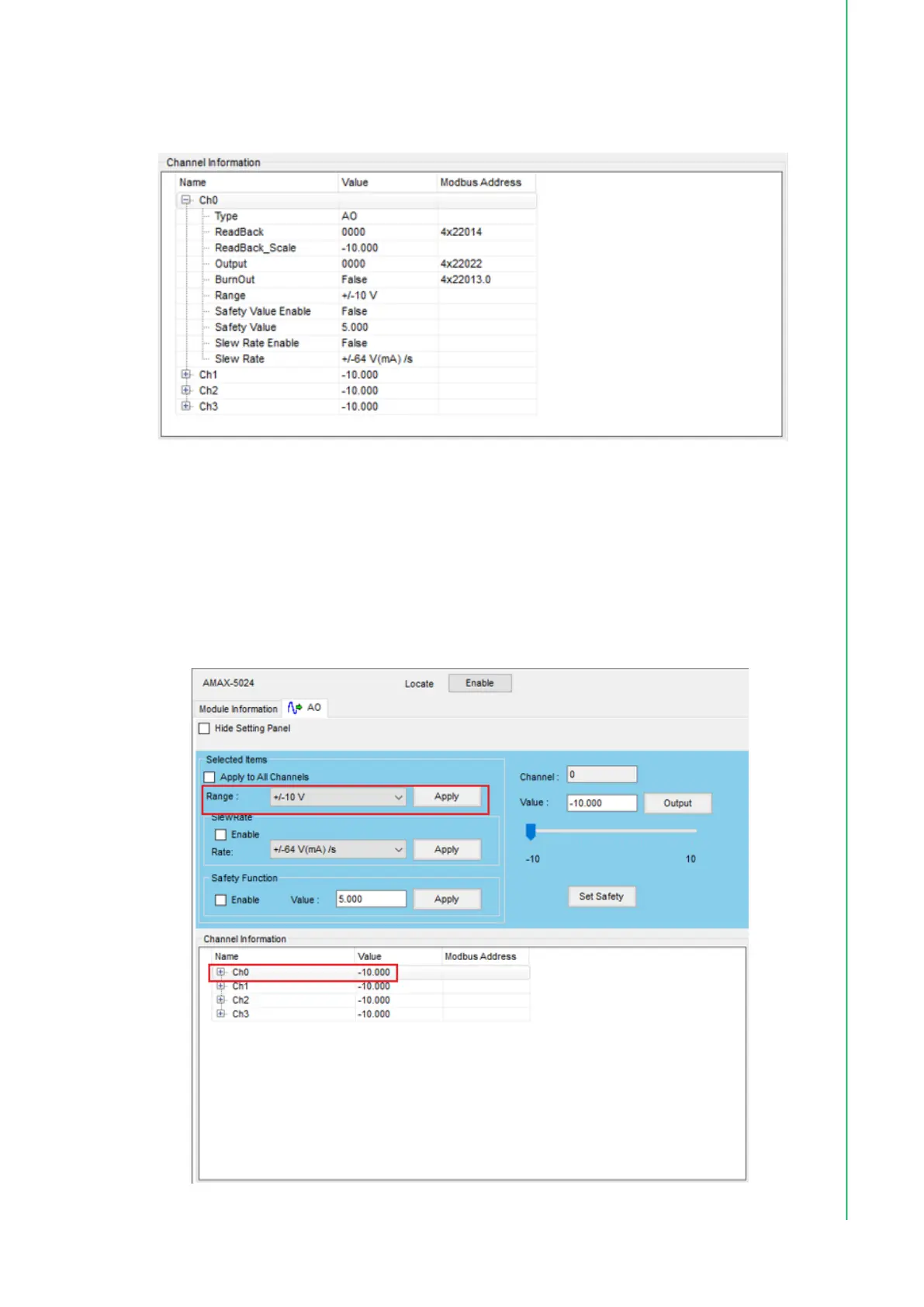

Figure 4.17 Analogue Output Value and Modbus Address Information
4.2.3.2 Configure Analogue Output
Channel information can be configured in different ranges. For example, if we want to
change the channel 0 input range (Figure 4.18).
1. Expand the channel's tree and the selected Items will be shown on the blue
area.
2. Select the ranges you want and click the Apply button. Users also can apply the
setting to all channels.
Figure 4.18 Expand the Tree and Change the AMAX-5024 Range
