31 AMAX-5070 User Manual
Chapter 3 System Configuration
3.4 Modbus Address Setting
To adjust the Fixed Mode or Flexible Mode and obtain the corresponding Modbus
addresses, click on Modbus Mapping.
For the AMAX-5070 device, the Modbus client address should always be set to
Group 0 (G0), and it is not affected by the rotary switch on the device (as shown in
Figure 3.21). But the rotary switch value will show on MainDevice.
However, for the AMAX-5074 device, both the Advantech Utility Group ID and Mod-
bus client Device ID will automatically synchronize with the value set on the rotary
switch (as indicated in Table 3.1). It's important to note that the AMAX-5079 device
does not occupy a Modbus address (as depicted in Figure 3.22).

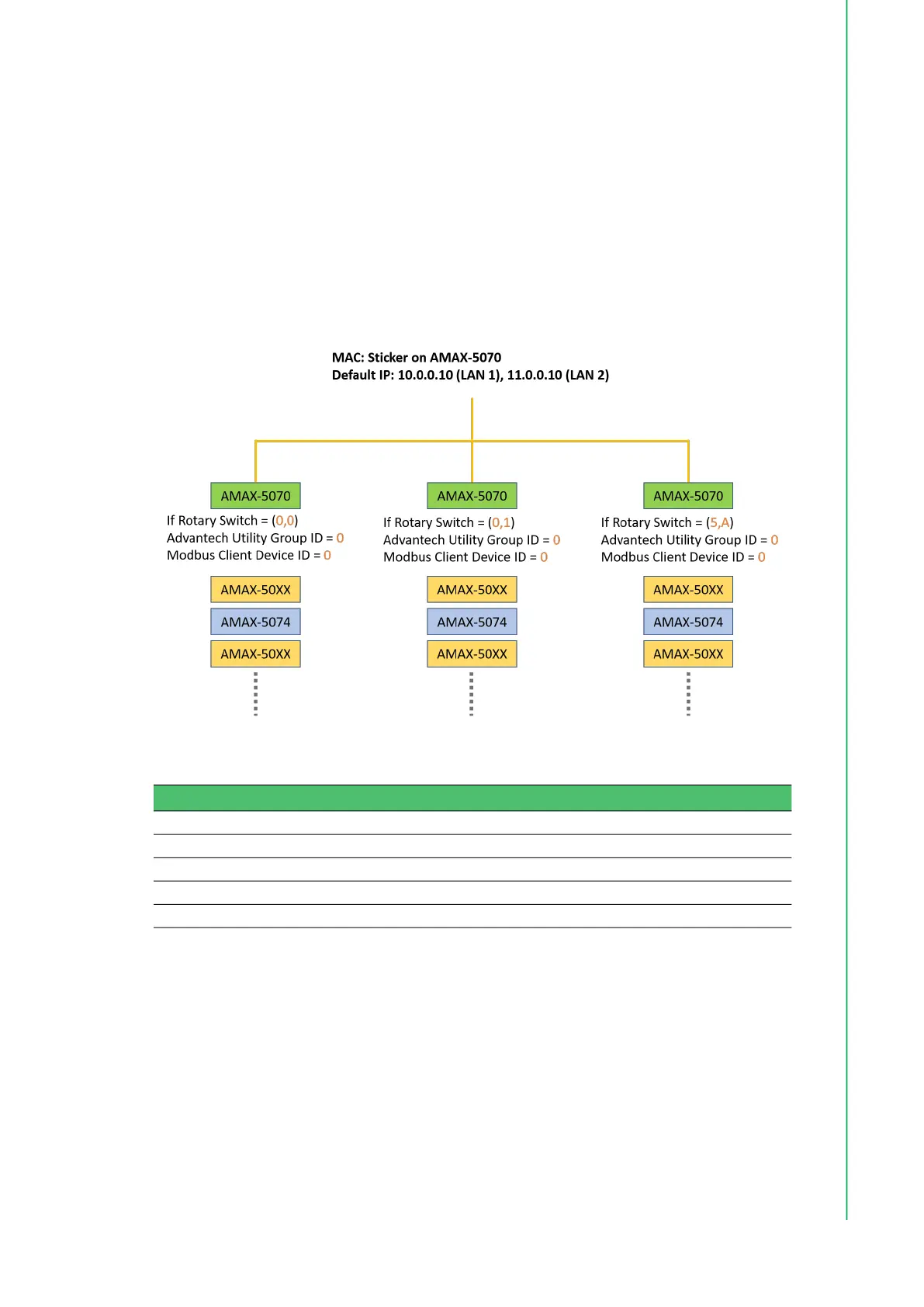

Figure 3.21 AMAX-5070 Modbus Client Address and Rotary Switch
[1]: (SW2, SW1) = (0, A), then ID = 0x16 + 10x1 = 10
Table 3.1: AMAX-5074 Group ID and Modbus Client Device ID
AMAX-5074 Rotary Switch [1] Advantech Utility Group ID Modbus Client Device ID
(0, 0) 0 0
(0, 1) 1 1
(0, A) 10 10
(4, C) 76 76
