29 AMAX-5070 User Manual
Chapter 3 System Configuration
It informs the user of the upper time limit that may be consumed (Figure 3.19).

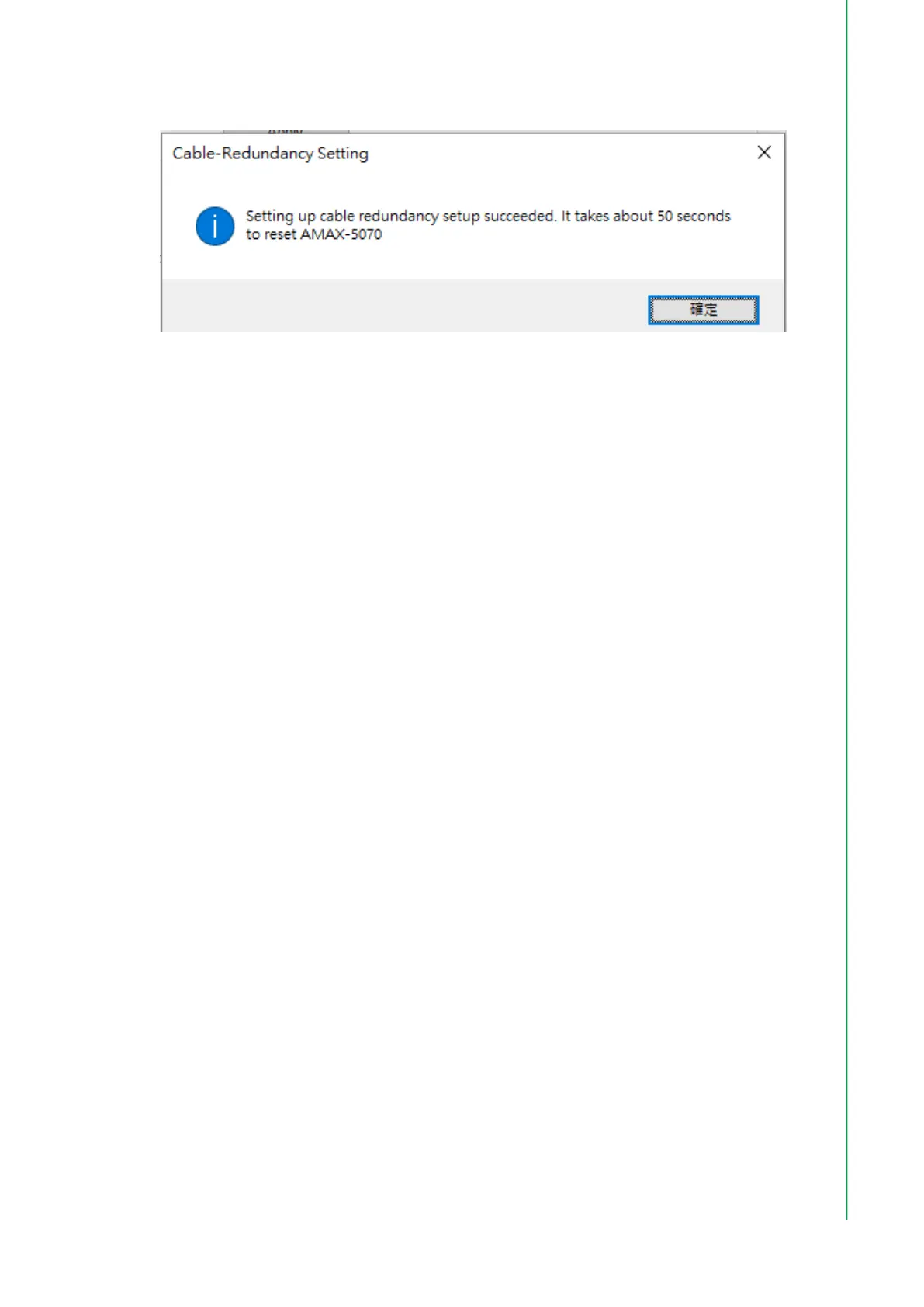

Figure 3.19 Cable Redundancy Notification for Estimated Reset Time
When Cable-Redundancy has been modified to Disable, the notification will remind
users to remove the LAN 2 wiring.
3.3.6 Obtaining the Topology Status
This contains several bits of information (Figure 3.20):
1. Total SubDevice Count: The total number of SubDevices
2. Ring0 SubDevice Count: The number of SubDevices detected through Ethernet
port1
3. Ring1 SubDevice Count: The number of SubDevices detected through Ethernet
port2 (is only enabled in cable-redundancy if it has been set to “Enable”, other-
wise the value would be set to 0.
4. Scan Busy: 0 for non-busy, 1 for busy (If Scan Busy value =1, AMAX-5070 inter-
nal system is working with each SubDevice for re-establishes the topology. At
this time the SDO command doesn’t work, only the PDO data can operate).
