AMAX-5070 User Manual 20
3.1.2 Searching for the EtherCAT SubDevice
Clicking on the Coupler will display the current conditions and topology of the SubDe-
vices. In the first layer, you will find the AMAX-5070 and AMAX-5074 device. In the
second layer, you will find SubDevices such as AMAX-5024 and AMAX-5051. These
SubDevices are positioned under either AMAX-5074 or AMAX-5070 (as shown in
Figure 3.3). This hierarchical arrangement allows for a clear representation of the
connectivity and placement of the SubDevices within the system.
The label "G0" after the Coupler name signifies Group 0. This number, representing
the Group ID, will be automatically synchronized according to the rotary switch on the
Coupler. For instance, if the rotary switch on an AMAX-5074 Coupler is set to (x16,
x1)=(A,1), the Group ID will be set to G161.
However, in the case of AMAX-5070, the Group ID is always set to G0 (Group ID 0)
and is not affected by the rotary switch on the Coupler. The Group ID for AMAX-5070
remains fixed and does not change based on the rotary switch position.
The label "S0" after the SubDevice name indicates that it is the first module con-
nected in the whole system. In Figure 3.3, the first module is AMAX-5056, which has
been assigned the label S0. The second module, which is an AMAX-5018, has been
assigned the label S1. The third module, AMAX-5018, has been assigned the label
S2.
If a module is not currently supported or recognized, it will be marked as Unknown.
This typically occurs when the module is not compatible with the system or when its
information is not available or updated in the current configuration.

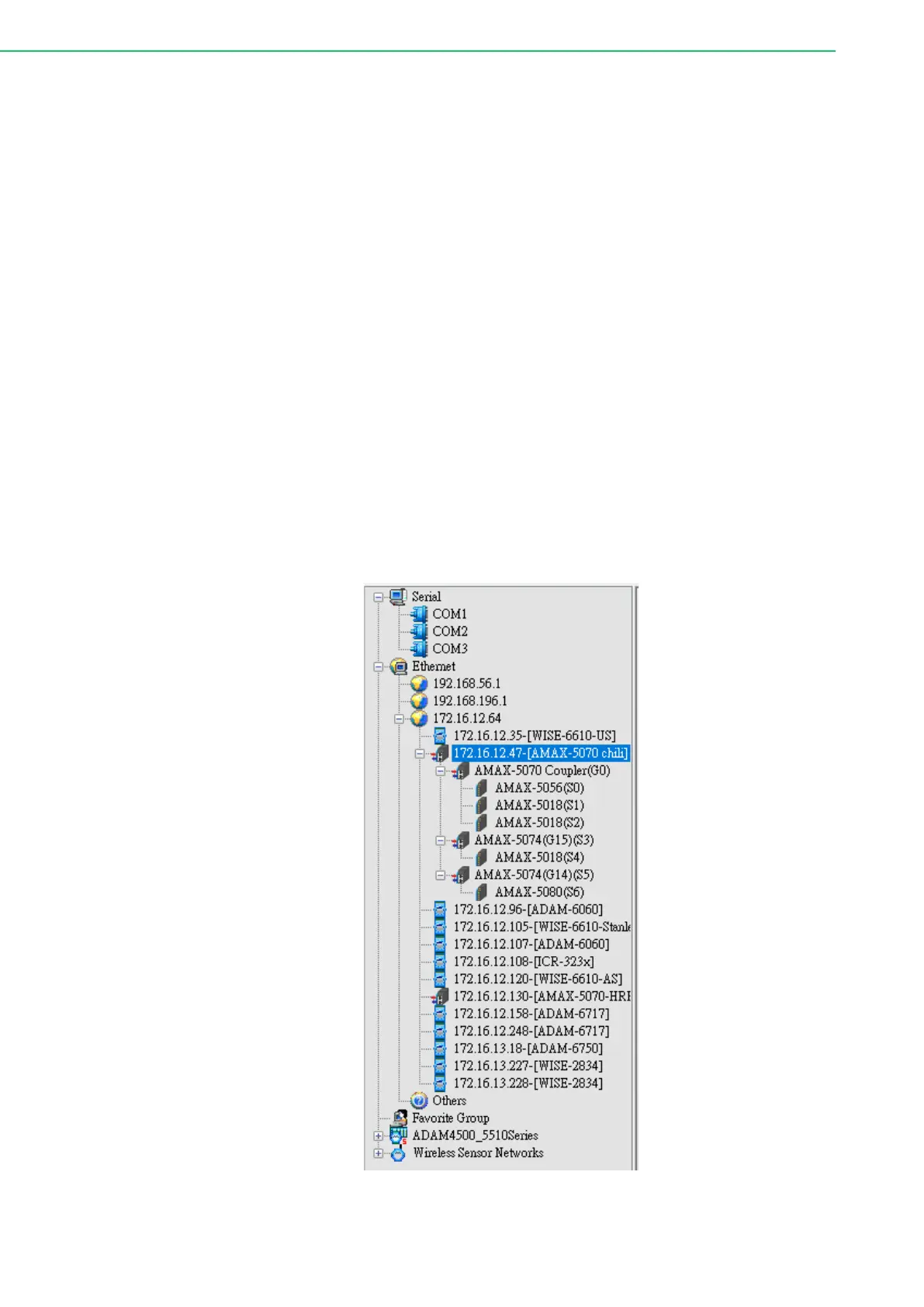

Figure 3.3 : The Subdevice Condition and Topology
