AMAX-5070 User Manual 2
1.1 Introduction
To enhance your experience with the AMAX-5070, please download the manual and
software from the Advantech office website:
AMAX-5000 Series I/O Modules User Manual
Advantech I/O Module Utility
This manual focuses on the AMAX-5070 Modbus/TCP Coupler. For more information
about the AMAX-5000 series I/O modules, please download the AMAX-5000 Series
I/O user manual from our official website.
1.2 Hardware System Diagram
The system hardware architecture for using the AMAX-5070 is shown in Figure 1.1.
LAN ports 1 and 2 can connect to the MainDevice (MDevice) via Modbus/TCP, with
LAN port 2 providing cable redundancy via EtherCAT. Refer to Figure 1.2 for the
cable redundancy system diagram in tree topology and Figure 1.3 for the ring topol-
ogy.

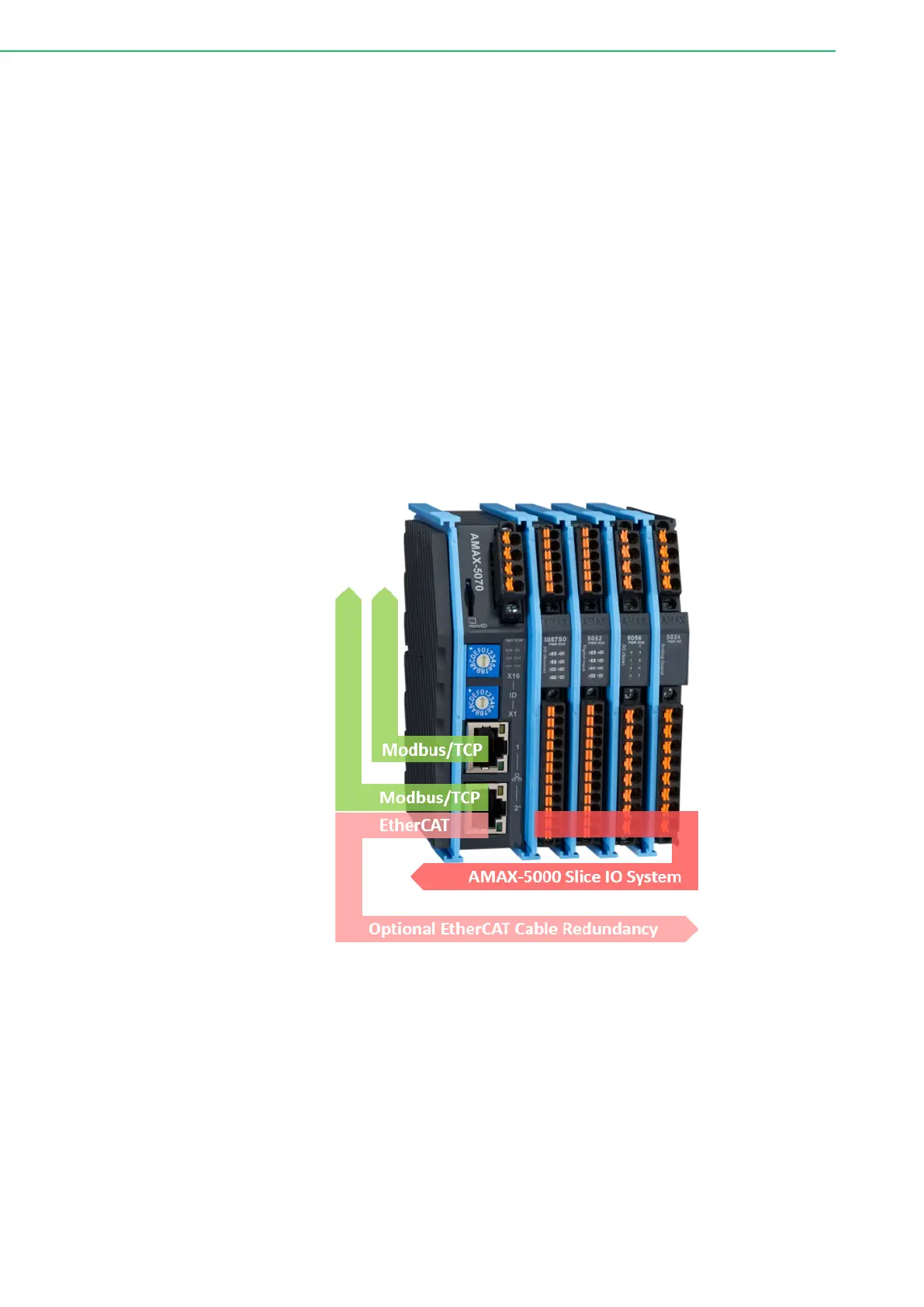

Figure 1.1 AMAX-5070 Hardware System Diagram
