13
AIR-500D User Manual
Table 2.5: CN9 BMC Dedicated LAN Connector Pin Assignments
2.3.1.5 USB 3.0 Connector
AIR-500D supports 6x USB 3.0 interfaces. The USB interfaces complies with
USB UHCI, Rev. 3.0 standards. Please refer to Table 2.5 for its pin assignments.
USB 3.0 connectors contain legacy pins to interface with USB 2.0 devices, and a
new set of pins for USB 3.0 connectivity.

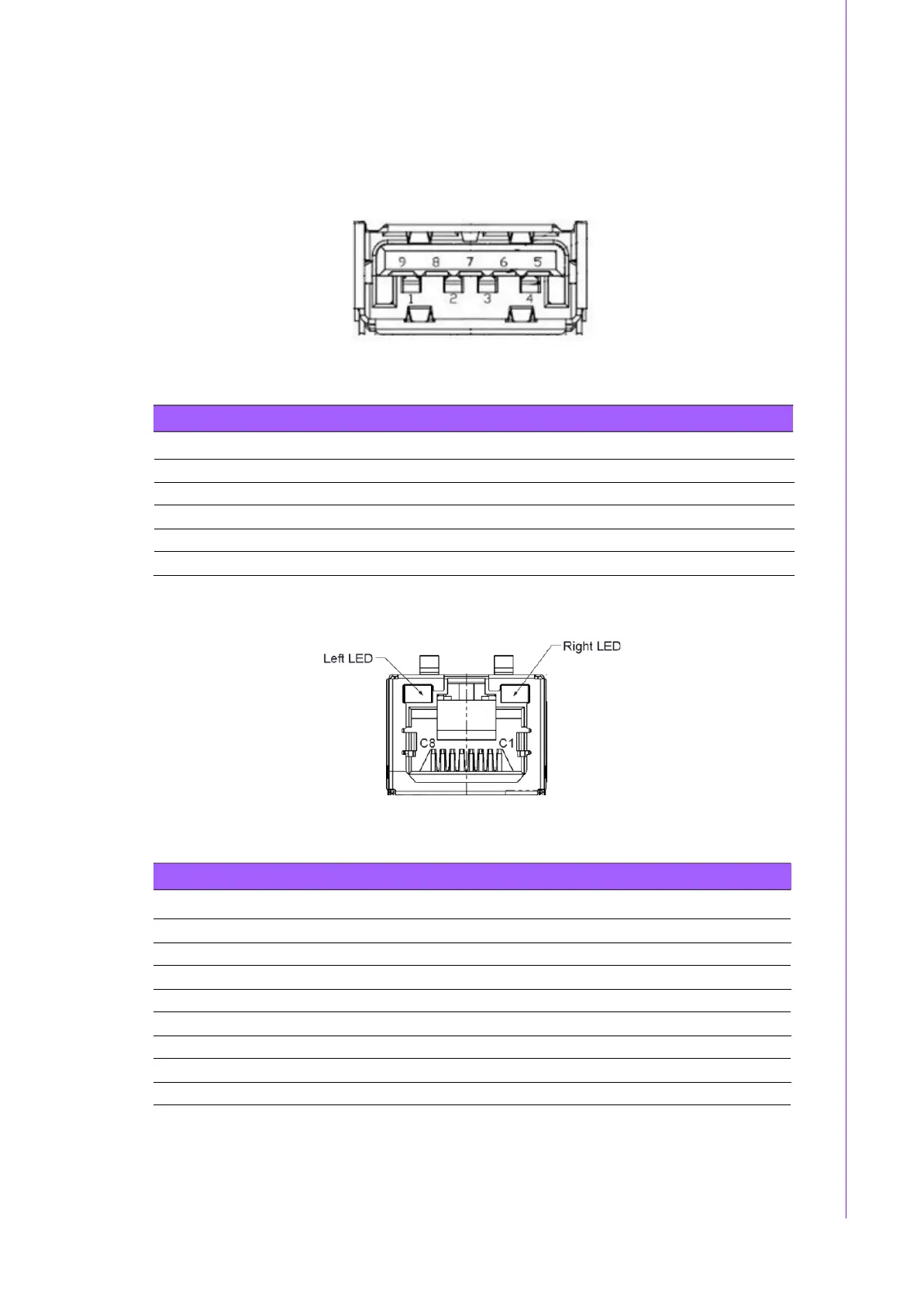

Figure 2.7 USB 3.0 Connector
Table
Pin
2.4: Table 2.5: USB 3.0
Signal Name
Connector Pi
Pin
n Assignments
Signal Name
1
+5V
2
USB_data-
3
USB_data+
4
GND
5
SSRX-
6
SSRX+
7
GND
8
SSTX-
9
SSTX+
2.3.1.6 BMC Dedicated LAN Connector
Figure 2.8 BMC Dedicated LAN Connector
Pin
10/100/1000BaseT
Signal
Name
C1 MDI_LAN_D0_P
C2 MDI_LAN_D0_N
C3 MDI_LAN_D1_P
C4 MDI_LAN_D1_N
C5 MDI_LAN_D2_P
C6 MDI_LAN_D2_N
C7 MDI_LAN_D3_P
C8 MDI_LAN_D3_N
Chapter 2
Hardware Configuration
