11 AIR-030 User Manual
Chapter 2 Hardware Installation

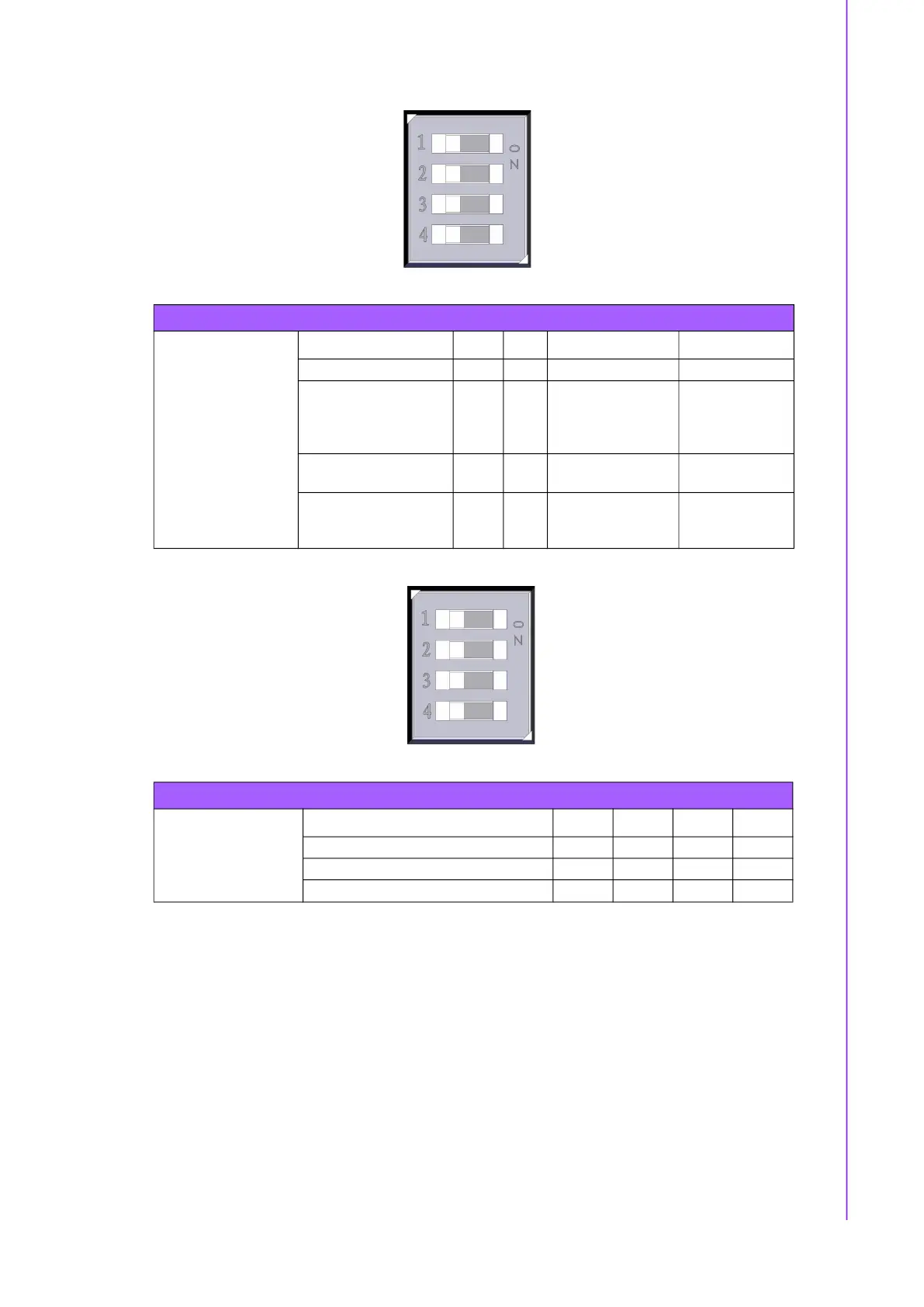

Table 2.6: COM Port Mode Selection
COM1_SW1 (COM1)
COM2_SW2(COM2)
COM4_SW3(COM3)
COM5_SW4(COM4)
Setting
Mode/Description Pin1 Pin2 Pin3 Pin4
RS-232 (Default) OFF OFF OFF OFF
RS-422 ON OFF
ON:
Termination Enable
OFF:
Termination Disable
OFF
RS-485
(Software flow control)
ON ON OFF ON
RS-485
(Hardware flow control)
Termination Enable
ON ON ON
ON: Receiver
OFF: Transmitter
Table 2.7: COM Port Failsafe Function Selection
COM1_SAFE1(COM1)
COM2_SAFE2(COM2)
COM4_SAFE3(COM3)
COM5_SAFE4(COM4)
Setting
Mode/Description Pin1 Pin2 Pin3 Pin4
Default OFF OFF OFF OFF
RS422_TX/RX external pull up/down ON ON ON ON
RS-485 TX external pull up/down ON ON OFF OFF
