15 AIR-020 User Manual
Chapter 2 Hardware Installation
2.4.8 USB Type C
AIR-020 supports USB Type-C 24 pin USB connector with a rotationally symmetrical
connector.

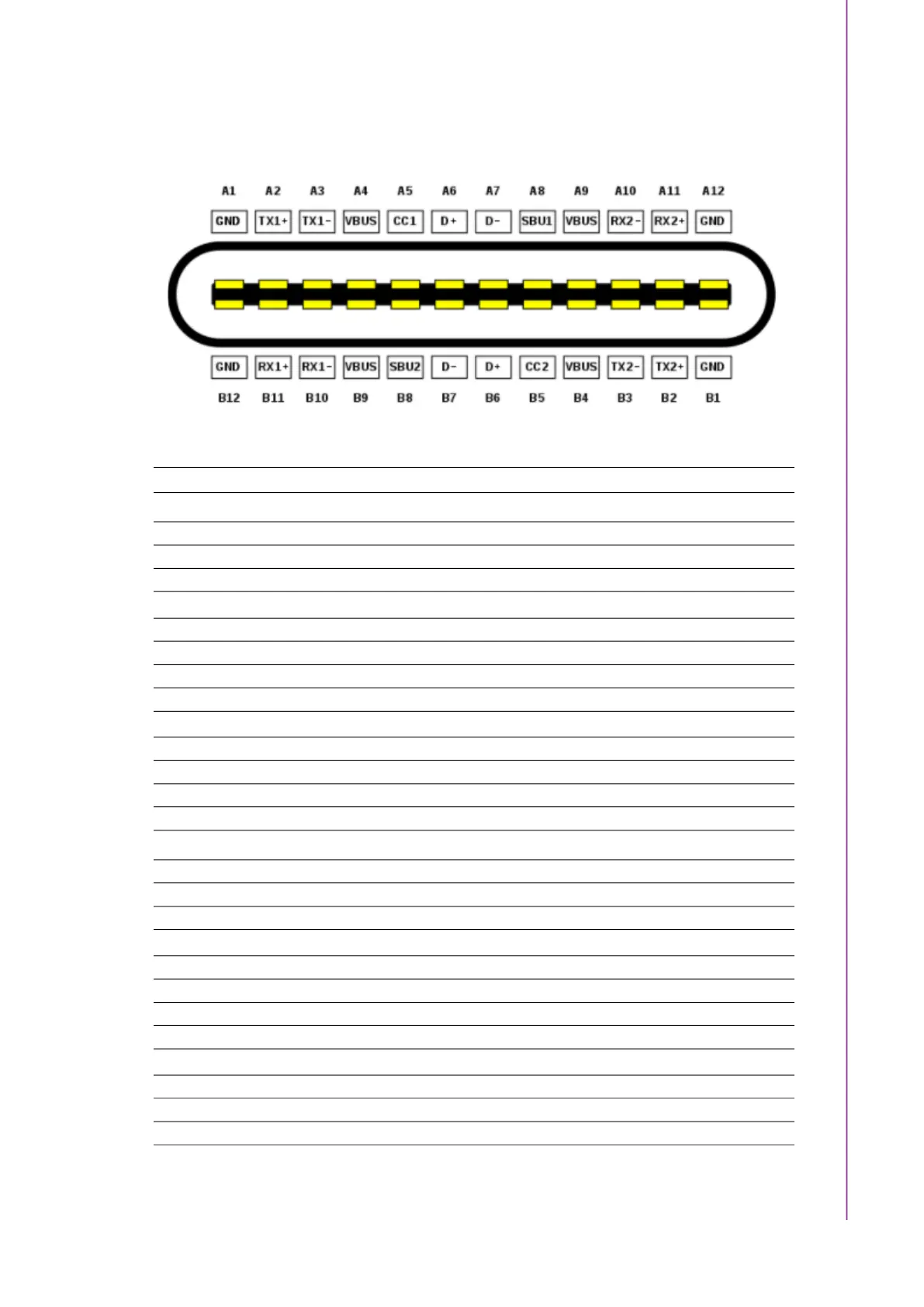

Type-C receptacle A pin layout
Pin Name Description
A1 GND Ground return
A2 SSTXp1 SuperSpeed differential pair #1, TX, positive
A3 SSTXn1 SuperSpeed differential pair #1, TX, negative
A4 V
BUS
Bus power
A5 CC1 Configuration channel
A6 Dp1 USB 2.0 differential pair, position 1, positive
A7 Dn1 USB 2.0 differential pair, position 1, negative
A8 SBU1 Sideband use (SBU)
A9 V
BUS
Bus power
A10 SSRXn2 SuperSpeed differential pair #4, RX, negative
A11 SSRXp2 SuperSpeed differential pair #4, RX, positive
A12 GND Ground return
Type-C receptacle B pin layout
Pin Name Description
B12 GND Ground return
B11 SSTXp1 SuperSpeed differential pair #2, RX, positive
B10 SSTXn1 SuperSpeed differential pair #2, RX, negative
B9 V
BUS
Bus power
B8 SBU2 Sideband use (SBU)
B7 Dn2 USB 2.0 differential pair, position 2, negative [a]
B6 Dp2 USB 2.0 differential pair, position 2, positive [a]
B5 CC2 Configuration channel
B4 V
BUS
Bus power
B3 SSRXn2 SuperSpeed differential pair #3, TX, negative
B2 SSRXp2 SuperSpeed differential pair #3, TX, positive
B1 GND Ground return
