23 AIMB-588 B1 User Manual
Chapter 2 Connecting Peripherals

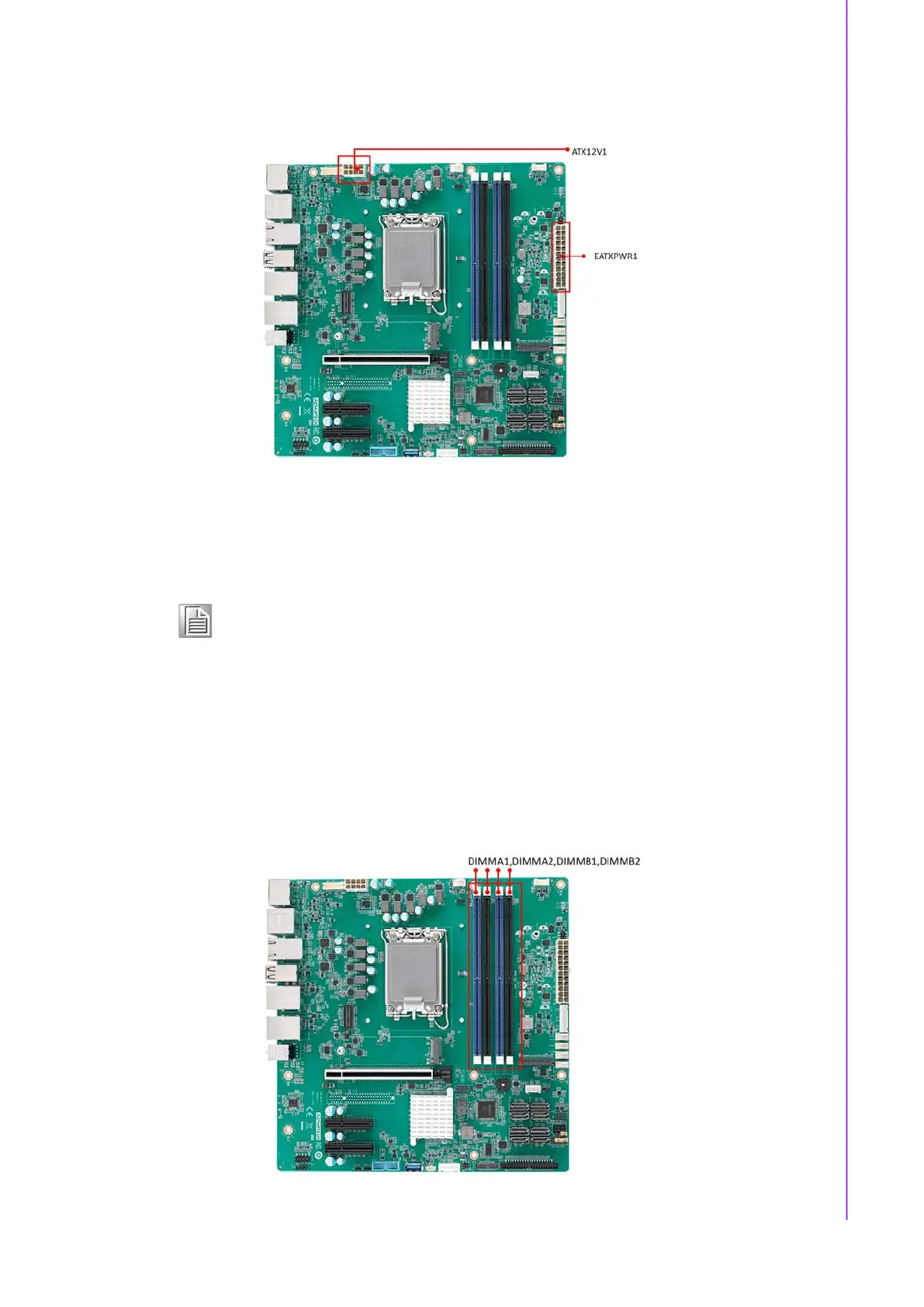

2.15 ATX Power Connector (EATXPWR1, ATX12V1)
This connector is for an ATX Micro-Fit power supply. The plugs from the power sup-
ply are designed to fit these connectors in only one direction. Determine the proper
orientation and push down firmly until the connectors mate completely.
2.16 DDR5 UDIMM Socket (DIMMA1/DIMMA2/
DIMMB1/DIMMB2)
Note! 1. Please connect the ATX12V1 connector with the PSU ATX 12V 8-pin
connector.
2. For a fully configured system, we recommend that you use a power
supply unit (PSU) that complies with ATX 12V Specification 2.0 (or later
version) and provides a minimum power of 180 W.
