21 AIMB-588 B1 User Manual
Chapter 2 Connecting Peripherals

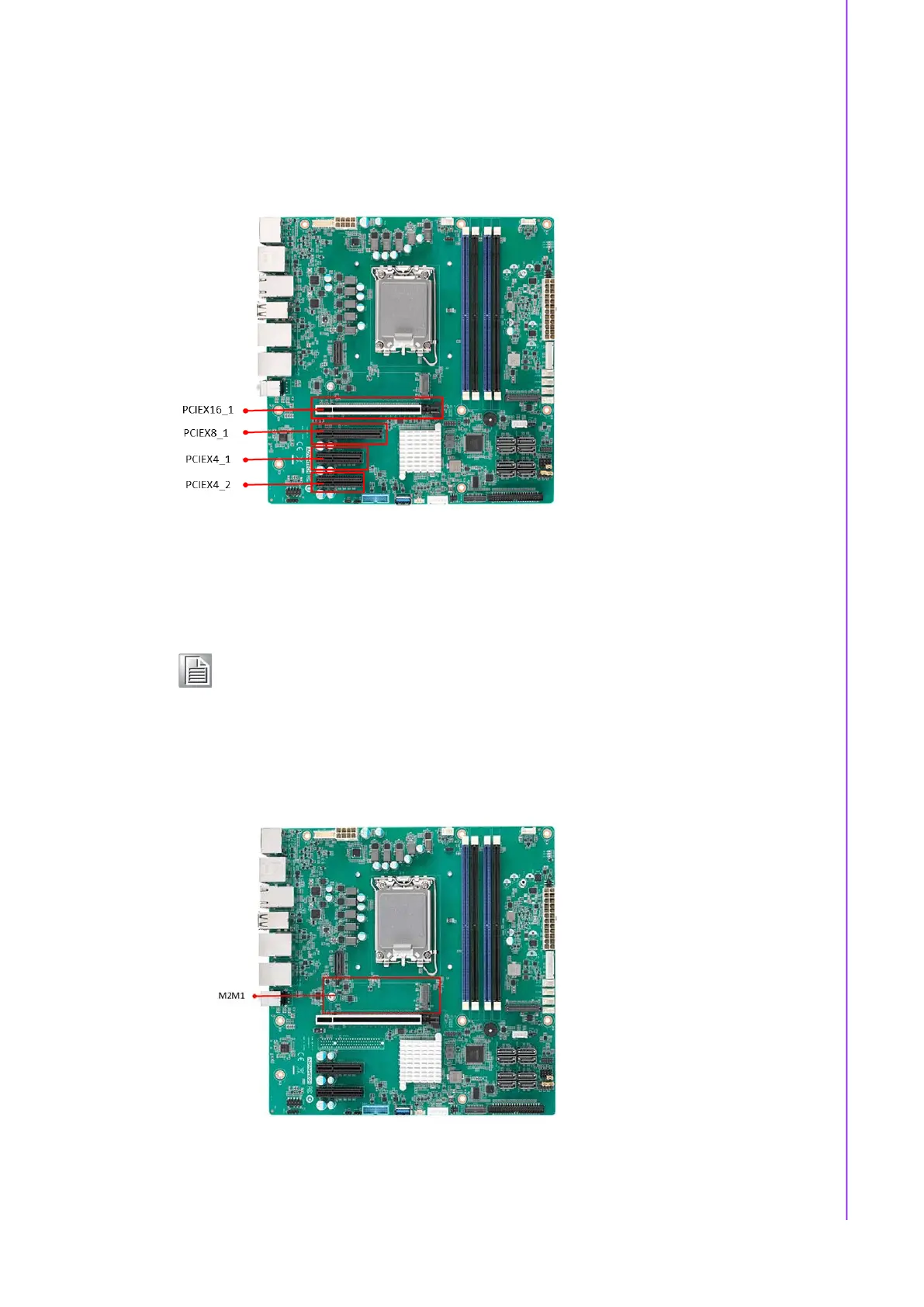

2.11 PCI Express x16 Slot (PCIEX16_1)
PCI Express x8 Slot (PCIEX8_1)
PCI Express p31-x4 Slot (PCIEX4_1/PCIEX4_2)
The AIMB-588 B1 provides a PCIe x16 slot, which offers a BOM option for 1 x PCIe
x8 for users to install add-on cards when their applications require higher graphics
performance than the CPU embedded graphics controller can provide.
2.12 NGFF M.2 M-Key Connector for 2280 Module
(M2M1)
M.2 M-Key: 2280, PCIe p31-x4 interface, which can support NVMe devices.
Note! There is a BOM option for 1 x PCIe x8 when a PCIe x8 slot is used. The
PCIe x16 slot only supports x8 bandwidth.
