9 AIMB-292 User Manual
Chapter 1 General Introduction
1.8.5 EDP Panel/LVDS Panel Voltage Selection (JLVDS1)
1.9 System Memory
AIMB-292 has two sockets for a 262-pin DDR5 SODIMM. These sockets use a 1.2 V
unbuffered double data rate synchronous DRAM (DDR SDRAM). DRAM is available
in capacities of 8GB, 16GB, 32GB and 48GB. The sockets can take any combination
with SODIMMs of any size, giving a total memory size between 8GB, 16GB, 64GB,
up to max 96GB. AIMB-292 does NOT support error checking and correction (ECC).
1.10 Memory Installation Procedures
To install SODIMMs, first make sure the two handles of the SODIMM socket are in
the “open” position, i.e., the handles lean outward. Slowly slide the SODIMM module
along the plastic guides on both ends of the socket. Then firmly but gently (avoid
pushing down too hard) press the SODIMM module well down into the socket, until
you hear a click when the two handles have automatically locked the memory module
into the correct position of the SODIMM socket. To remove the memory module, just
push both handles outward, and the memory module will be ejected by the mecha-
nism.

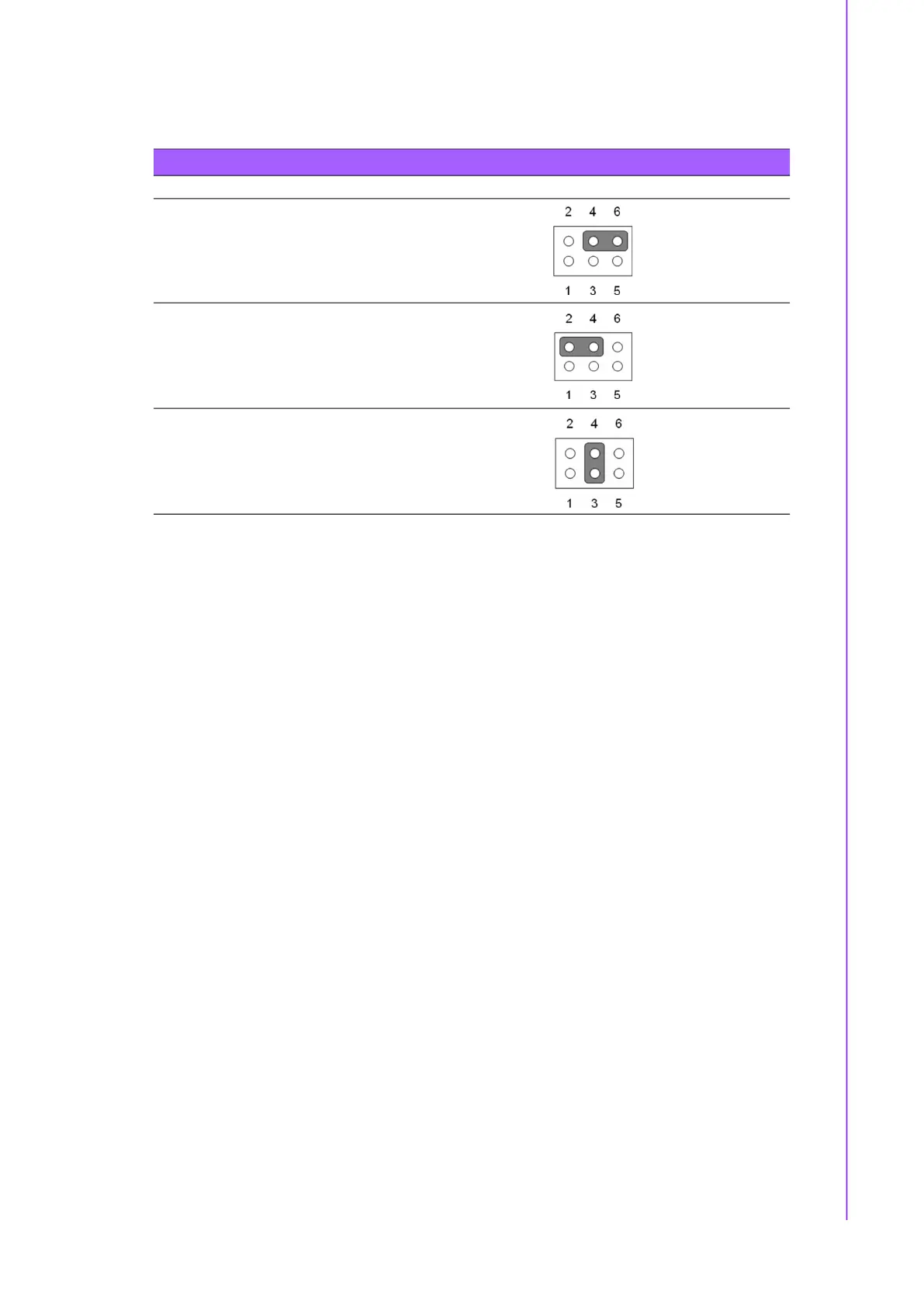

Table 1.8: PSON1+JCMOS
Function Jumper Setting
Jumper position for 3.3V
(Default)
Jumper position for 5V
Jumper position for 12V
