9 AIMB-288E User Manual
Chapter 1 General Introduction
1.8.6 COM1 RI# Pin RI# / 5V/12V Select (JSETCOM1_V1)
1.9 System Memory
AIMB-288E has two sockets for a 262-pin DDR5 SODIMM. These sockets use a
1.2V unbuffered double data rate synchronous DRAM (DDR SDRAM). DRAM is
available in capacities of 4 GB, 8 GB, 16 GB, and 32 GB. The sockets can take any
combination with SODIMMs of any size, giving a total memory size between 4 GB, 8
GB, 16 GB, and up to a max of 64 GB. AIMB-288E does NOT support error checking
and correction (ECC).
1.10 Memory Installation Procedures
To install a SODIMM, first make sure the two handles of the SODIMM socket are in
the “open” position, i.e., the handles lean outward. Slowly slide the SODIMM module
along the plastic guides on both ends of the socket. Then firmly but gently (avoid
pushing down too hard) press the SODIMM module well down into the socket, until
you hear a click when the two handles have automatically locked the memory module
into the correct position of the SODIMM socket. To remove the memory module, just
push both handles outward, and the memory module will be ejected by the mecha-
nism.
1.11 Cache Memory
The AIMB-288E supports a CPU with one of the following built-in full-speed last level
caches:
30MB for Intel® Core™ i9-12900E/i9-12900TE, 25MB for Intel® Core™ i7-12700E/
i7-12700TE, 18MB for Intel® Core™ i5-12500E/i7-12500TE, 12MB for Intel® Core™
i3-12100E/i7-12100TE, 2.5MB for Pentium® G7400E/G7400TE
The built-in second-level cache in the processor yields much higher performance
than conventional external cache memory.

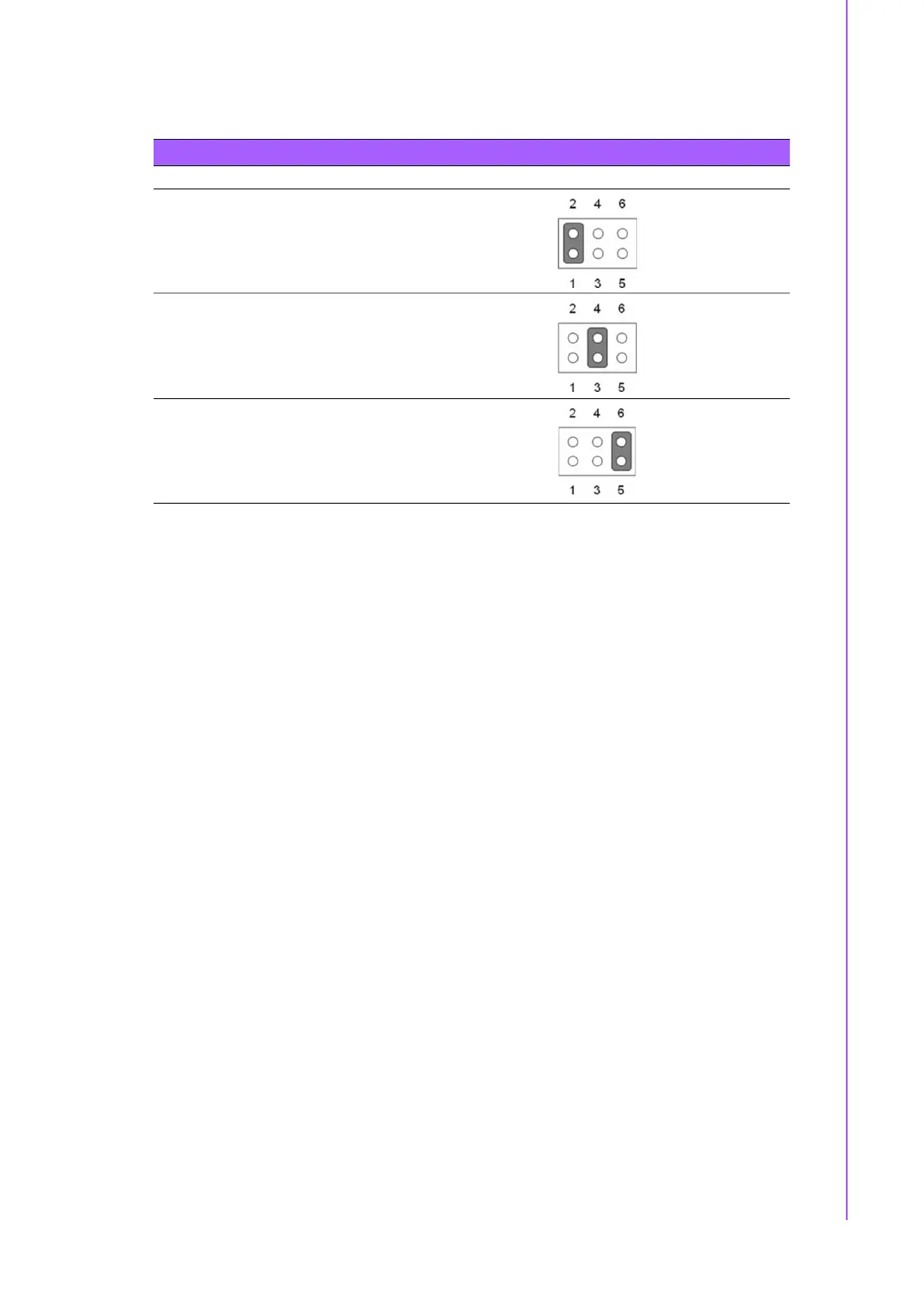

Table 1.6: COM1 RI# Pin RI# / 5V/12V Select (JSETCOM1_V1)
Function Jumper Setting
Jumper position for RI#
(default)
Jumper position for +5V
Jumper position for +12V
