AIMB-279 B1 User Manual 10
1.9 System Memory
The AIMB-279 B1 has two sockets for 260-pin DDR5 SODIMMs. These sockets use
a 1.2 V unbuffered double data rate synchronous DRAM (DDR SDRAM). DRAM is
available in capacities of 8GB, 16GB, 32GB and 48GB. The sockets can take any
combination with SODIMMs of any size, giving a total memory size between 8GB,
16GB, 32GB, 48GB, and up to max 96GB.
1.10 Memory Installation Procedures
To install SODIMMs, first make sure the two handles of the SODIMM socket are in
the “open” position, i.e., the handles lean outward. Slowly slide the SODIMM module
along the plastic guides on both ends of the socket. Then firmly but gently (avoid
pushing down too hard) press the SODIMM module well down into the socket, until
you hear a click when the two handles have automatically locked the memory module
into the correct position of the SODIMM socket. To remove the memory module, just
push both handles outward, and the memory module will be ejected by the mecha-
nism.
1.11 Cache Memory
The AIMB-279 B1 supports a CPU with one of the following built-in full speed last
level caches:
36MB for Intel® Core™ i9-14900E/i9-14900T
33MB for Intel® Core™ i7-14700E/i7-14700T
24MB for Intel® Core™ i5-14500E/i7-14500T
20MB for Intel® Core™ i5-14400/i514400T
12MB for Intel® Core™ i3-14100/i7-14100T
6MB Pentium® G7400E/G7400TE
The built-in second-level cache in the processor yields much higher performance
than conventional external cache memory.
1.12 Processor Installation
The AIMB-279 B1 is designed with the LGA 1700 socket to support 12th/13th/14th
Gen Intel® Core™ i9 /i7/i5/i3, Pentium®, and Celeron® processors.

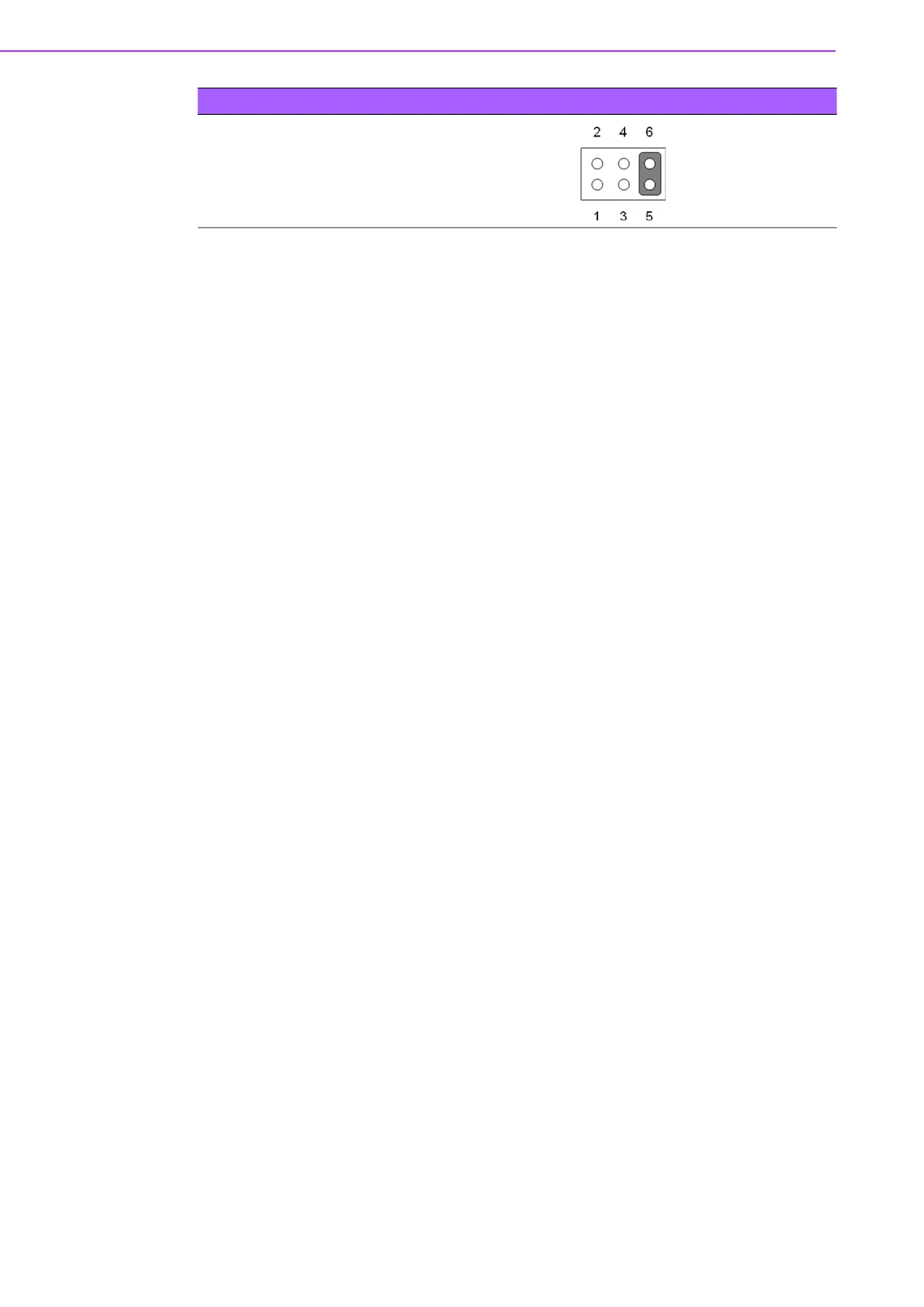

Jumper position for 12V
Table 1.6: COM1_RI# Pin RI# / 5V / 12V Selection (JSETCOM1_V1)
