5 AIIS-3411 User Manual
Chapter 1 General Introduction
1.4 Jumper Settings
1.4.1 How to Set Jumpers
You can configure your motherboard to match the needs of your application by set-
ting the jumpers. A jumper is a metal bridge that closes an electrical circuit. It consists
of two metal pins and a small metal clip (often protected by a plastic cover) that slides
over the pins to connect them. To “close” (or turn ON) a jumper, you connect the pins
with the clip. To “open” (or turn OFF) a jumper, you remove the clip. Sometimes a
jumper consists of a set of three pins, labeled 1, 2 and 3. In this case you connect
either pins 1 and 2, or 2 and 3. A pair of needle-nose pliers may be useful when set-
ting jumpers.

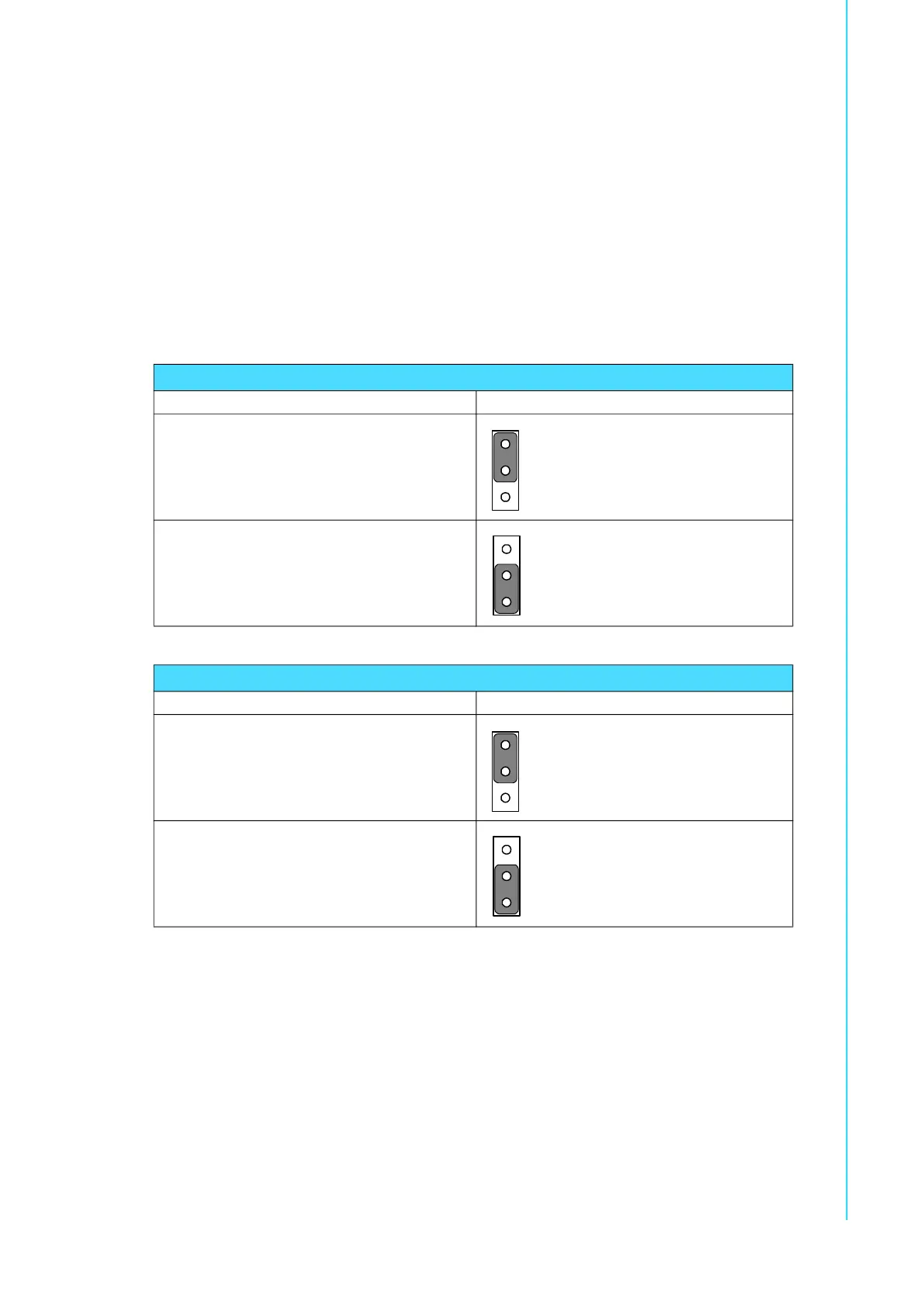

Table 1.1: PSON1: System AT/ATX Mode Selection
Function Jumper Setting
1-2
AT Mode
2-3
ATX Mode
Table 1.2: Clear CMOS
Function Jumper Setting
1-2
Normal (Default)
2-3
Clear CMOS
1
1
1
1
