13 AIIS-3400/3410 User Manual
Chapter 2 Hardware Installation
2.1.5 VGA+DVI Connector
AIIS-3400/3410 offers an integrated D-sub 24-pin female DVI-D Digital Visual Inter-
face connector and a D-sub 15-pin VGA; DVI-D carries digital video signal. This sup-
ports high-speed, high-resolution digital displays and traditional analog displays.

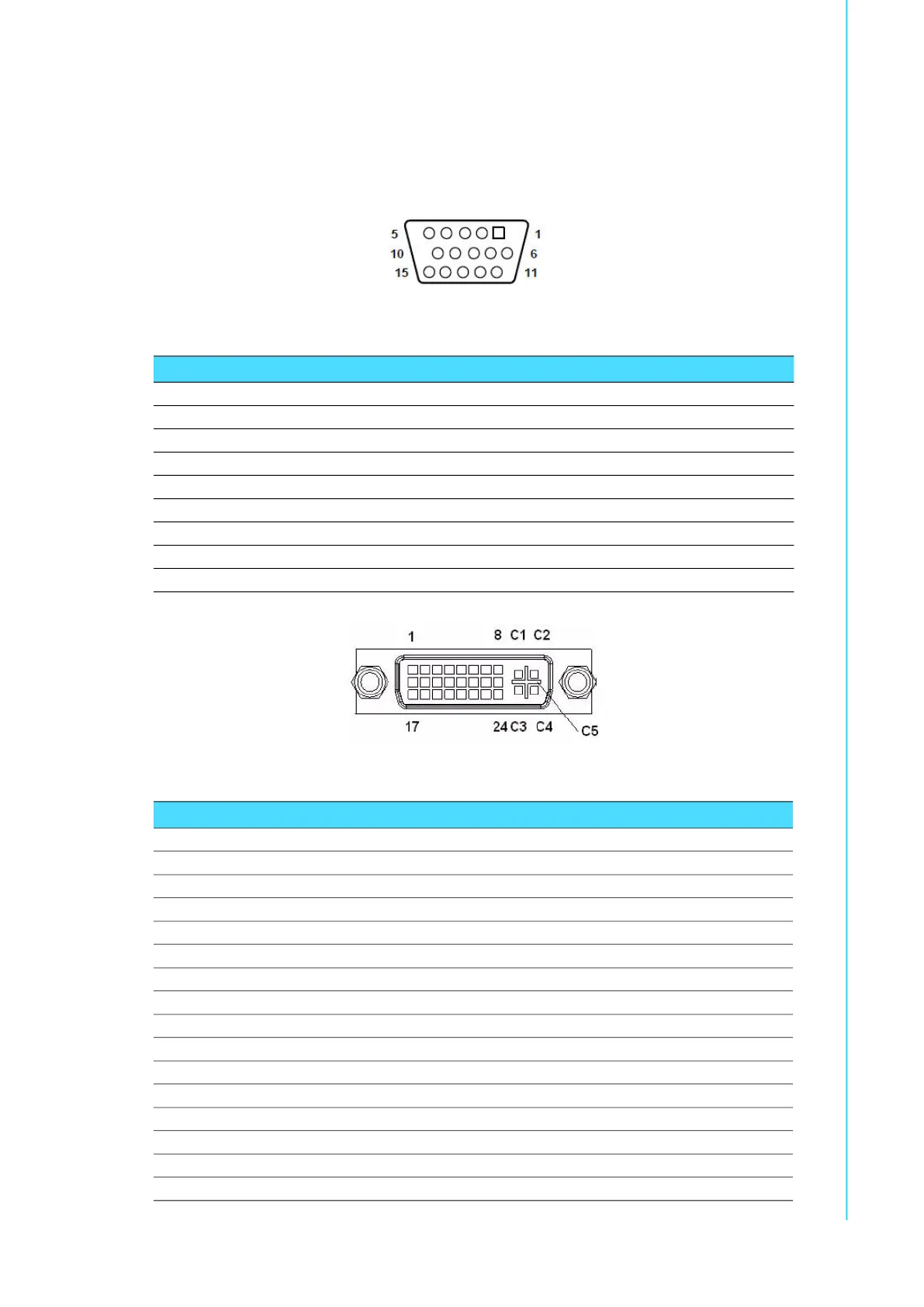

Figure 2.10 Figure 2.7 VGA Connector
Figure 2.11 DVI Connector
Table 2.7: VGA Connector Pin Assignment
Pin Signal Pin Signal
1 RED 2 GREEN
3 BLUE 4 N/C
5 GND 6 GND
7 GND 8 GND
9 VCC 10 GND
11 N/C 12 SDT
13 H-SYNC 14 V-SYNC
15 SCK
Table 2.8: DVI Connector Pin Assignment
Pin Signal Pin Signal
1 TMDS Data 2- 2 TMDS Data 2+
3 GND 4 N/C
5 N/C 6 DDC clock
7 DDC data 8 N/C
9 TMDS Data 1- 10 TMDS Data 1+
11 GND 12 N/C
13 N/C 14 +5 V
15 GND 16 Hot plug detect
17 TMDS Data 0- 18 TMDS Data 0+
19 GND 20 N/C
21 N/C 22 GND
23 TMDS clock + 24 TMDS clock -
C1 N/C C2 N/C
C3 N/C C4 N/C
C5 N/C
