AIIS-3400/3410 User Manual 10
2.1.3 Power Input Connector
AIIS-3400/3410 comes with a four-pin header that carries 19Vdc - 24Vdc external
power input.

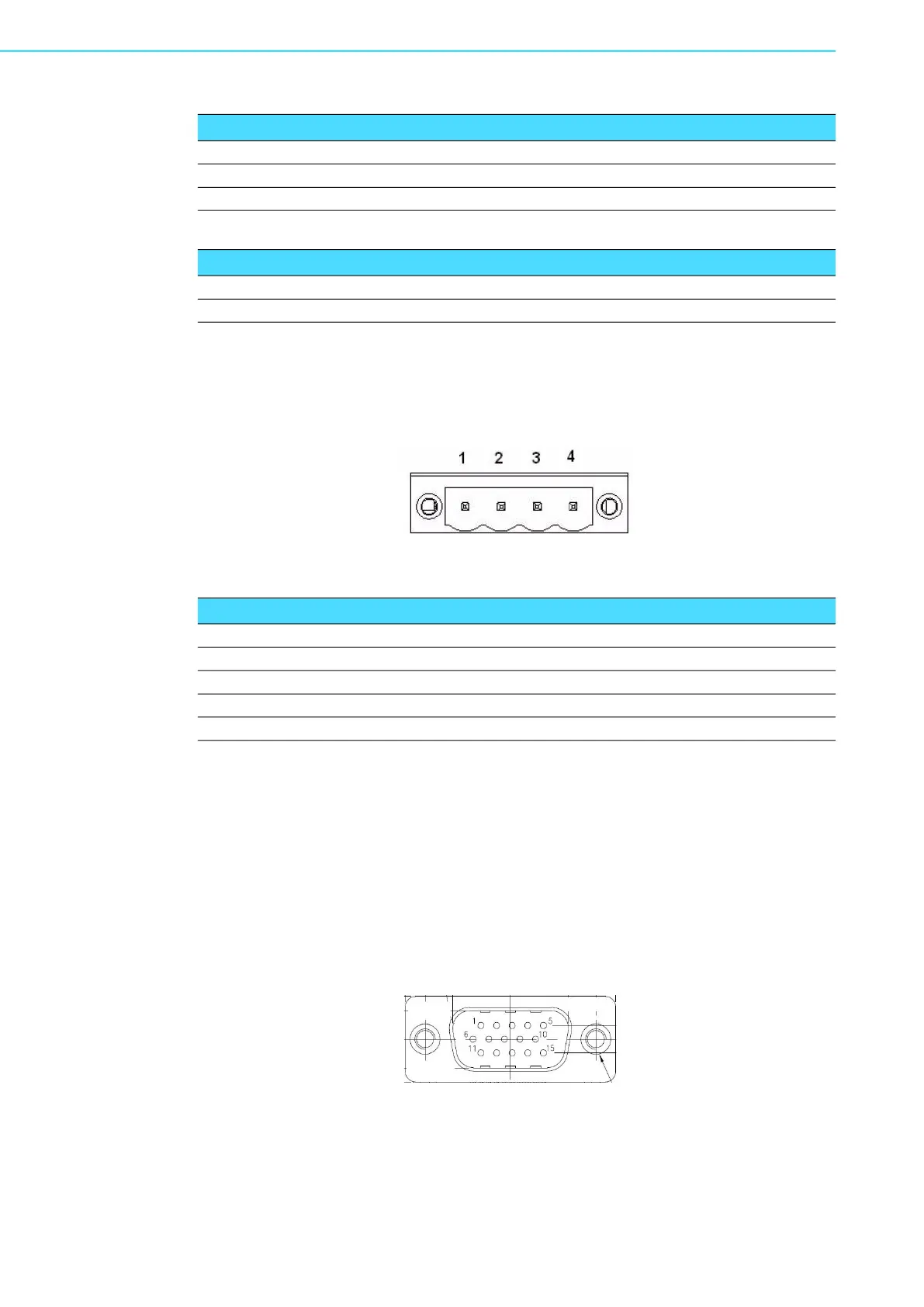

Figure 2.7 Power Input Connector
2.1.4 Digital I/O
AIIS-3400/3410 provides one DSUB-15 male connector which offers 4-ch digital
input and a 4-ch digital output with 2.5KV isolation. Each of 8 isolated digital output
channels comes equipped with a Darling transistor. Every 8 output channels share
common collectors and internal suppression diodes for inductive loads.
For Pin2, Pin3, Pin4, and Pin5 are digital input, Pin7, Pin8, Pin9, and Pin10 are digital
output; Pin1 and Pin11 are ground, Pin6 is external power input, Pin15 is 5V power
output.
DSUB-15 Male Connector
Figure 2.8 8-bit DIO Connector
Table 2.2: LED Indicators (Thermal & HDD)
LED color Function
Red Over heating LED
Amber SATA LED
Table 2.3: LED Indicator (PoE)
LED color Function
Red Connected Powered Device
Table 2.4: Power Input Connector Pin Assignments
Pin Signal
1 GND
2 19Vdc - 24 Vdc
3 19Vdc - 24 Vdc
4 GND
