AIIS-3400/3410 User Manual 16
2.1.10 Remote Power Switch Connector

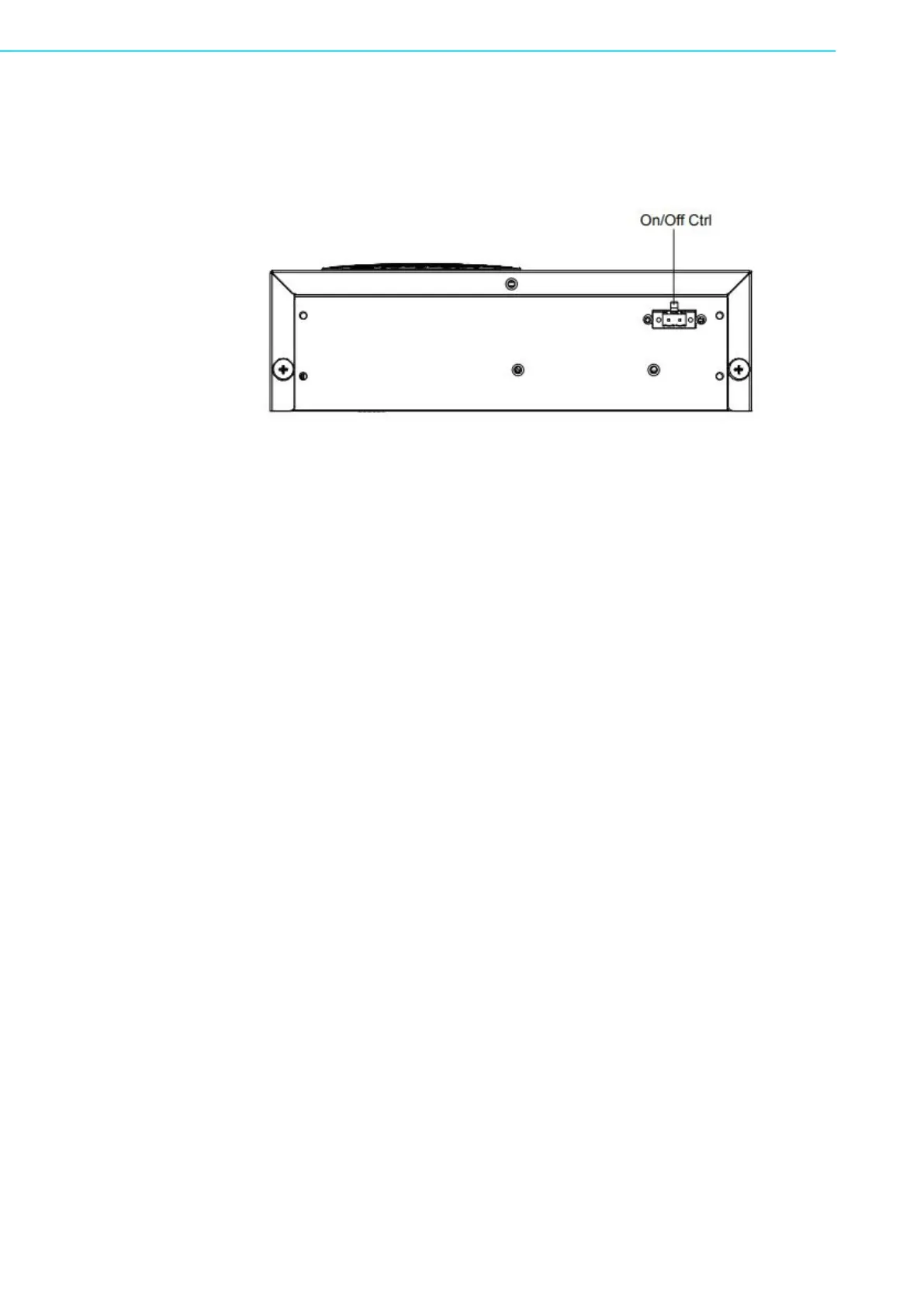

AIIS-3400/3410 includes a 2-pin Phoenix DC power connector that provides for
remote power control.
2.2 CPU Installation
1. Remove top cover.
2. Pull the handle beside the processor socket outward and lift it.
3. Remove the socket protection cap.
4. Align the notch or marked corner on the processor with the corresponding cor-
ner on the socket.
5. Replace the socket cap; lower the retainer handle and clip it shut.
6. Processor installation is complete.
7. Reinstall top cover.
Installation du processeur
1. Retirez le capot supérieur.
2. Tirez la poignée à côté du support du processeur vers l'extérieur et soulevez-la.
3. Retirez le capuchon de protection de la prise.
4. Alignez l'encoche ou le coin marqué du processeur avec le coin correspondant
sur la prise.
5. Replacez le capuchon de la prise; abaissez la poignée de retenue et fermez-la.
6. L'installation du processeur est terminée.
7. Réinstallez le capot supérieur
