19 AIIS-1882 User Manual
Chapter 3 Function Details

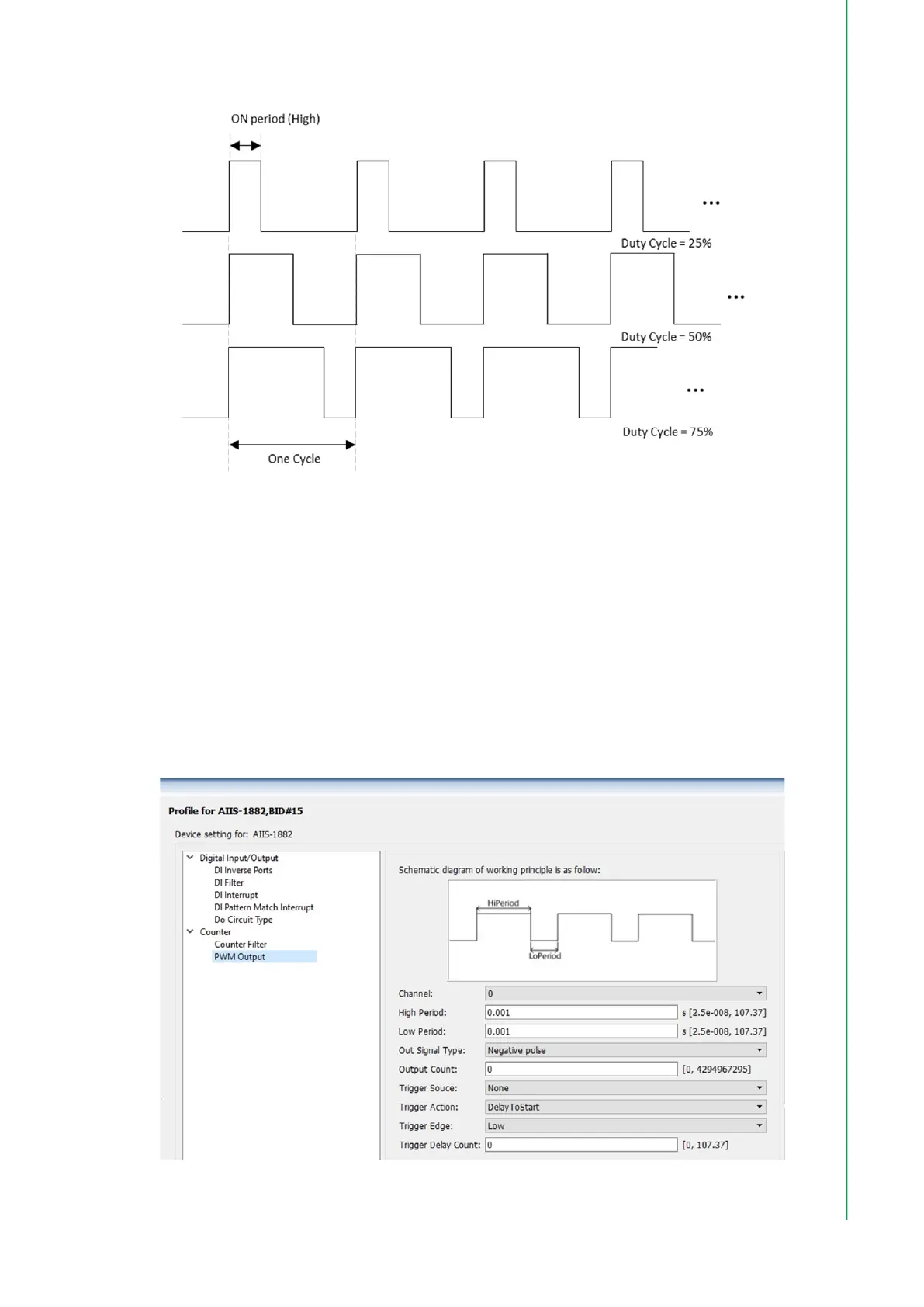

Figure 3.9 Lighting output intensity with different PWM duty cycles
The lighting output could be set to 3 modes:
1. Infinite lighting output
2. Finite lighting output period
3. Strobe (single PWM output)
The corresponding parameters to configure are high period, low period, and output
count. The high period and low period define the PWM high and low time spans in a
PWM output period, respectively. The output count specifies the number of PWM
periods that the output generates in each output cycle. The configuration interface in
Navigator is shown below:
Figure 3.10 PWM properties in Navigator
