AIIS-1882 User Manual 6
2.1 Installation
Assembly with AIIS-3411
To assemble the AIIS-1882 board in the AIIS-3411 computer, you should
1. Open the enclosure, remove the screw and the front panel
2. Assemble the AIIS-1882 board in the chassis, lighting cables to the front panel,
finally fix the I/O panel back onto the front panel
Please follow the steps below to open the enclosure:
1. Remove the screws on the rear side of AIIS-3411.
2. Remove the top enclosure of AIIS-3411.
3. Remove the four screws around the expansion connectors.
4. Remove the screws on the I/O panel.
5. Remove the I/O panel.

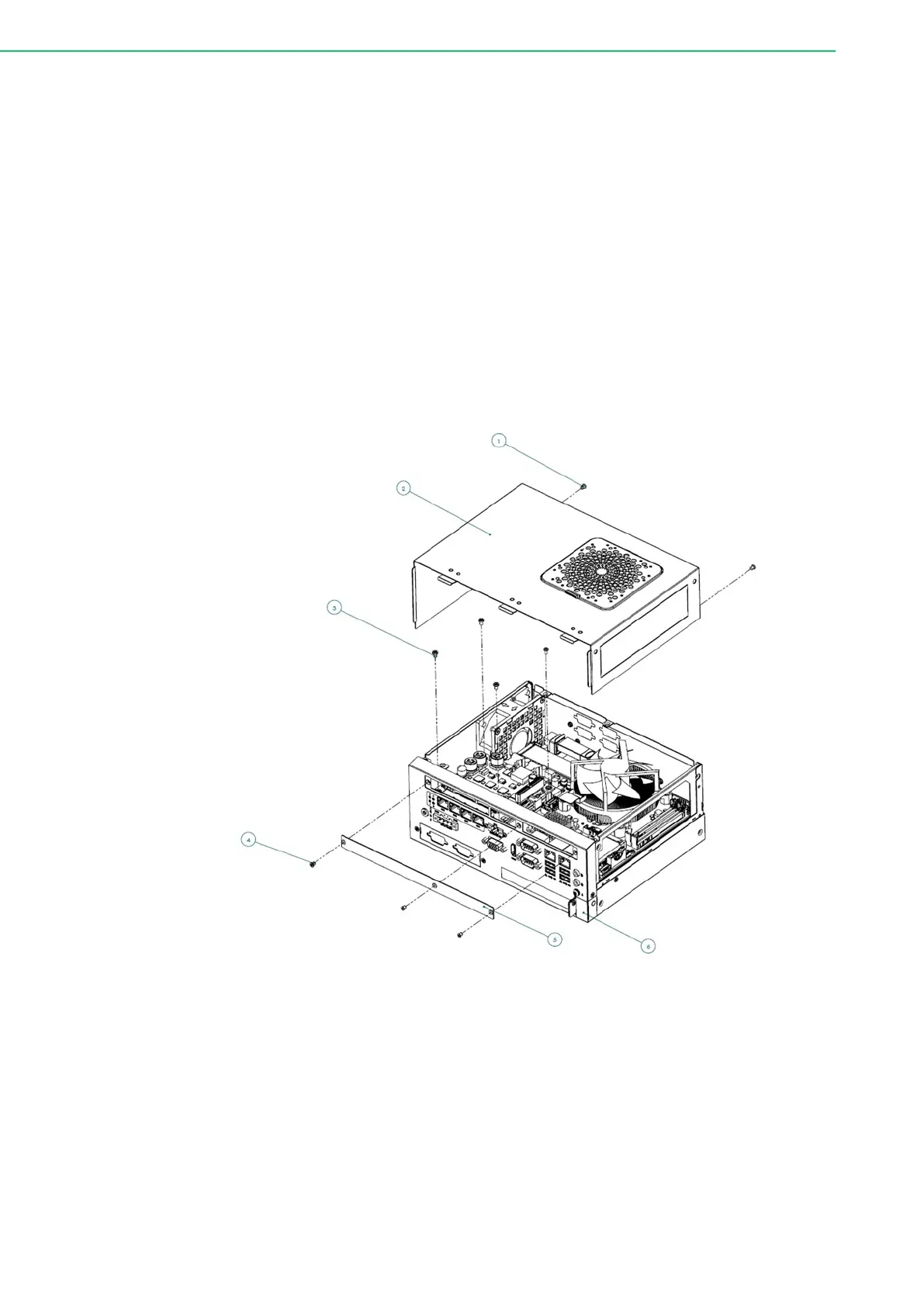

Figure 2.1 Disassembling the enclosure of AIIS-3411
Then, assemble the AIIS-1882 board in the chassis, connect the lighting cables to
the front panel, and finally attach the I/O panel back to the front panel:
1. Screw the four screw posts back into their original holes.
2. Remove the release paper from the supporting pad, then stick it onto the desig-
nated location shown in Figure 2.4.
3. Place the AIIS-1882 into the chassis, then press down to connect the board-to-
board connector on top of the assembly.
4. Secure the board by affixing screws at the corners.
