15 AIIS-1440 User Manual
Chapter 2 Hardware installation
2.2.2 USB 2.0 Connectors
AIIS-1440 provides four USB2.0 interface connectors, which give complete Plug &
Play and hot swapping for up to 127 external devices. The USB interface complies
with USB UHCI, Rev. 2.0 compliant. The USB interface can be disabled in the system
BIOS setup. Please refer to below table for its pin assignments. The USB connectors
are used to connect any device that conforms to the USB interface. Most digital
devices conform to this standard. The USB interface supports Plug and Play.

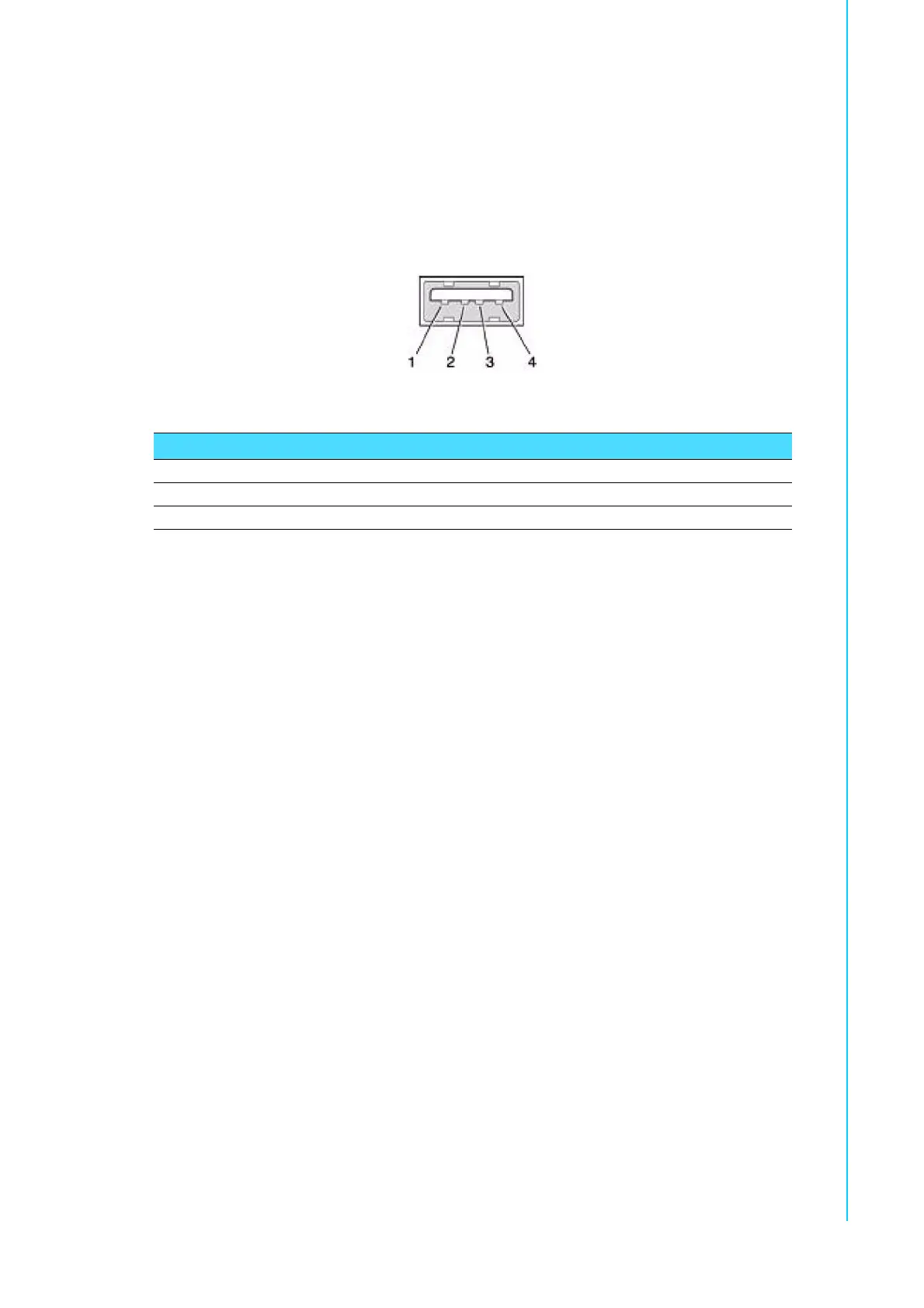

Figure 2.15 USB 2.0 Connectors
2.3 CPU Installation
1. Remove top cover.
2. Pull the handle beside the processor socket outward and lift it.
3. Remove the socket protection cap.
4. Align the cuts on the processor with the edges of the socket.
5. Replace the socket cap; lower the retainer handle and clip it shut.
6. Processor installation is complete.
7. Reinstall top cover.
Table 2.14: USB2.0 Connector Pin Assignment
Pin Signal Pin Signal
1 +5V 2 USB Data -
3 USB Data + 4 GND
