13 AIIS-1440 User Manual
Chapter 2 Hardware installation
2.1.8 USB 3.0 Connectors
The USB channel 1~4 and port 1~4 support USB 3.0 interface, which give complete
Plug & Play and hot swapping for up to 127 external devices. The USB interface
complies with USB UHCI, Rev. 3.0 compliant. Please refer to below table for its pin
assignments. USB 3.0 connectors contain legacy pins to interface to USB 2.0
devices, and a new set of pins for USB 3.0 connectivity (both sets reside in the same
connector).

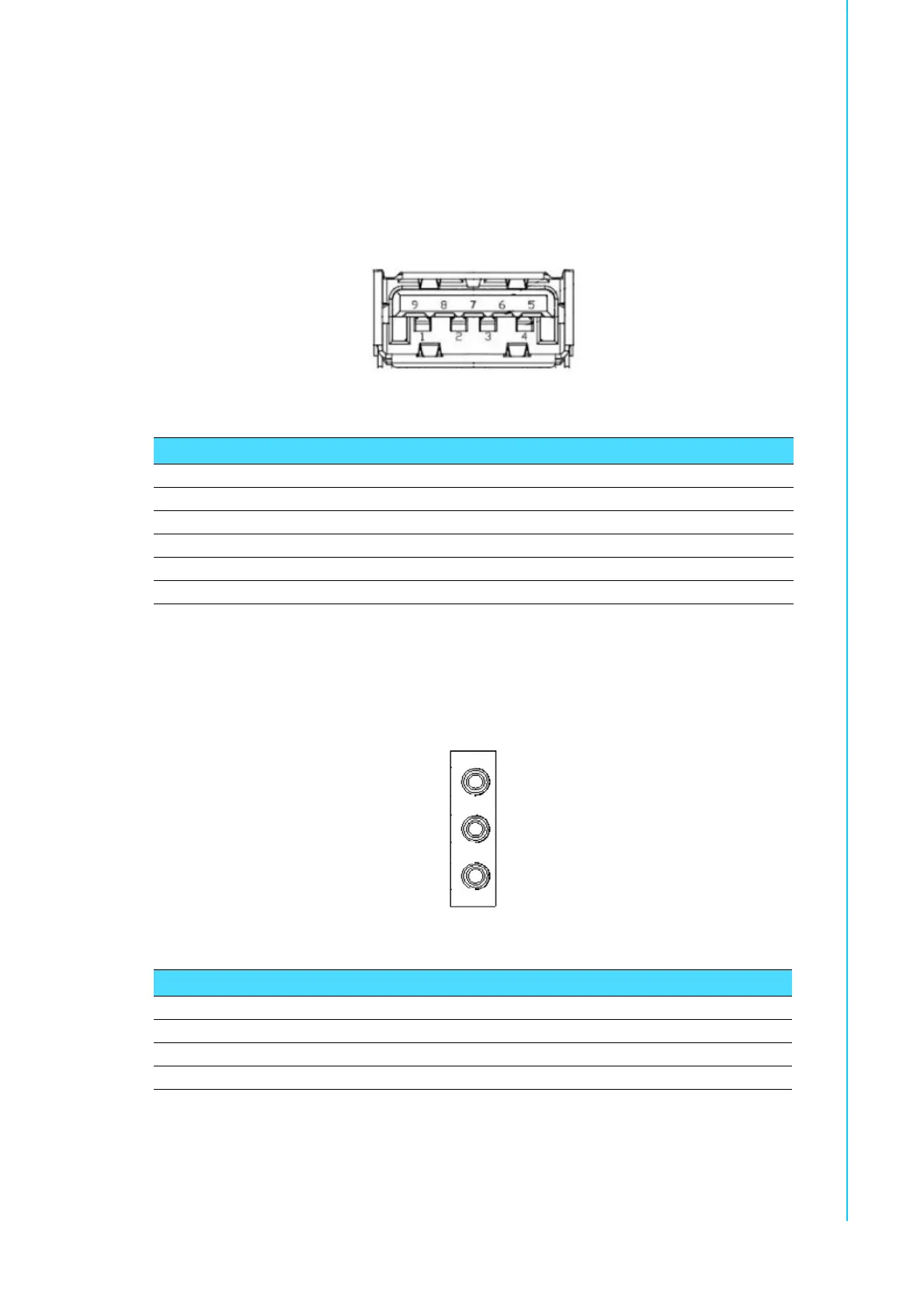

Figure 2.11 USB 3.0 Connectors
2.1.9 Audio Connector
AIIS-1440 offers stereo audio ports by three phone jack connectors of Line_Out,
Line_In, Mic_In. The audio chip is controlled by ALC892, and it’s compliant with Aza-
lea standard.
Figure 2.12 Audio Connector
Table 2.11: USB3.0 Connector Pin Assignment
Pin Signal Pin Signal
1 +5V 2 USB Data -
3 USB Data + 4 GND
5 SSRX- 6 SSRX+
7GND 8SSTX-
9 SSTX+
Table 2.12: Audio Pin Assignment
Color Function
Blue Line In
Green Line Out
Pink Mic In
