9 AIIS-1440 User Manual
Chapter 2 Hardware installation
2.1.3 Power Input Connector
AIIS-1440 comes with a four pins header that carries 19 ~ 24 VDC external power
input.

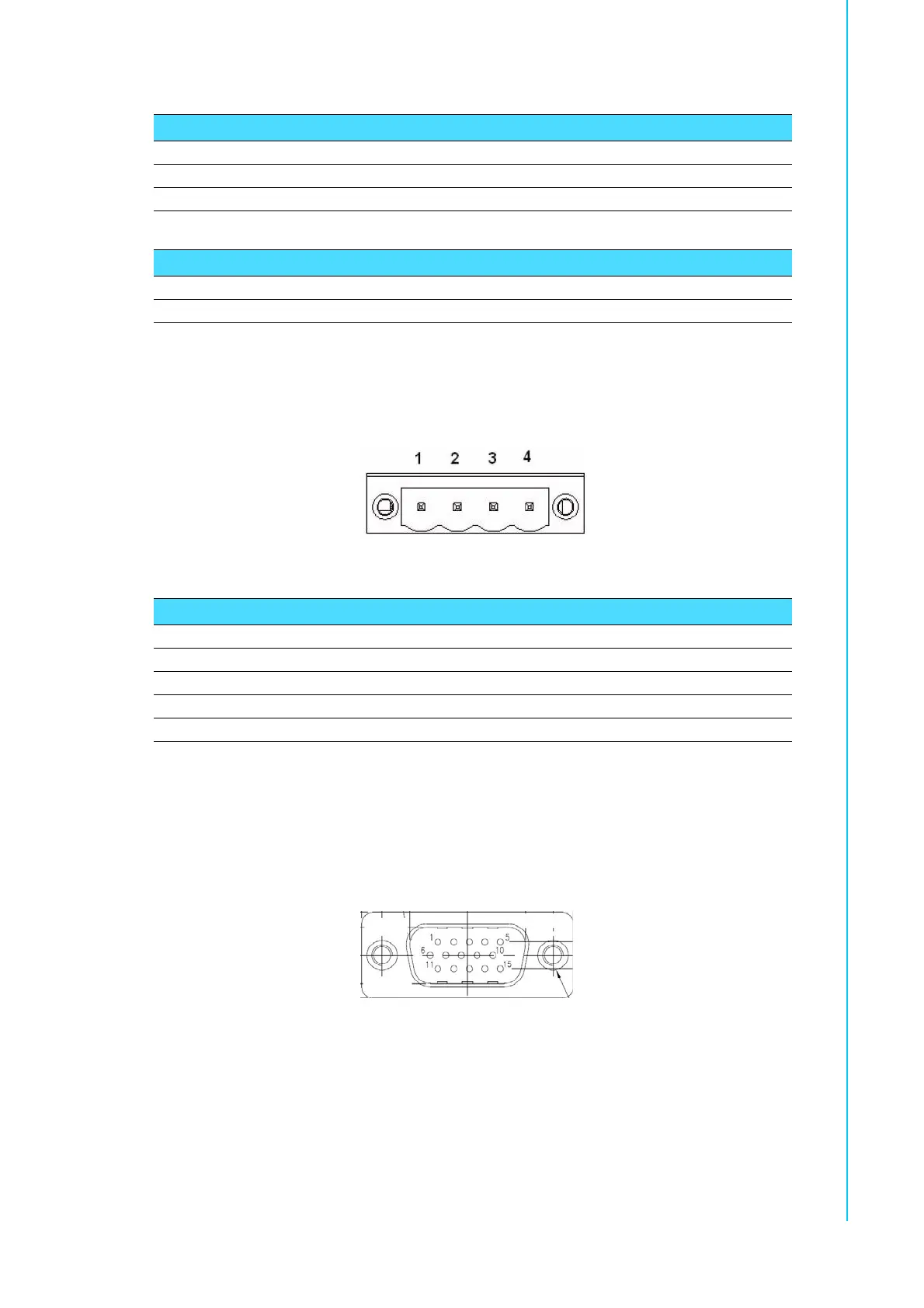

Figure 2.4 Power Input Connector
2.1.4 Digital I/O
AIIS-1440 provides one DSUB-15 male connector which offers 4-ch digital input and
4-ch digital output with 2.5KV isolation. AIIS-1440F provides additional DSUB-male
connector which offers 4-ch digital input and 4-ch digital output with 2.5KV isolation.
DSUB-15 Male Connector
Figure 2.5 8-bit DIO Connector
Table 2.2: LED Indicators (Thermal & HDD)
LED color Function
Red Over Temperature LED
Amber SATA LED
Table 2.3: LED Indicator (PoE)
LED color Function
Red Connected Powered Device
Table 2.4: Power Input Connector Pin Assignment
Pin Signal
1GND
2 +19~24 VDC
3 +19~24 VDC
4GND
