13 AIIS-1240 User Manual
Chapter 2 Hardware installation
UHCI, Rev. 3.0 compliant. Please refer to below table for its pin assignments. USB
3.0 connectors contain legacy pins to interface to USB 2.0 devices, and a new set of
pins for USB 3.0 connectivity (both sets reside in the same connector).

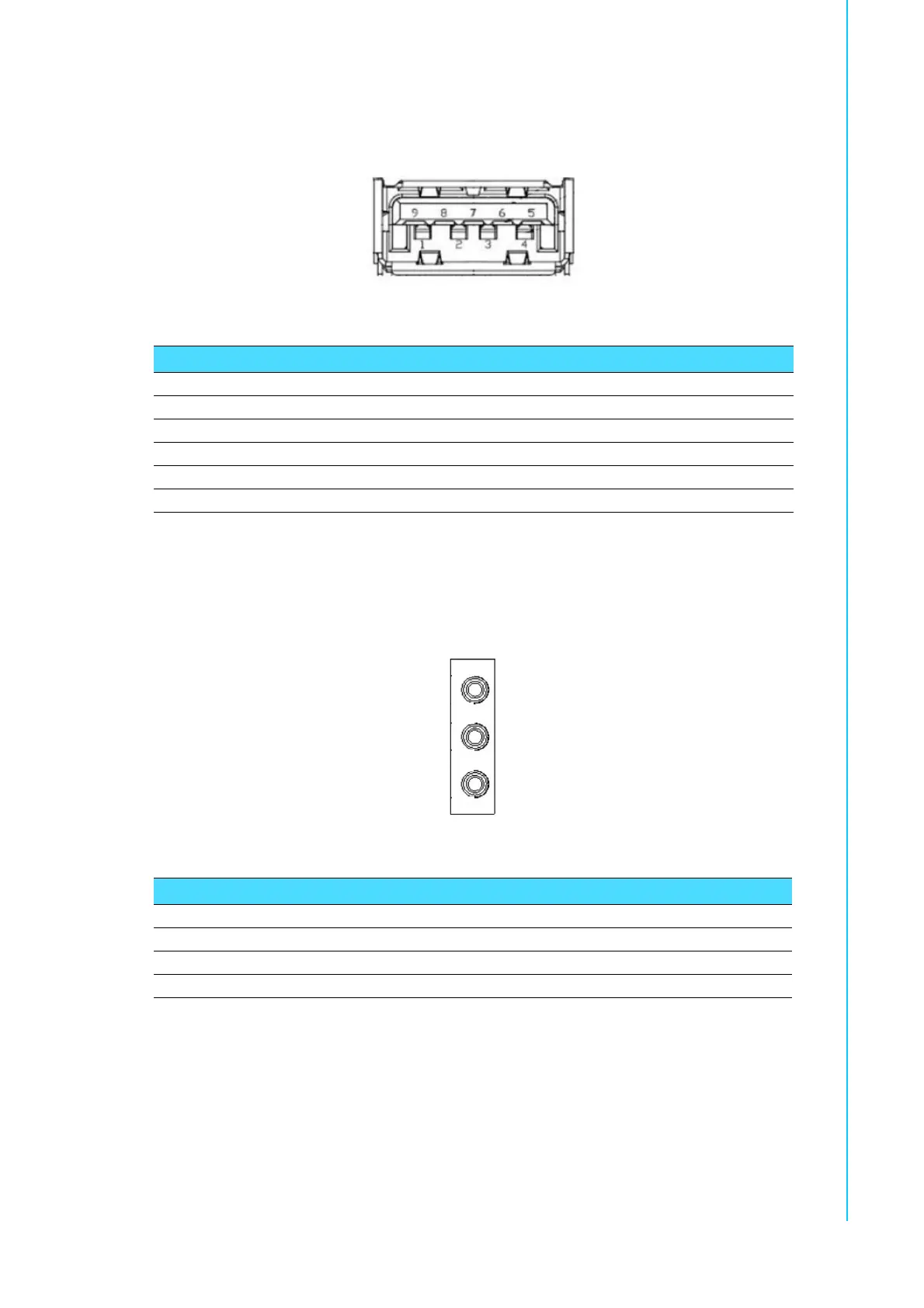

Figure 2.11 USB 3.0 Connectors
2.1.9 Audio Connector
AIIS-1240 offers stereo audio ports by three phone jack connectors of Line_Out,
Line_In, Mic_In. The audio chip is controlled by ALC892, and it’s compliant with Aza-
lea standard.
Figure 2.12 Audio Connector
Table 2.11: USB3.0 Connector Pin Assignment
Pin Signal Pin Signal
1 +5V 2 USB Data -
3 USB Data + 4 GND
5 SSRX- 6 SSRX+
7GND 8SSTX-
9 SSTX+
Table 2.12: Audio Pin Assignment
Color Function
Blue Line In
Green Line Out
Pink Mic In
