AIIS-1240 User Manual 8
2.1 Front Panel Controls, Indicators & Connectors

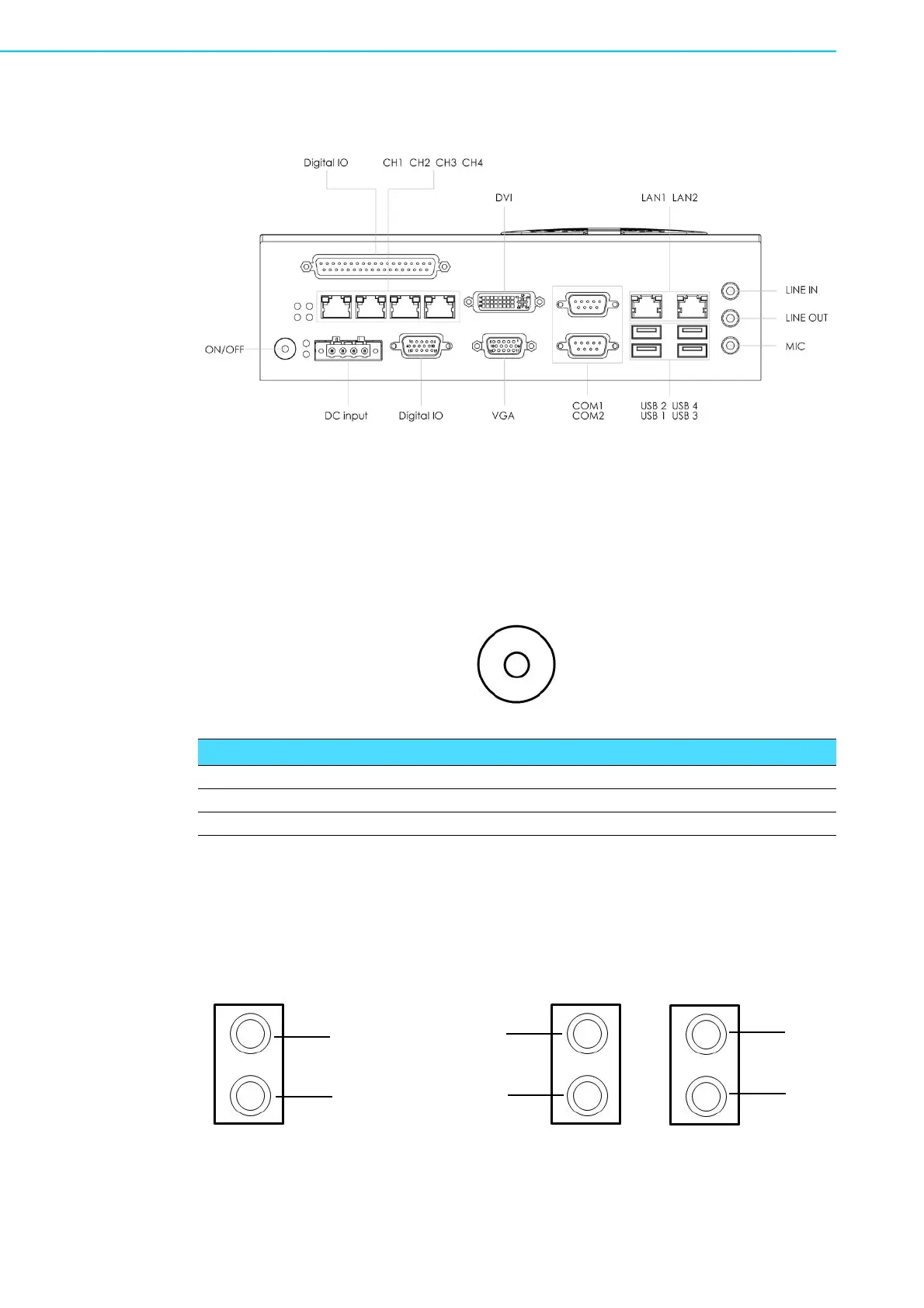

Figure 2.1 AIIS-1240 Front View
2.1.1 Power On/Off Button
AIIS-1240 has a Power On/Off button with LED indicators on the front side that show
On status (Green LED) and Off/Suspend status (Orange LED). The Power button
supports dual functions: Soft Power -On/Off (Instant off or Delay 4 Seconds then off),
and Suspend.
Figure 2.2 Power On/Off Button
2.1.2 LED Indicators
There are two LEDs on the front panel that indicate system status: The thermal LED
is for system thermal alarm status; and HDD LED is for HDD and Cfast disk status. In
addition, there are four LEDs to indicate the connection of powered device via PoE
port.
Figure 2.3 LED Indicators
Table 2.1: Power Button Connector Pin Assignment
LED color Status
Green Power ON
Amber S1/S4/S5
HDD LED
Temp. LED
PoE
PoE
PoE
PoE
