AFE-R760 User Manual 8
2.1 Jumper & Switches
The AFE-R760 has a number of jumpers that allow you to configure your system to
suit your application. The table below lists the functions of the various jumpers.
2.1.1 Miscellaneous Selection Jumper: SW1

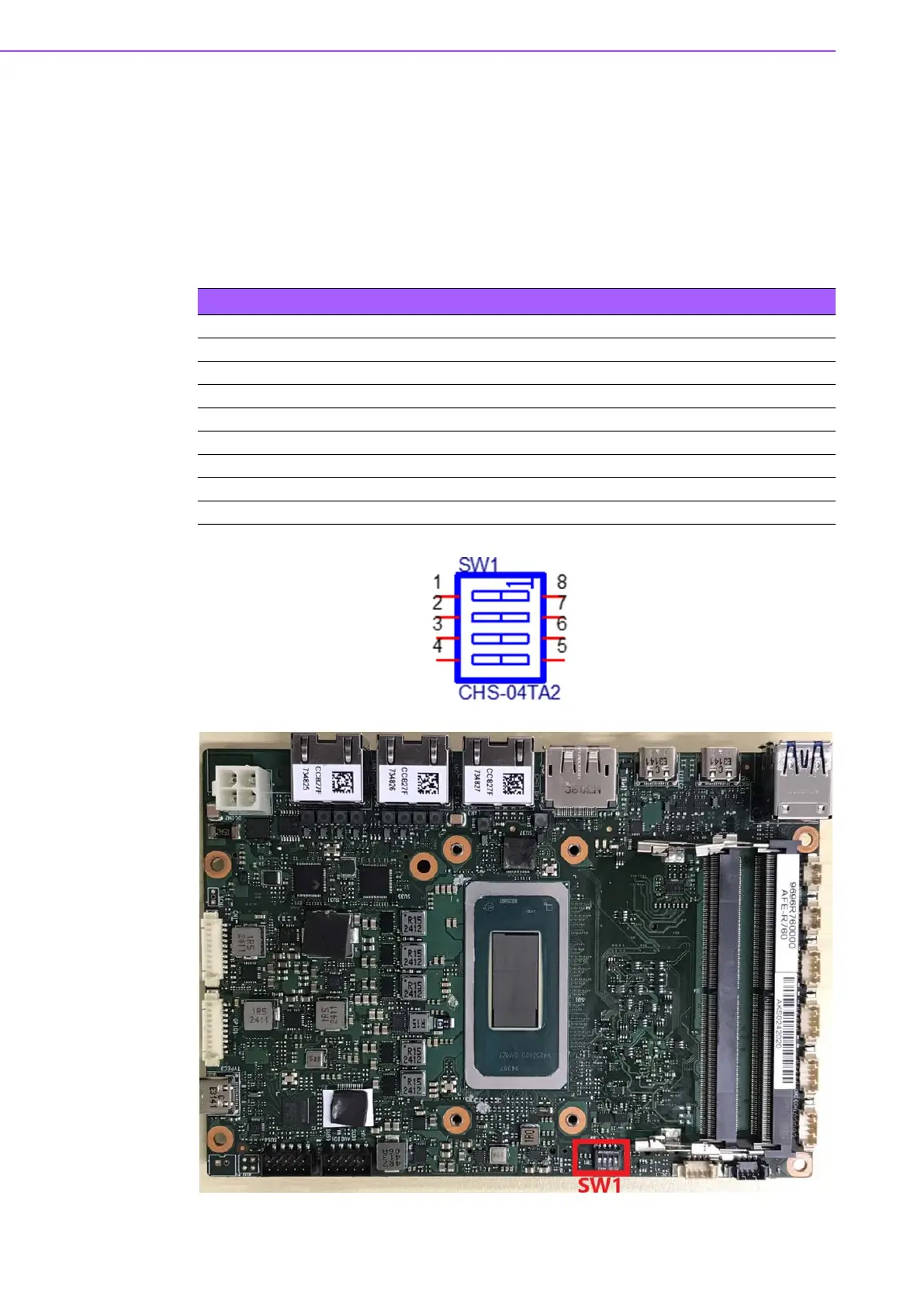

Unscrew the 4 spring screws and 4 hex head screws on the top cover, and remove
the top cover. Please refer to the picture to find the SW1 location.
Table 2.1: Miscellaneous Selection Jumper: SW1
Jumper Short Panel Function
1 ATX_DET (Default)
2 LOAD_BIOS_DEFAULT (Default_off)
3 GPI (no function)
4 Topswap (no function, default on)
5 Topswap (no function, default on)
6 GPI (no function)
7 LOAD_BIOS_DEFAULT (On)
8 AT_DET#
