AFE-E420 User Manual 12
3.4 Jumpers & Switches
You may configure your card to match the needs of your application by setting jump-
ers. A jumper is a metal bridge used to close an electric circuit. It consists of two
metal pins and a small metal clip (often protected by a plastic cover) that slides over
the pins to connect them. To "close" a jumper, you connect the pins with the clip. To
"open" a jumper, you remove the clip. Sometimes a jumper will have three pins,
labeled 1, 2 and 3. In this case you would connect either pins 1 and 2, or 2 and 3.

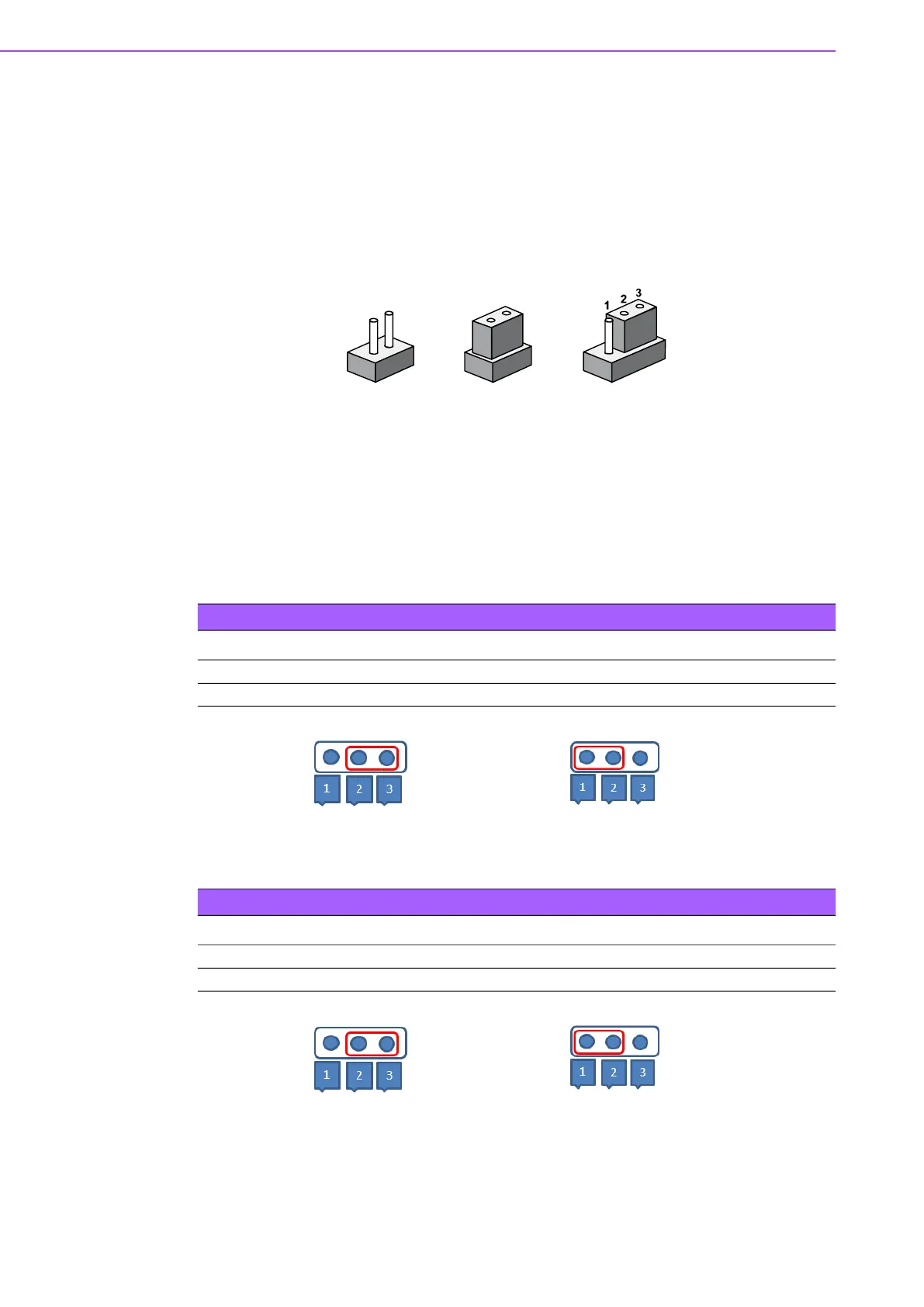

The jumper settings are schematically depicted in this manual as follows:
A pair of needle-nose pliers may be helpful when working with jumpers. If you have
any doubts about the best hardware configuration for your application, contact your
local distributor or sales representative before you make any changes. Generally, you
simply need a standard cable to make most connections.
3.4.1 Backlight Voltage Selection Jumper: LVDS_BKLT_SLT
3.4.2 Auto Power On Selection Jumper: AT1
closed 2-3closedopen
Table 3.3: Backlight Voltage Selection Jumper: LVDS_BKLT_SLT
Jumper Short Backlight Voltage
1-2 +V5
2-3 +V12 (Default)
Table 3.4: Auto Power On Selection Jumper: AT1
Jumper Short Functional
1-2 Push-button Power On (ATX)
2-3 Auto Power On (Default)
