3 ADAM-6300 User Manual
Chapter 1 Product Overview
1.3.2 Power Connection

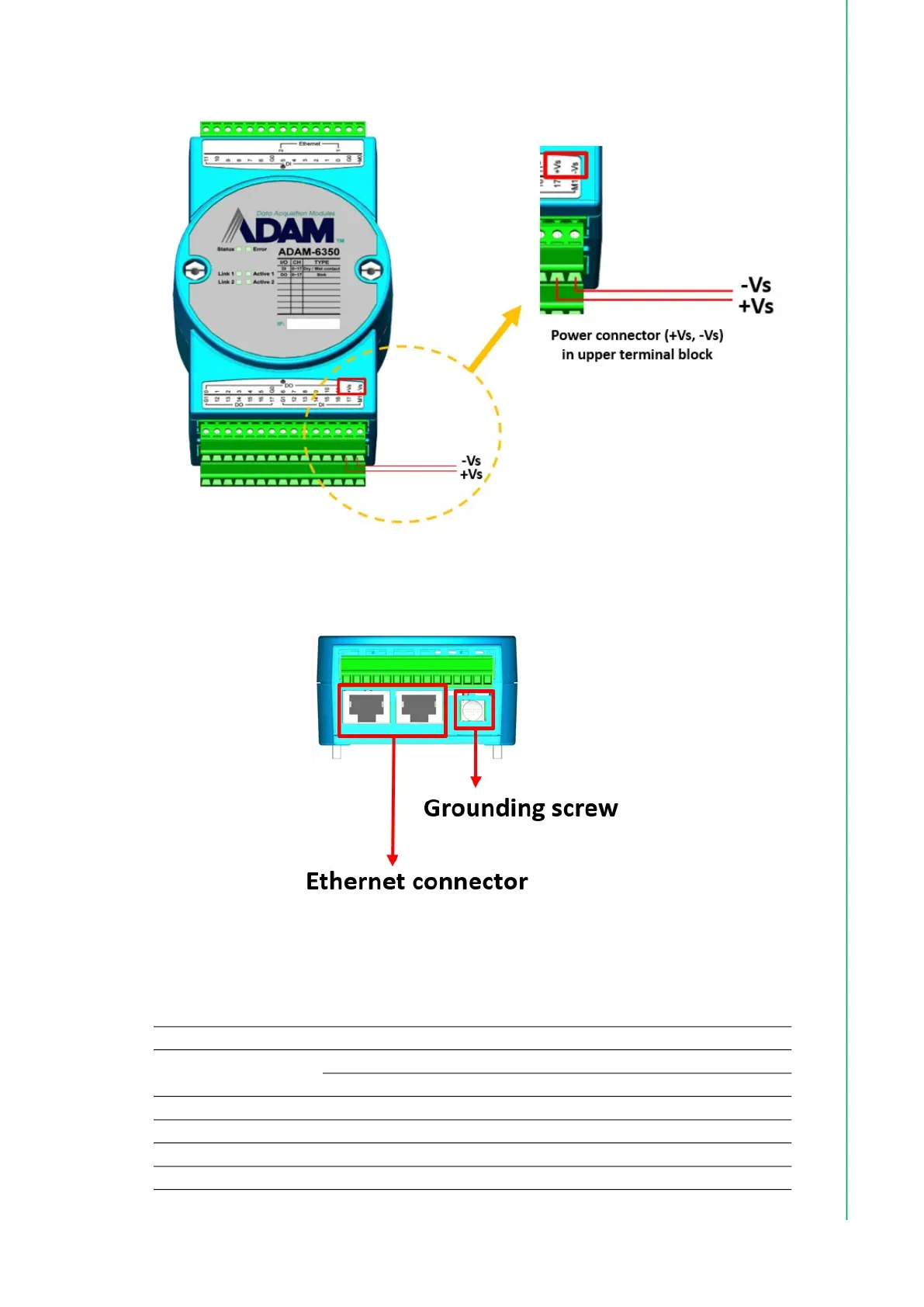

Figure 1.2 Power Connector
1.3.3 Ethernet Connector and Grounding Screw
Figure 1.3 Ethernet Connector and Grounding Screw
1.3.4 LED Definition
The ADAM-6300 series are equipped with LED indicators that show the device sta-
tus. The LED indicator behaviors are defined below.
LED Color Behavior Definition
Status Green
Flashing(1Hz) Normal mode
Flashing(10Hz) Module is booting
Link1 Yellow Stay on Ethernet(Eth1) speed is connected
Link2 Yellow Stay on Ethernet(Eth2) speed is connected
Active1 Green Flashing Ethernet(Eth1) is transmitting/receiving data
Active2 Green Flashing Ethernet(Eth2) is transmitting/receiving data
