1 Startup Manual
ADAM-6250
15-ch Digital I/O Modbus TCP Module
Notes
For more information on this and other Advantech
products, please visit our websites at:
http://www.advantech.com
http://www.advantech.com/eAutomation
For technical support and service:
http://www.advantech.com.tw/eservice
This startup manual is for the ADAM-6250
Part No: 2003625000 1st Edition
February 2013

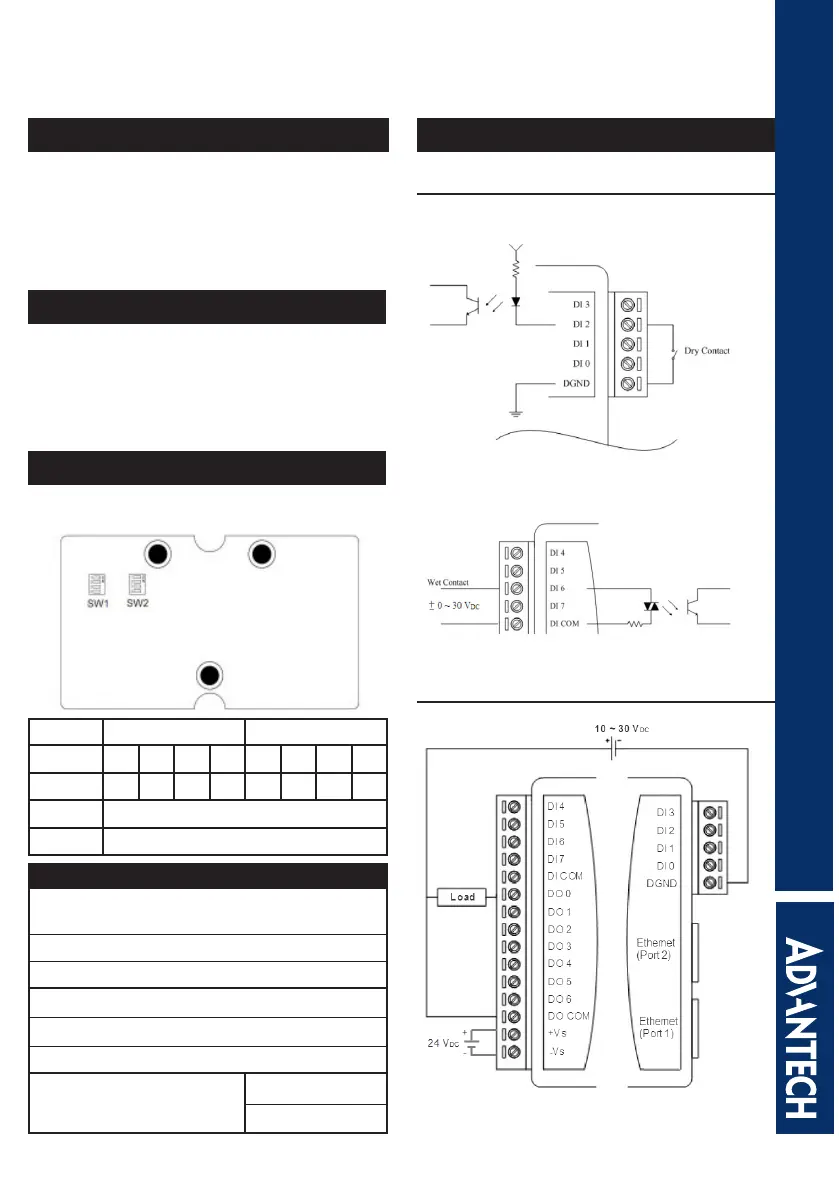

Switch Settings
It mainly presents the switch conguration for Dry Contact
and Wet Contact wiring in Digital Input interface.
Switch SW1 SW2
Position
1 2 3 4 1 2 3 4
DI Channel
Ch3 Ch2 Ch1 Ch0 Ch7 Ch6 Ch5 Ch4
ON
Dry Contact (Default)
OFF
Wet Contact
Input Power Requirements
The ADAM-6200 system is designed for a standard
industrial unregulated 24 V
DC
power supply. For further
applications, it can also accept +10 to +30 V
DC
of power
input, 200mV peak to peak of power ripple, and the
immediate ripple voltage should be maintained between
+10 and +30 V
DC
.
Application Wiring
Isolated Digital Input
Dry Contact
Wet Contact
Isolated Digital Output
Overview
Thank you for purchasing this ADAM-6200 series
module.This is a quick guide to help you deploy the
ADAM-6200 series module in your application eld. It
will include power and application wiring. If you need a
more complicated or specic installation, you could try
to contact ADVANTECH for advanced technical support
or suggestions.
STARTUP MANUAL
