ADAM-6100PN Series User Manual 6
2.3 Wiring & Connections
This section provides basic information on wiring the power supply, I/O units, and net-
work connection.
2.3.1 Power Supply Wiring
Although the ADAM-6100 systems are designed for a standard industrial unregulated
24 V
DC
power supply, they accept any power unit that supplies within the range of
+10 to +30 V
DC
. The power supply ripple must be limited to 200 mV peak-to-peak,
and the immediate ripple voltage should be maintained between +10 and +30 V
DC
.
Screw terminals +Vs and GND are for power supply wiring.

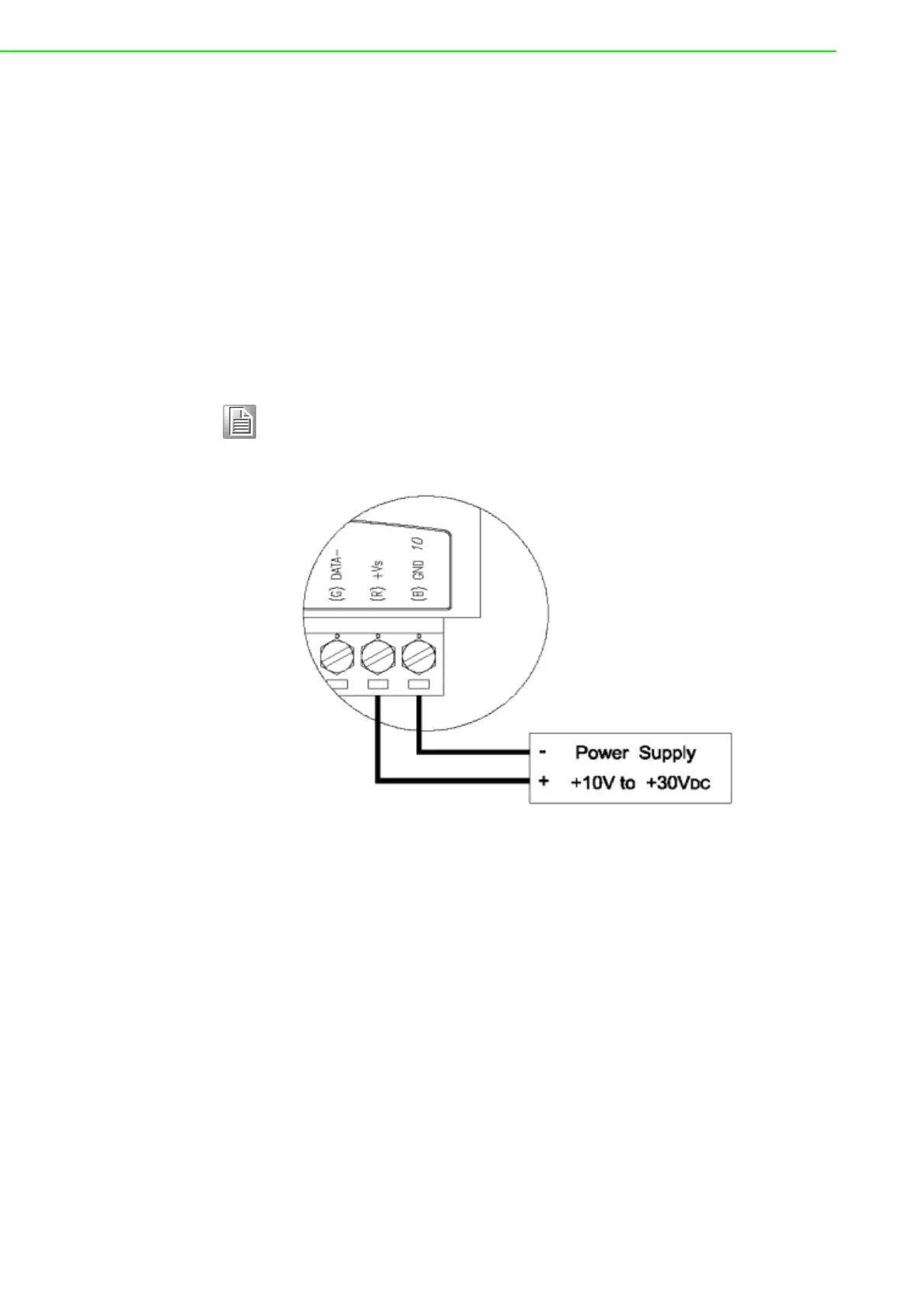

Figure 2.5 ADAM-6100 Module Power Wiring
We advise that the following standard colors (indicated on the modules) be used for
power lines:
+Vs (R) Red
GND (B) Black
Note!
The wires used should be at least 2 mm.
