ADAM-5000 Series User Manual 82

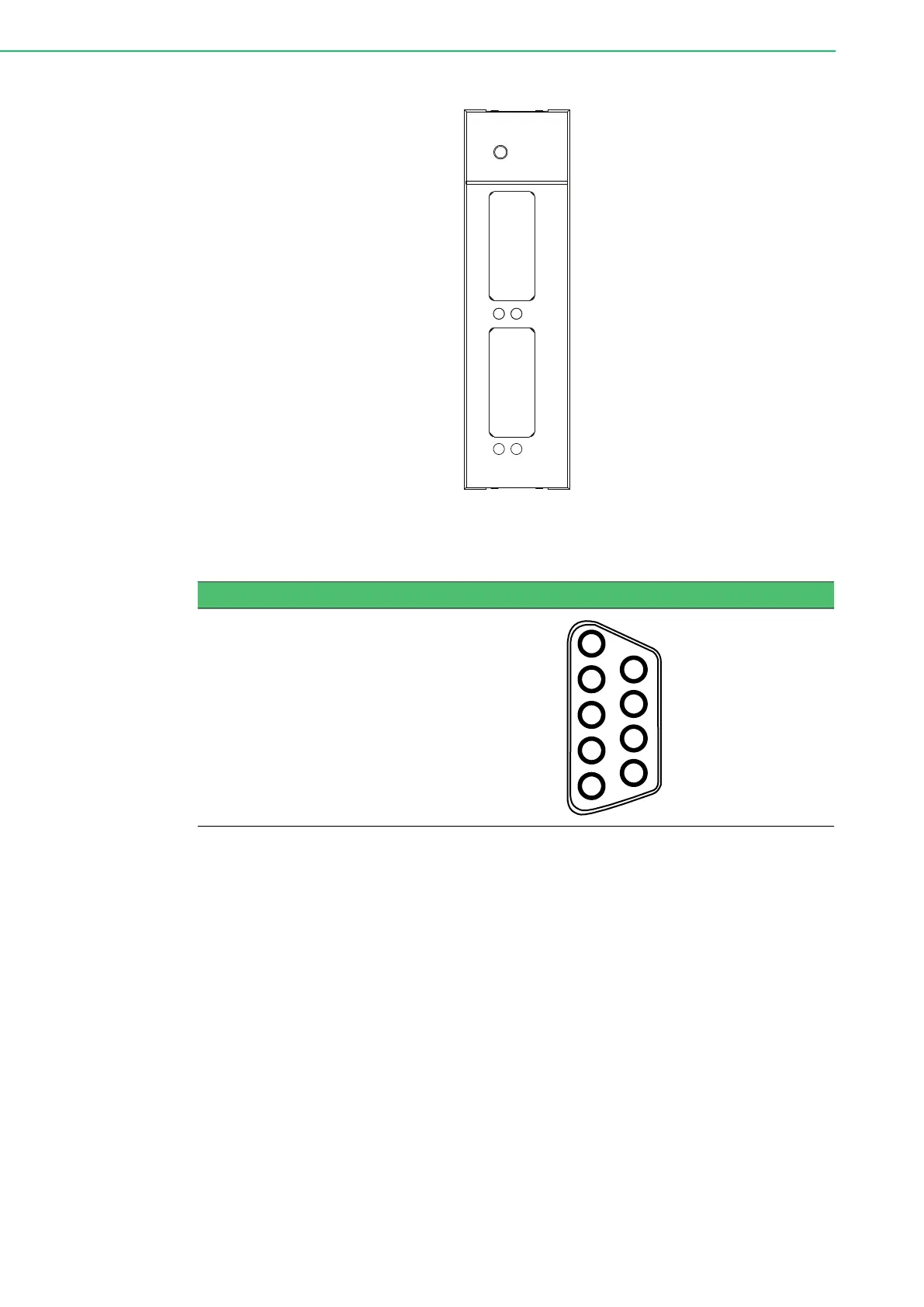

ADAM-5095 Diagram
Figure 7.8 ADAM-5095 Module
CAN Serial Port Pin Assignment
Termination Resistor Settings
Terminal resistors are factory installed to allow for impedance matching.These resis-
tors can be enabled by utilizing SW1 and SW2 for each port (shown below). The
value of the resistor should equal the characteristic impedance of the signal wires
(approximately 120 ohms). The following figure shows resistor placements.
Enable Termination Resistor for CAN1 and CAN2 Ports (SW1 and SW2)
Table 7.10: CAN Serial Port Pin Assignment (CAN1 ~ CAN2)
Pin
CAN Signal
Definition
CAN-L
GND
CAN-H
Tx
Tx
Port2
Rx
Rx
Port1
ADAM-5095
2 CAN
12345
6789
