43 ADAM-5000 Series User Manual
Chapter 4 Digital Input/Output Modules
4.1.7 ADAM-5056(D) 16-ch Digital Output Module w/LED
The ADAM-5056 features sixteen digital output channels. The digital outputs are
open-collector transistor switches that you can control from the ADAM-5000 main
unit. You also can use the switches to control solid-state relays.
ADAM-5056

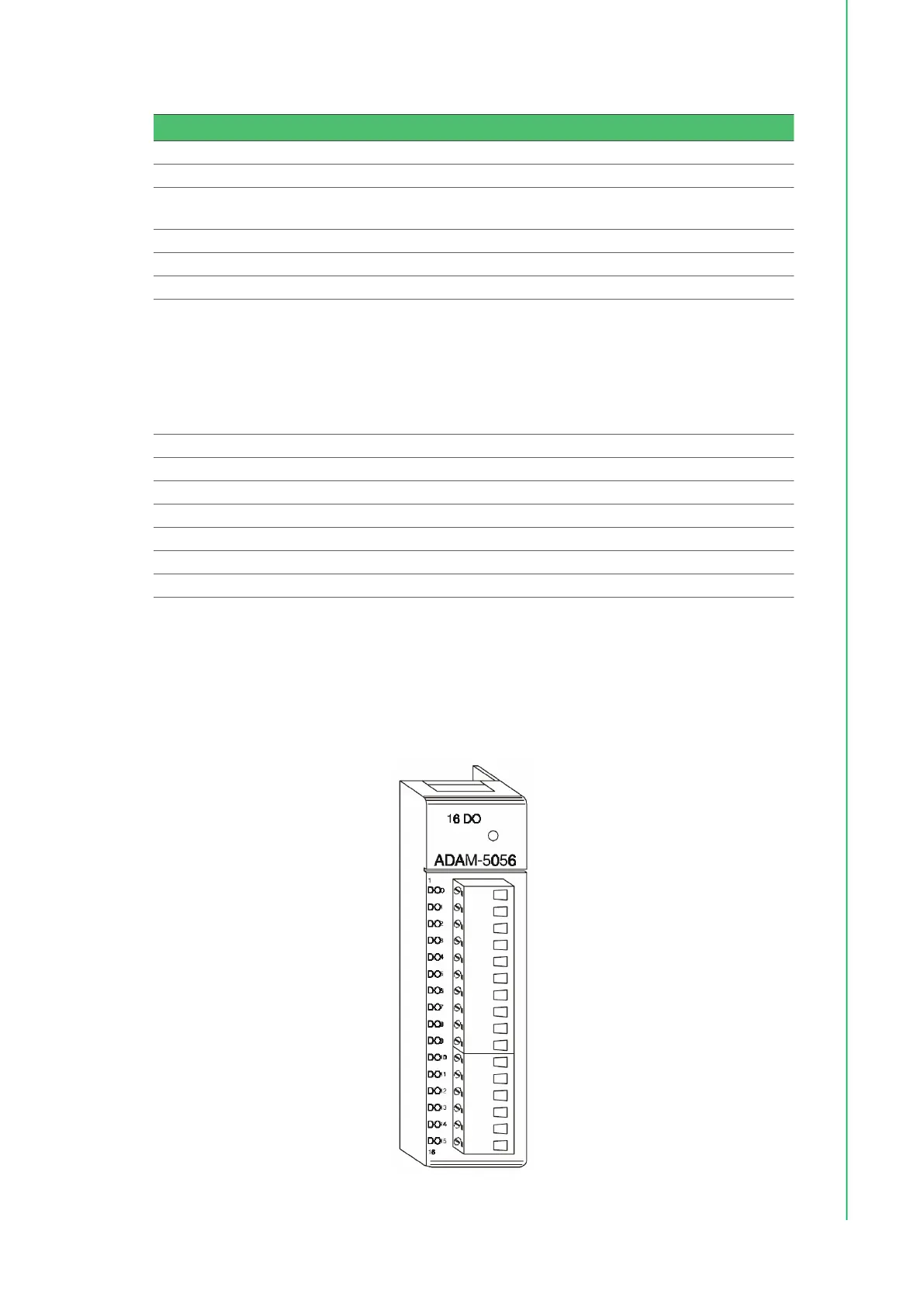

Figure 4.17 ADAM-5056 Module Frontal View
Table 4.6: Technical Specifications of ADAM-5055S
Points 16
Digital Output 8 (8-channel/group)
Open collector to 40 V 200 mA
max
load per channel
Optical Isolation 2500 V
DC
Opto-isolator response time 25 µs
Supply Voltage 5 ~ 40 VDC
Digital Input 8 (4-ch/group)
Dry Contact
Logic Level 0: open
Logic Level 1: close to GND
Wet Contact
Logic Level 0: + 3 V max
Logic Level 1: + 10 to 50 V
Dry Contact & Wet contact Selectable
Optical Isolation 2500 V
DC
Opto-isolator response time 25 µs
Over-voltage Protect 70 V
DC
Power Consumption 0.68 W
LED Indicator On when active
I/O Connector Type 21-pin plug-terminal
