17 ADAM-5000 Series User Manual
Chapter 1 Overview
1.2.6 ADAM-5018 7-ch Thermocouple Input Module
The ADAM-5018 is a 16-bit, 7-channel thermocouple input module that features pro-
grammable input ranges on all channels. It accepts millivolt inputs (±15 mV, ±50 mV,
±100 mV, ±500 mV), voltage inputs (±1 V, ±2.5 V), current input (±20 mA, requires 125
ohms resistor) and thermocouple input (J, K, T, R, S, E, B).
The module forwards the data to the host computer in engineering units (mV, V, mA or
temperature °C). An external CJC on the plug-in terminal is designed for accurate tem-
perature measurement.
ADAM-5018

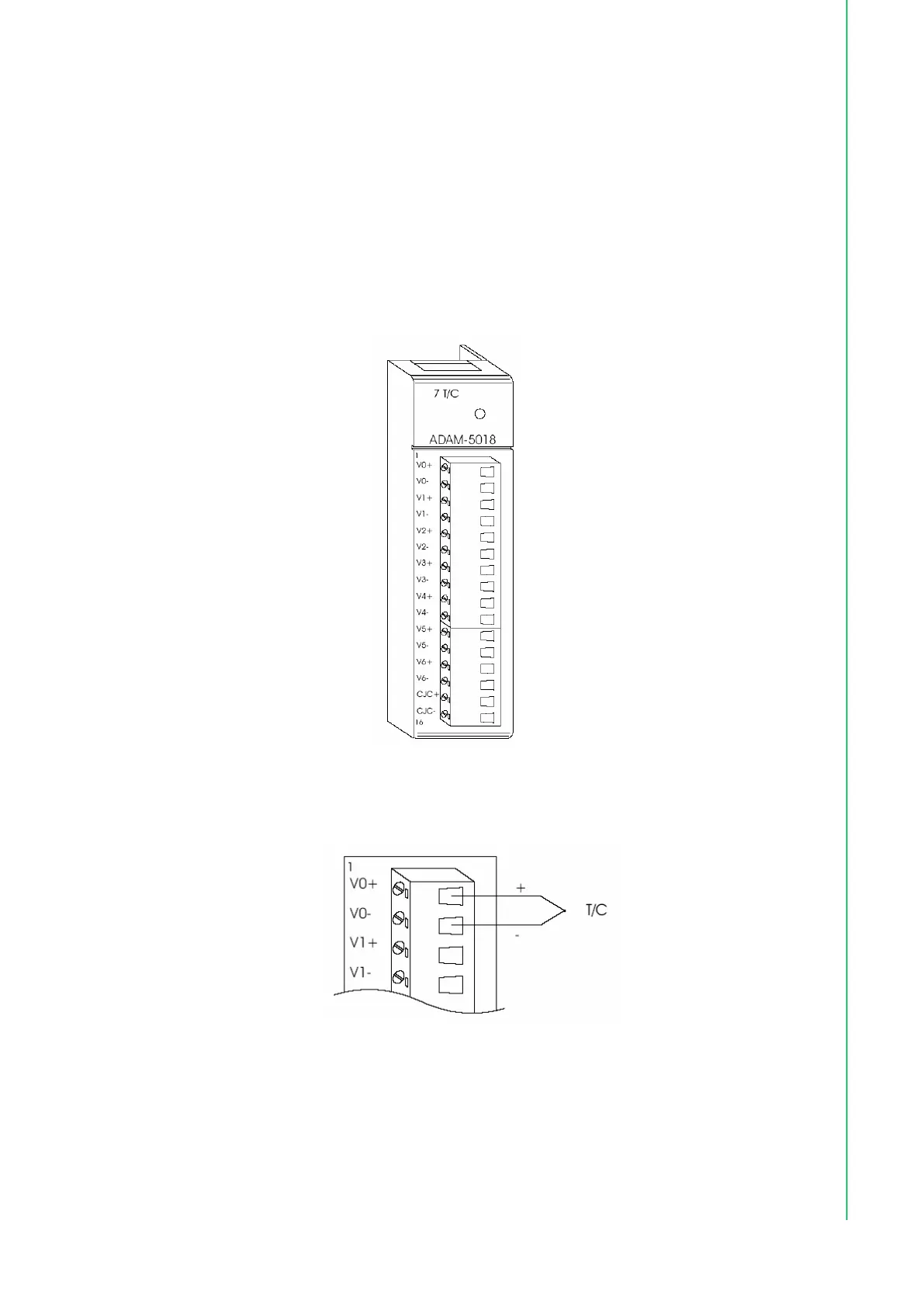

Figure 1.21 ADAM-5018 Module Front View
Application Wiring
Figure 1.22 Thermocouple Input
