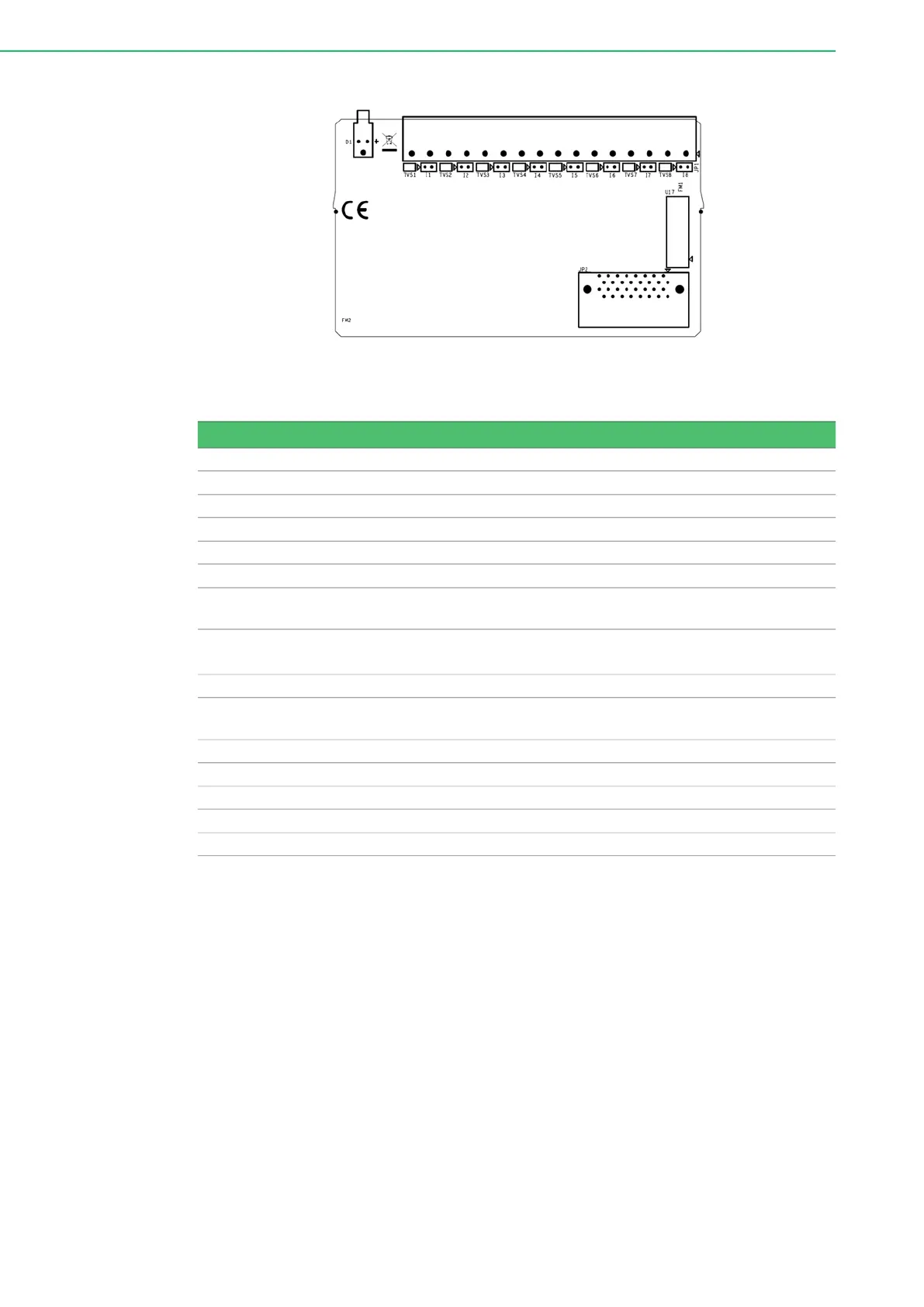

ADAM-5000 Series User Manual 8
Figure 1.7 Locations of Jumpers
Technical Specifications of ADAM-5017
1.2.3 ADAM-5017P 8-ch AI with independent Input
The ADAM-5017P is a 16-bit, 8-channel analog differential input and independent
configuration module. It accepts millivolt inputs (±150mV, ±500mV, 0~150mV,
0~500mV, 0~1V, 0~5V, 0~10V, 0~15V), voltage inputs (±1V, ±5V, ±10V, and ±20V)
and current input (±20 mA, 4~20mA). The module provides data to the host computer
in engineering units (mV, V (supports uni-polar and bipolar) or mA). This module is an
extremely cost-effective solution for industrial measurement and monitoring applica-
tions. Its high common mode provides 200 VDC, protecting the module and peripher-
als from damage due to high input line voltage. Additionally, the module uses analog
multiplexers with active over-voltage protection. The active protection circuitry
assures that signal fidelity is maintained even under fault conditions that would
destroy other multiplexers. This module can withstand an input voltage surge of ±60
V
DC.
Table 1.5: Technical Specifications of ADAM-5017
Analog Input Channels Eight differential
Input Type mV, V, mA
Input Range ± 150 mV, ± 500 mV, ± 1 V, ± 5 V, ± 10 V and ± 20 mA
Isolation Voltage 3000 VDC
Sampling Rate 10 samples/sec (total)
Analog Input Signal Limit 15 V max.
Max. allowable voltage difference
between two connectors in a module
15 V max.
Input Impedance
2M
(voltage input)
120
(current input)
Bandwidth 13.1 Hz @ 50 Hz, 15.72 Hz @ 60 Hz
Accuracy
± 0.1% or better Voltage mode
± 0.2% or better Current mode
Zero Drift ± 1.5 µV/°C
Span Drift ± 25 PPM/°C
CMR @ 50/60 Hz 92 dB min.
Power Requirements + 10 to + 30 VDC (non-regulated)
Power Consumption 1.2 W
