ADAM-5000 Series User Manual 14
1.2.5 ADAM-5017UH 8-ch Ultra High Speed Analog Input Module
The ADAM-5017UH is a 12-bit plus sign bit, 8-channel analog differential input module
that provides programmable input ranges on each channel. It accepts voltage inputs (±10
V and 0-10 V) and current inputs (0-20 mA and 4-20 mA). The module provides data to the
host microprocessor in engineering units (mV, V or mA) or two’s complement format.
Its sampling rate depends on the data format received: up to 200k Hz (total). Space is
reserved for 125-ohm, 0.1%, 10 ppm resistors (See Figure 9). Each input channel has
3000 V
DC
of optical isolation between the outside analog input line and the module,
protecting the module and peripherals from high input line voltages. Additionally, the
module uses analog multiplexers with active overvoltage protection. The active protec-
tion circuitry assures that signal fidelity is maintained even under fault conditions that
would destroy other multiplexers. The analog inputs can withstand a constant 70 Vp-p
input with ±15V supplies. The jumpers of ADAM-5017UH are designed for current input.
ADAM-5017UH

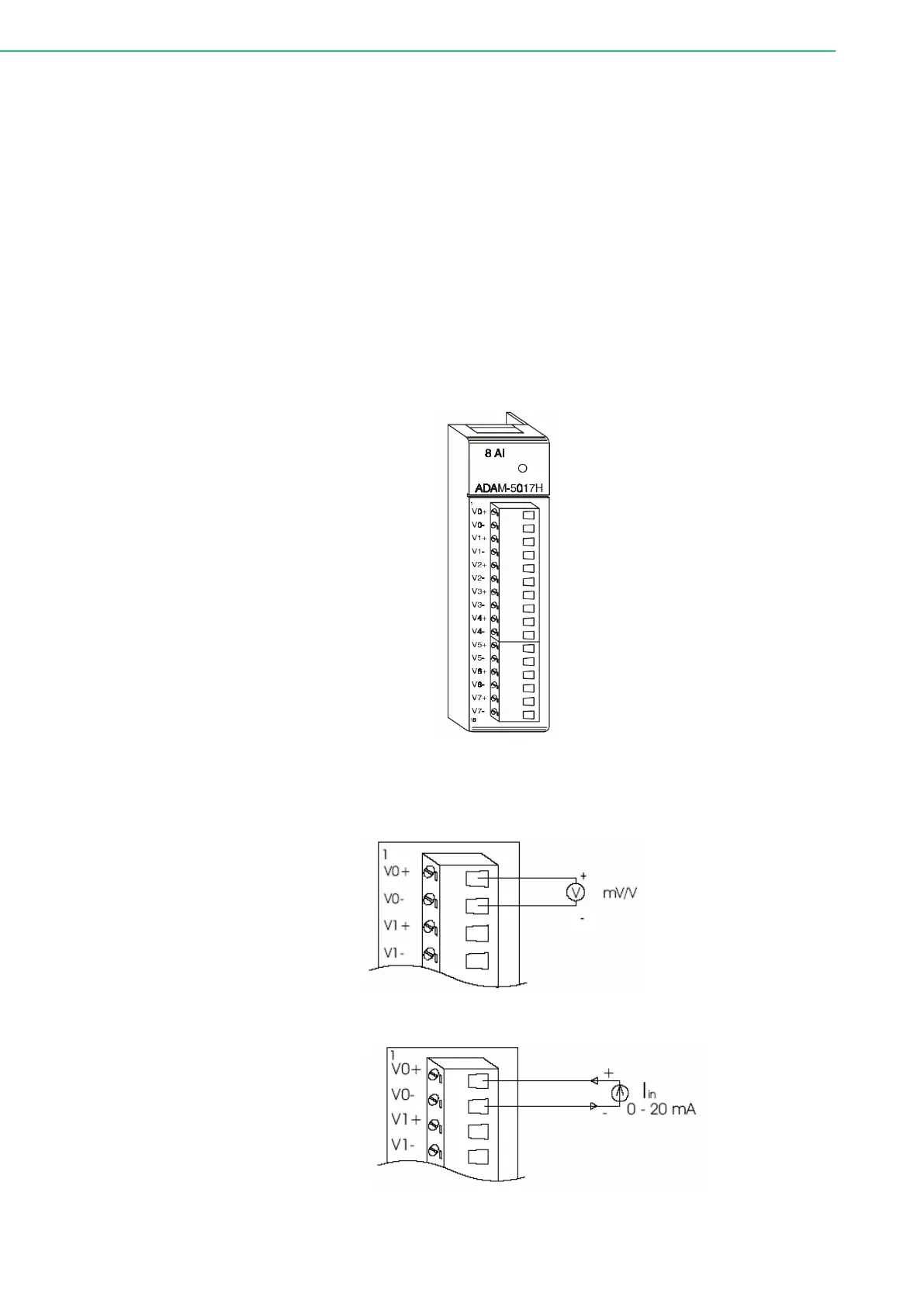

Figure 1.16 ADAM-5017UH Module Front View
Application Wiring
Figure 1.17 Millivolt and Volt Input
Figure 1.18 Process Current Input
