ADAM-5000/TCP Series User Manual 30
This chapter explains how to use Windows Utility to configure the ADAM-5000/TCP
Series system for various applications. Users can learn the hardware connection,
software installation, communication setting and every procedure for system configu-
ration from these sections.
5.1 System Hardware Configuration
As we mentioned in chapter 3-1, you will need the following items to complete your
system hardware configuration.
System Requirement
Host computer
– IBM PC compatible computer with 486 CPU (Pentium is recommended)
– Microsoft XP/7 32, 64-bits or higher versions
– At least 32 MB RAM
– 20 MB of hard disk space available
– VGA color monitor
– 2x or higher speed CD-ROM
– Mouse or other pointing devices
– 10 or 100 Mbps Ethernet Card
10 or 100 Mbps Ethernet switch (at least 2 ports)
Two Ethernet Cable with RJ-45 connector
Power supply for ADAM-5000/TCP Series (+10 to +30 V unregulated) Make
sure to prepare all of the items above, then connect the power and network wir-
ing as figure 5-1.

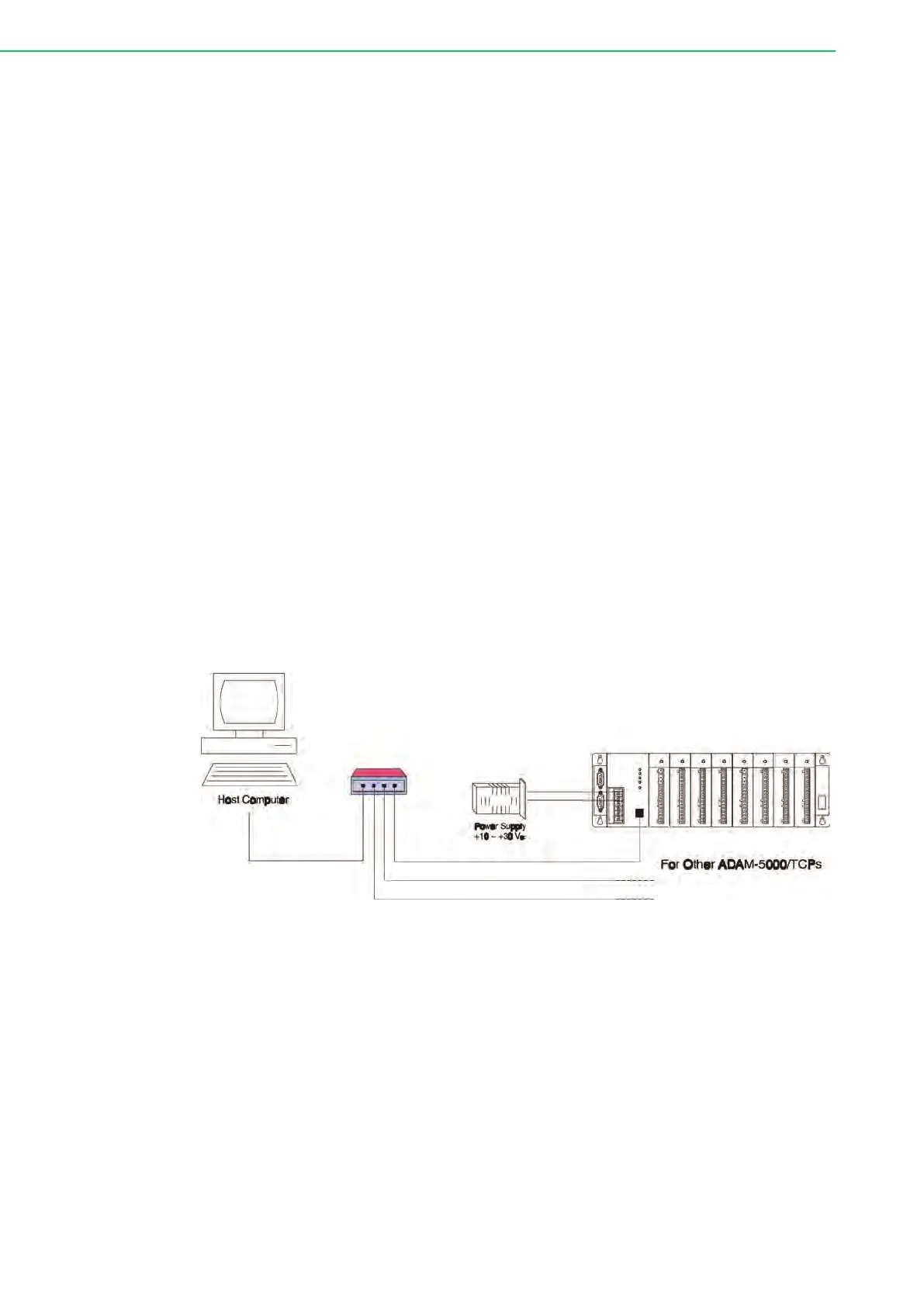

Figure 5.1 Hardware Configuration
5.2 Install Utility Software on Host PC
Please go to our web site to get the latest version of AdamApax .NET Utility.
Click AdamApax .NET Utility icon to execute the setup program. There will be a
shortcut of the Utility executive program on Windows’ desktop after completing the
installation.
5.3 AdamApax .NET Utility Overview
The Windows Utility offers a graphical interface that helps you configure the ADAM-
5000/TCP Series main unit and I/O modules. It is also very convenient to test and
