ADAM-5000/TCP Series User Manual 26
3.5 Assigning address for I/O Modules
Based on the Modbus standard, the addresses of the I/O modules you place into the
ADAM-5000/TCP series system are defined by a simple rule. Refer to figures 3-9 to
map the I/O address.

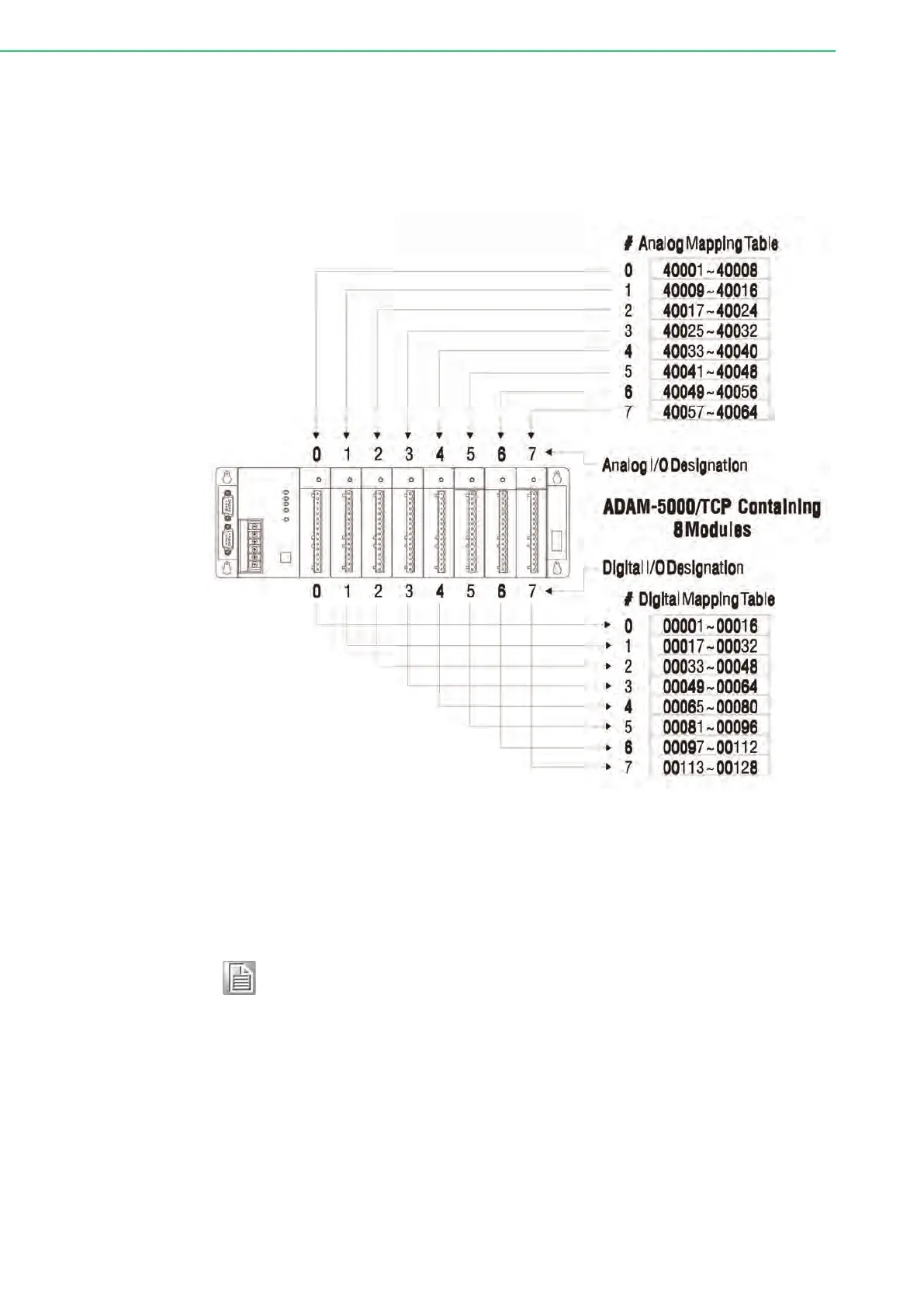

Figure 3.10 I/O Modules Address Mapping
For example, if there is a ADAM-5024 (4-channel AO Module) in slot 2, the address
of this module should be 40017~40024.
Note! ADAM-5080 is a special 4-channel counter module. The data type is
designed as “unsigned long”. When you insert an ADAM-5080 in slot 0,
the address should be 40001, 40003, 40005 and 40007.
