3.4 Wiring and Connections
This section provides basic information on wiring the power supply, I/O units, and net-
work connection.
3.4.1 Power supply wiring
Although the ADAM-5000/ECAT systems are designed for a standard industrial
unregulated 24 V DC power supply, they accept any power unit that supplies within
the range of +10 to +30 VDC. The power supply ripple must be limited to 200 mV
peak-to-peak, and the immediate ripple voltage should be maintained between +10
and +30 VDC. Screw terminals +Vs and GND are for power supply wiring.

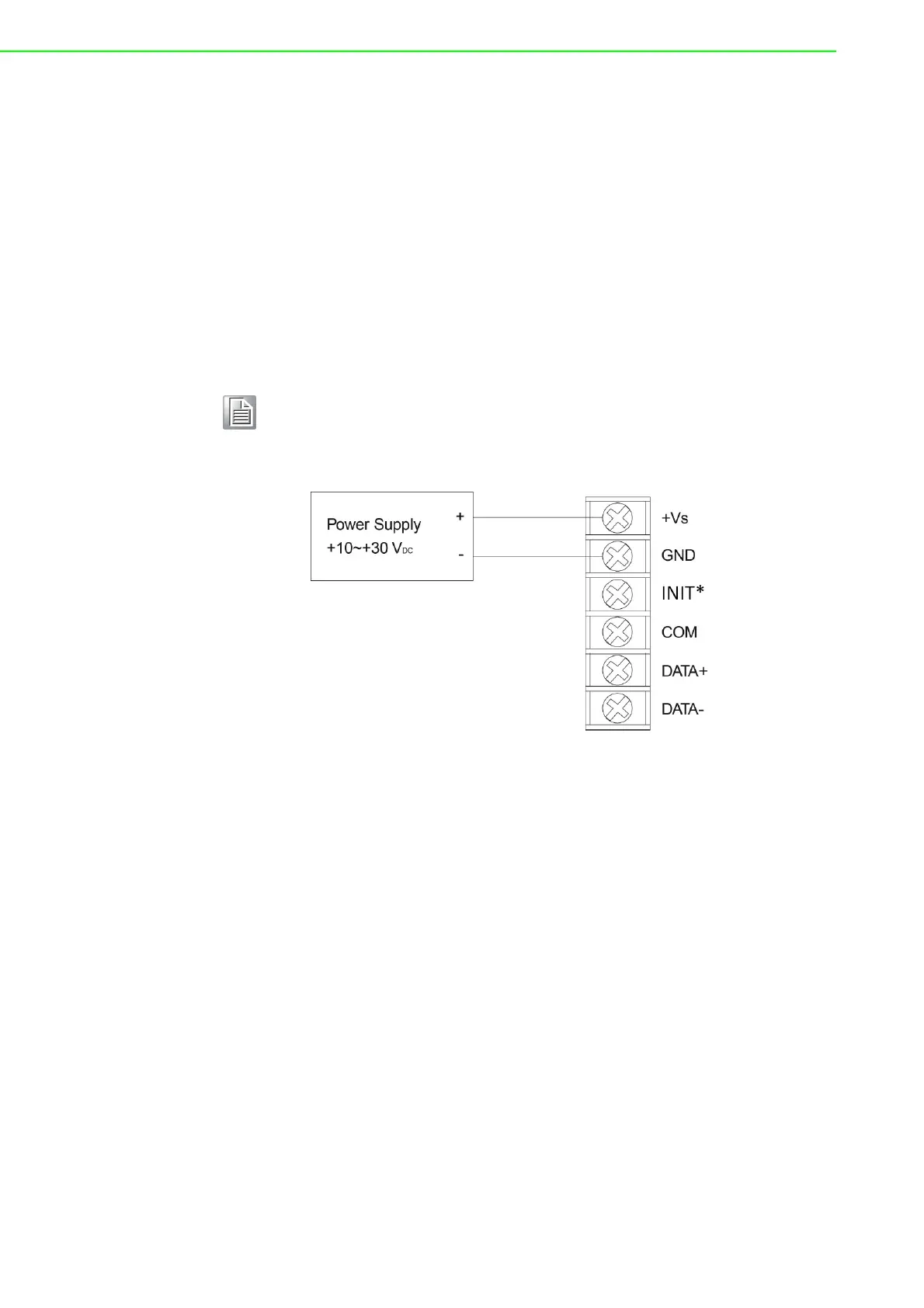

Figure 3.6 ADAM-5000/ECAT power wiring
Note! The wires used should be sized at least 2 mm.
33
