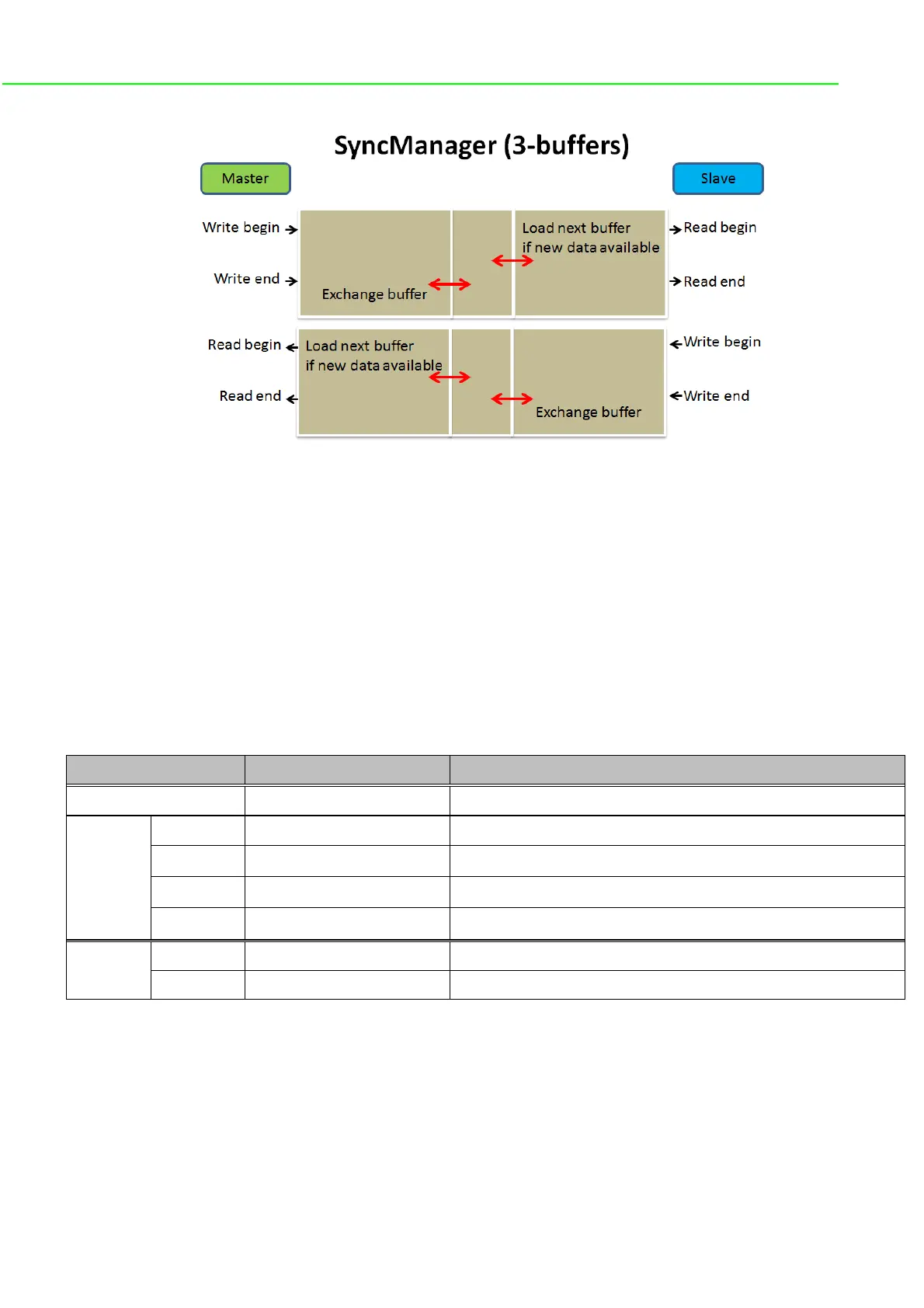

Figure 1.11 SyncManager 3-Buffer-Mode
1.2.5 Completed set of I/O modules for total solutions
The ADAM-5000/ECAT Series uses a convenient backplane system. Advantech’s
complete line of ADAM-5000 EtherCAT series modules integrates with the
ADAM-5000/ECAT to support your applications. Full ranges of digital module
supports 10 to 30 VDC input and outputs. A set of analog modules provide 12-bit
resolution and programmable input and output (including bipolar) signal ranges. For
details, refer to Appendix IO Modules.
Type New Description
Main Unit ADAM-5000/ECAT EtherCAT IO Coupler
Digital
Input ADAM-E5051S/53S 16/32-ch Isolated Digital Input Module
Output ADAM-E5056S/SO 16-ch Sink/Source Type Isolated Digital Output Module
Relay ADAM-E5057S /69 32/8-ch Relay Type Isolated Digital Output Module
Counter ADAM-E5082 2-ch High Speed Counter/Frequency Module
Analog
Input ADAM-E5017UH 8-ch Ultra High Speed Analog Input Module
Output ADAM-E5024H 4-ch High Speed Analog Output Module
Table 1.1 ADAM-5000/ECAT I/O modules support list
ADAM-5000/ECAT is designed with a high I/O capacity and supports all types of digital
and analog I/O modules. Providing four slots for any mixed modules, this slave IO
system handles up to 128 I/O points. ADAM-5000/ECAT supports
ADAM-5000/ECAT not only has a higher I/O capacity, but it also has a smarter
16
