ADAM-4100 User Manual 32

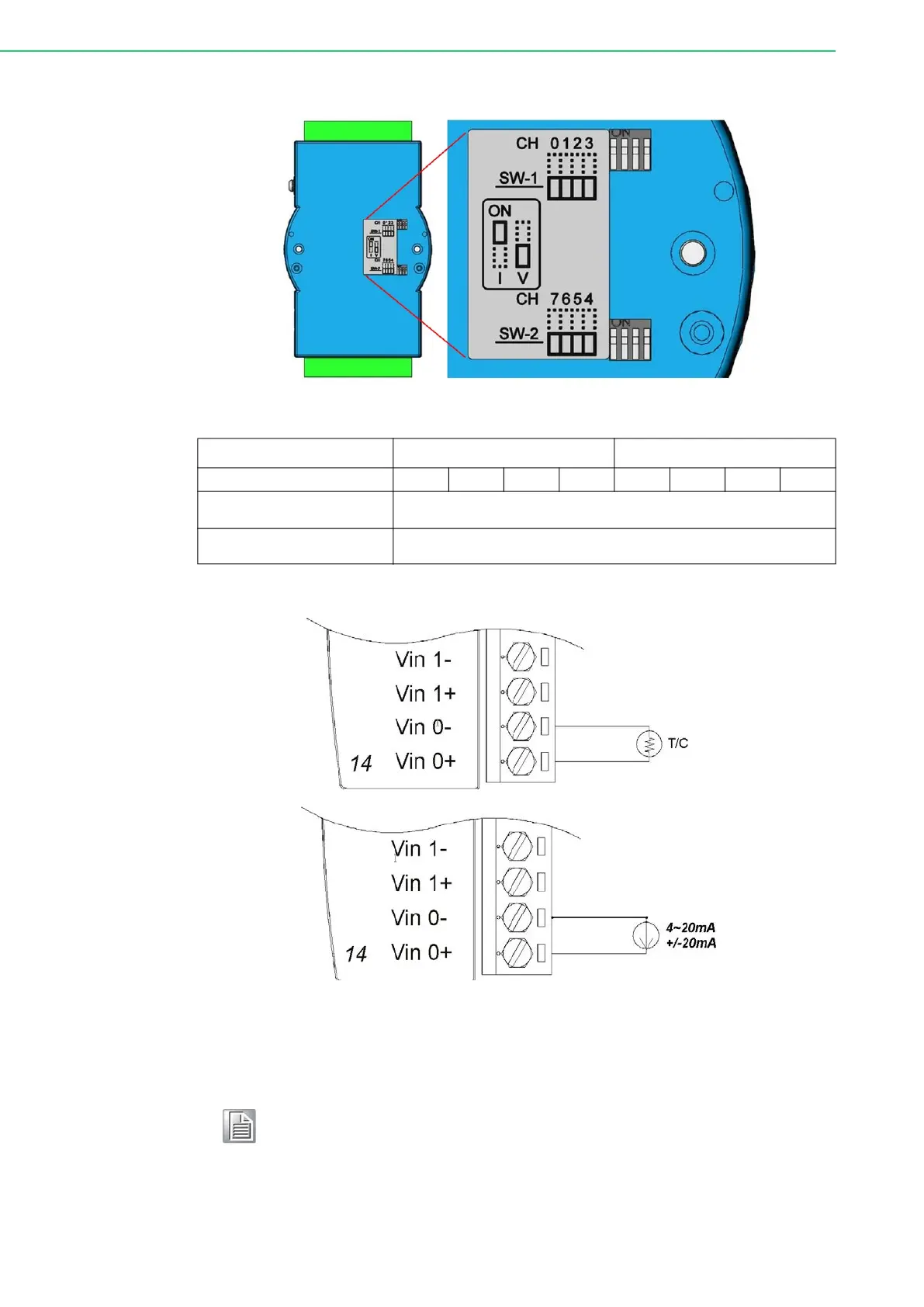

Figure 3.9 ADAM-4118-B and ADAM-4118-C
Application Wiring
Figure 3.10 ADAM-4118 Wiring Application
*A resistor is built into the ADAM-4118 for the current input
Switch SW1 SW2
Analog input channel CH0 CH1 CH2 CH3 CH4 CH5 CH6 CH7
Switch ON Current input mode
Switch OFF (default) Thermocouple (Voltage) input mode
Note! 1. Because the CJC sensor of the ADAM-4118 is located on the side of
Channels 0 ~ 4, the measurement will have a difference of ±1 °C
between Channels 0 ~ 4 and Channels 5 ~ 7.
2. The ADAM-4118 input range accuracy for thermocouple mode is
shown in the following table:
