21 ACP-4020 User Manual/ 用户手册
Chapter 2 System Setup 系统安装 系統安裝

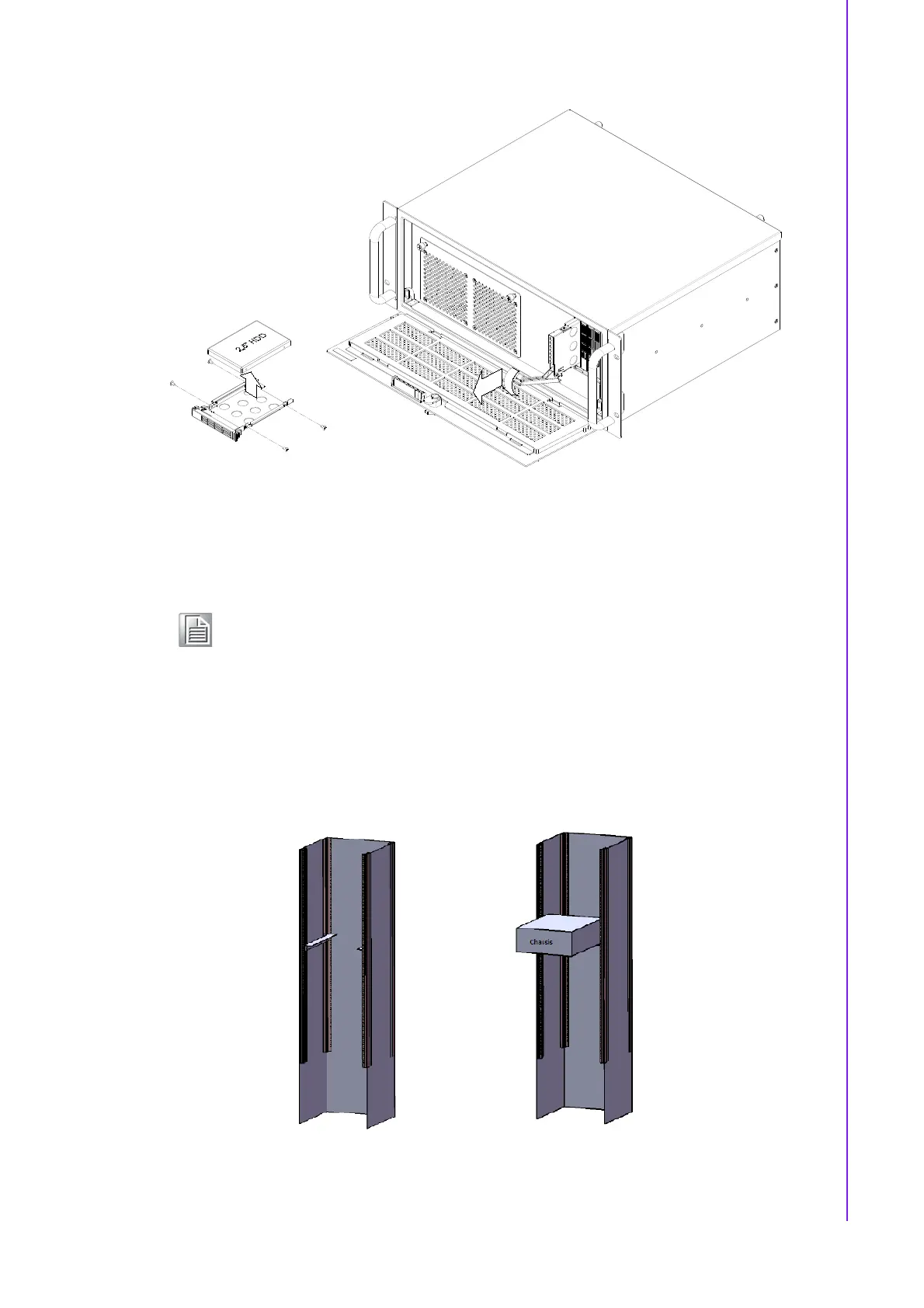

Figure 2.14 Pushing down the latch & removing
the mobile tray to install a 2.5" disk drive
/ 向下推锁闩 & 移除移动托架并安装 2.5” 磁盘驱动器
/ 向下推鎖閂 & 移除移動托架並安裝 2.5” 磁碟機
2.7 Slide Rail or Pallet/ 滑轨或层板 / 滑軌或層板
Figure 2.15 Install the chassis in the cabinet with the slide rail or pallet supplied
/ 请务必使用机柜里的层板或滑轨 , 确实将设备稳妥的安装固定在机柜内 / 請務必使
用機櫃裡的層板或滑軌 , 確實將設備穩妥的安裝固定在機櫃內
Note! The optional IDT-3120E mobile rack does not support SAS HDD and
can accept only for disk drive with maximum thickness of 9.6mm.
可选 IDT-3120E 移动支架不支持 SAS HDD，且所能支持的磁盘驱动器的最
大厚度为 9.6 mm。
可選 IDT-3120E 移動支架不支持 SAS HDD，且所能支持的磁碟機的最大厚
度為 9.6 mm。
