ACP-4010 User Manual 16
3.2 The Rear Panel
For the backplane version, the rear plate includes 15-slot I/O brackets and a
reserved 9-pin D-SUB opening. (see Figure 3.3). For the motherboard version, the
rear plate includes 7-slot I/O brackets, 5 reserved 9-pin D-SUB openings and a 68-
pin SCSI opening. (see Figure 3.4).

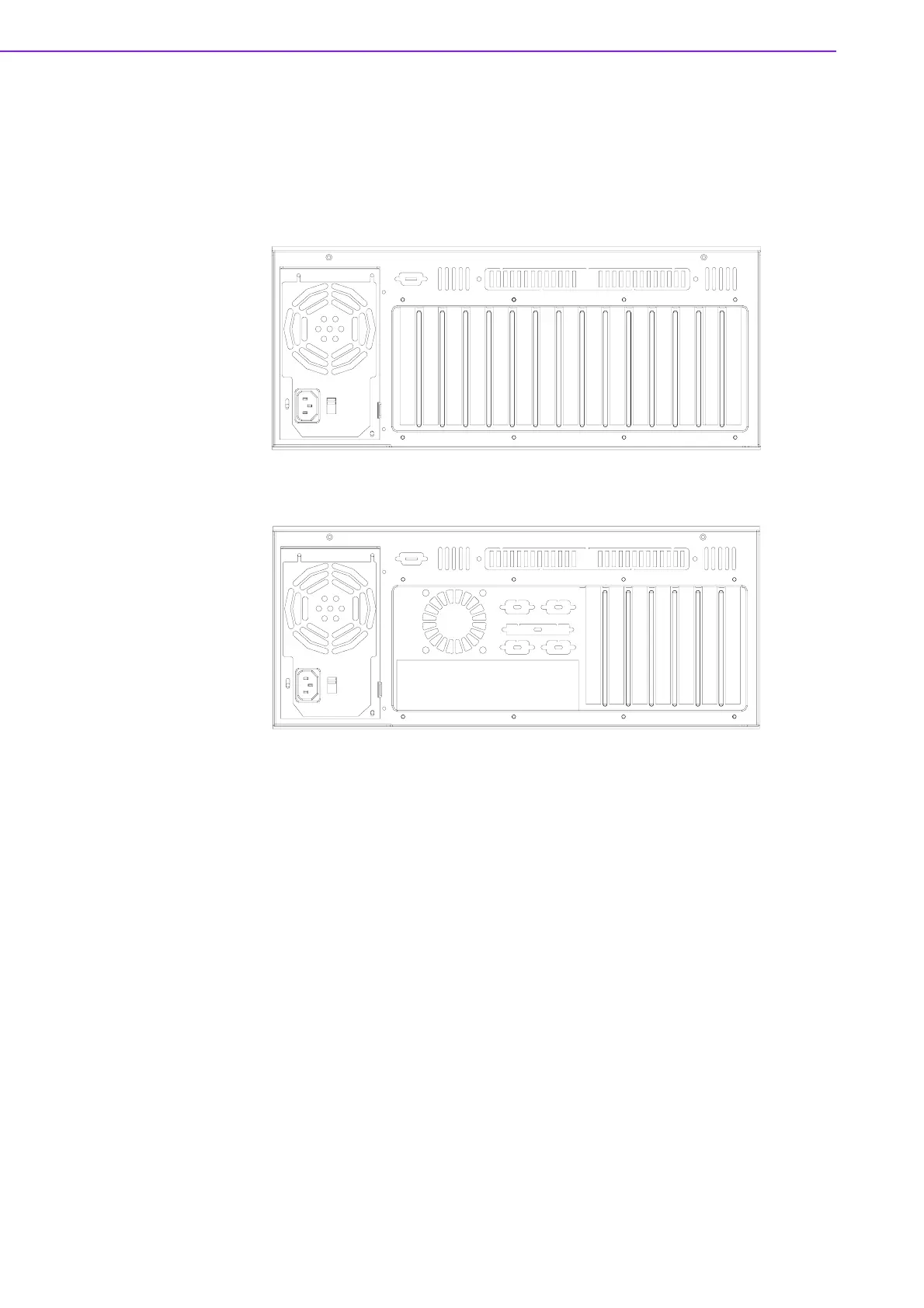

Figure 3.3 Rear panel of backplane version
Figure 3.4 Rear panel of the motherboard version
There is a ground screw with a washer located on the lower right of the rear panel.
This will protect the system in case of electrical leakage.
